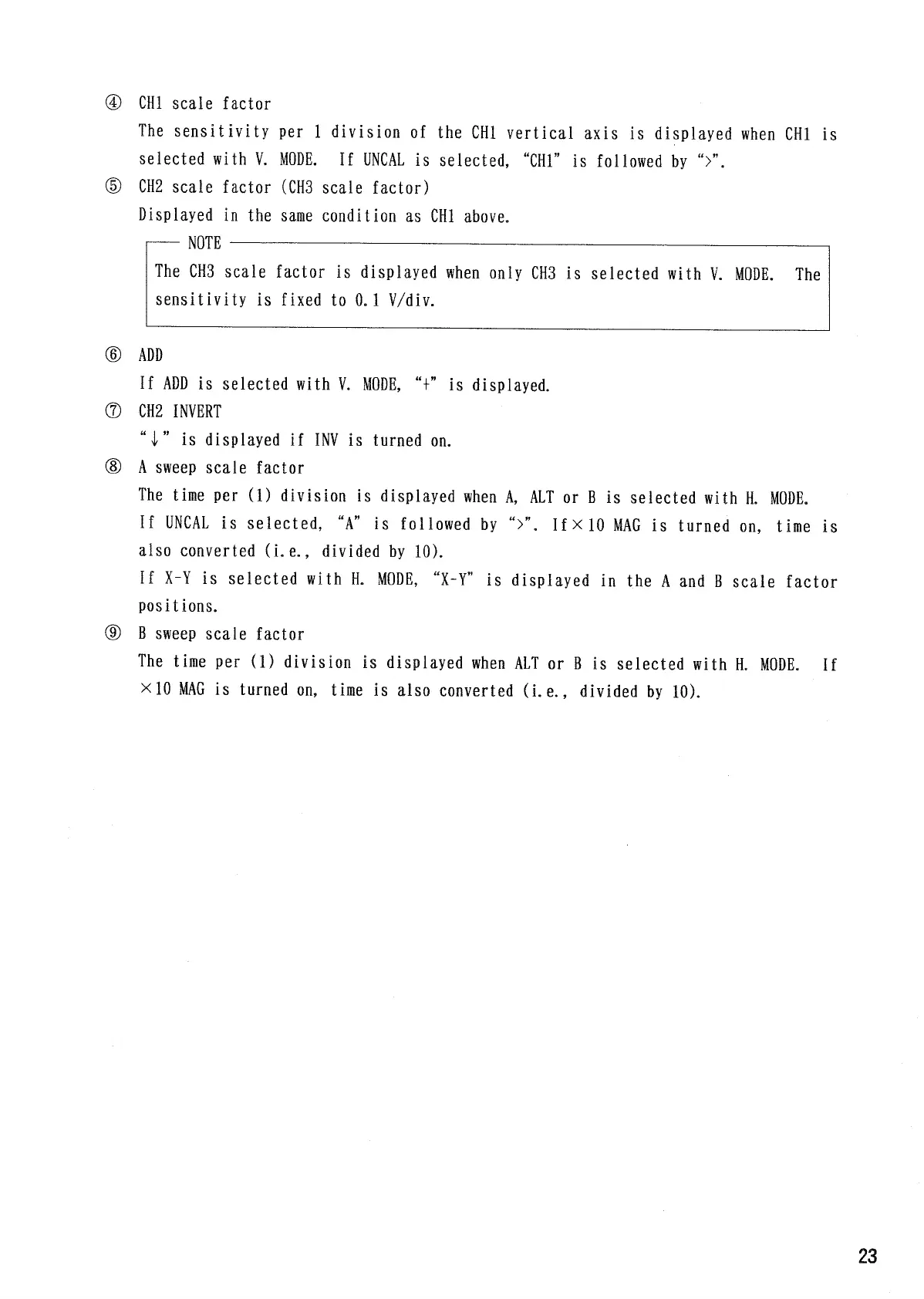

© CHI scale factor
The sensitivity per 1 division of the CHI vertical axis is displayed when CHI is
selected with V. MODE. If UNCAL is selected, "CHI" is followed by ">".
(D CH2 scale factor (CH3 scale factor)
Displayed in the same condition as CHI above.
The CH3 scale factor Is displayed when only CHS Is selected with V. MODE. The
sensitivity is fixed to 0.1 V/div.
® ADD
If ADD is selected with V. MODE, V Is displayed.
© CH2 INVERT
" 1" is displayed if INV is turned on.
® A sweep scale factor
The time per (1) division is displayed when A, ALT or B is selected with H. MODE.
If UNCAL is selected, "A" is followed by ">". If x 10 MAG is turned on, time is
also converted (i.e., divided by 10).
If X-Y is selected with H. MODE, "X-Y" is displayed in the A and B scale factor
positions.
© B sweep scale factor
The time per (1) division is displayed when ALT or B is selected with H. MODE. If
x10 MAG is turned on, time is also converted (i.e., divided by 10).
23
NOTE
