5
2

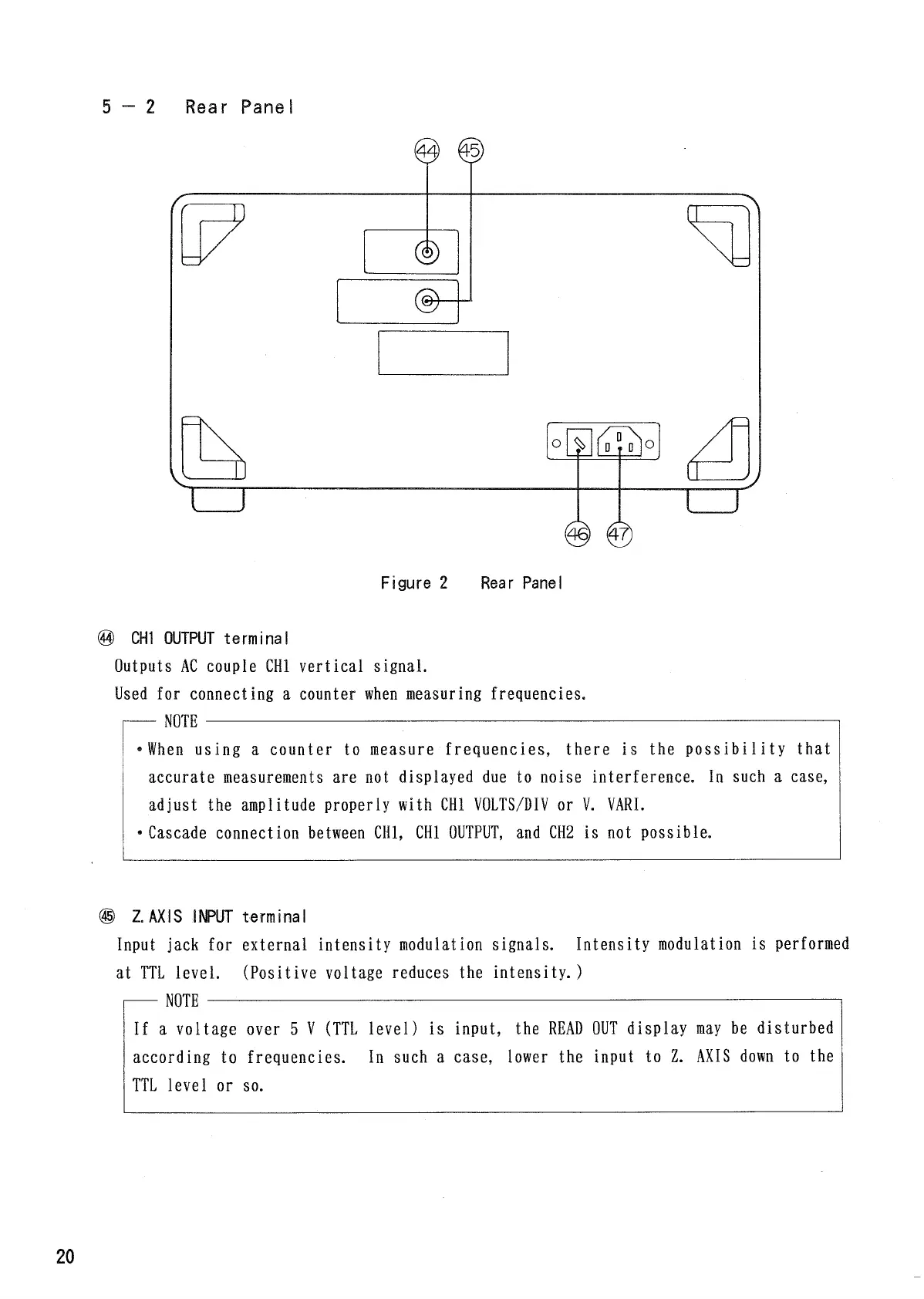

Rear Panel
Figure
2
Rear Panel
©
CH1
OUTPUT
terminal
Outputs
AC
couple
CHI
vertical
signal.
Used
for
connecting
a
counter
when
measuring
frequencies.
I
NOTE :
———
:
; -
When
using
a
counter
to
measure
frequencies, there
is the
possibi1ity
that
accurate
measurements
are not
displayed
due to
noise
interference.
In
such
a
case,
adjust
the
amplitude
properly with
CHI
VOLTS/DIV
or V.
VARI.
Cascade connection
between CHI,
CHI OUTPUT, and CH2
is
not
possible.
®
Z.
AXIS
INPUT
terminal
Input
jack
for
external
intensity
modulation
signals.
Intensity
modulation
is
performed
at
TTL
level.
(Positive
voltage
reduces
the
intensity.
)
I
NOTE ^ 1
If
a
voltage
over
5 V (TTL
level)
is
input,
the READ OUT
display
may be
disturbed
according
to
frequencies.
In
such
a
case,
lower
the
input
to Z.
AXIS
down to the
TTL
level
or so.
20
