Kenwood CS-5200 Series User Manual

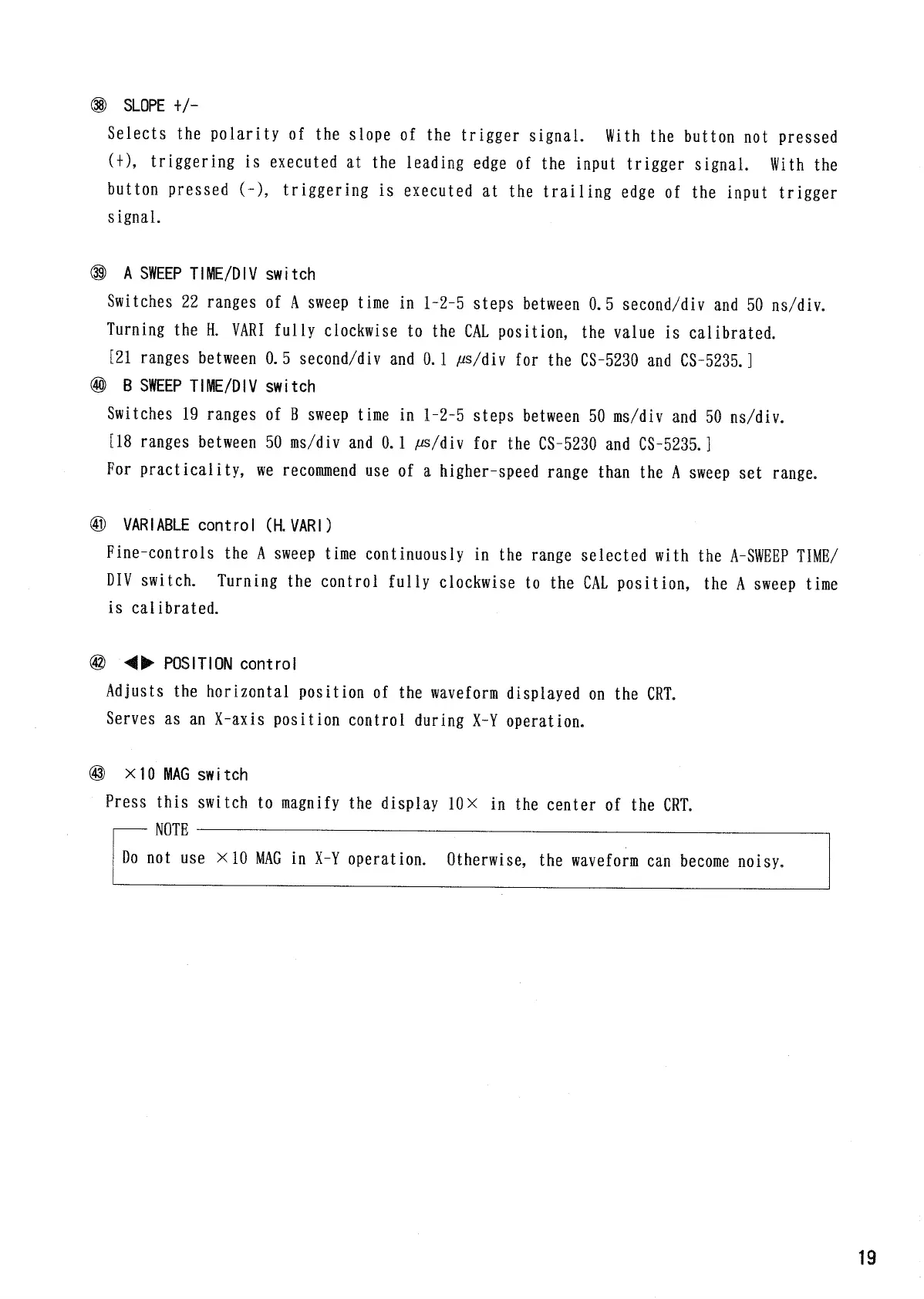

® SLOPE +/-
Selects the polarity of the slope of the trigger signal. With the button not pressed
(+), triggering is executed at the leading edge of the Input trigger signal. With the
button pressed (-)» triggering Is executed at the trailing edge of the Input trigger
signal.
® A SWEEP TIME/DIV switch
Switches 22 ranges of A sweep time in 1-2-5 steps between 0. 5 second/div and 50 ns/div.
Turning the H. VARI fully clockwise to the CAL position, the value is calibrated.
[21 ranges between 0. 5 second/div and 0.1 /is/div for the CS-5230 and CS-5235. ]
© B SWEEP TIME/DIV switch
Switches 19 ranges of B sweep time in 1-2-5 steps between 50 ms/div and 50 ns/div.
[18 ranges between 50 ms/div and 0.1 jus/ih for the CS-5230 and CS-5235. ]
For practicality, we recommend use of a higher-speed range than the A sweep set range.
© VARIABLE control (H. VARI)
Fine-controls the A sweep time continuously in the range selected with the A-SWEEP TIME/
DIV switch. Turning the control fully clockwise to the CAL position, the A sweep time
is calibrated.
® POSITION control
Adjusts the horizontal position of the waveform displayed on the CRT.
Serves as an X-axis position control during X-Y operation.
® X10 MAG switch
Press this switch to magnify the display 10x in the center of the CRT.
I NOTE 1
Do not use x10 MAG in X-Y operation. Otherwise, the waveform can become noisy.
19
