® T. MODE switch
Selects the triggering mode.
AUTO : Sweep operation is executed according to the trigger signal. Operation runs
free and the trace line appears if there is no trigger signal.
NORM : Sweep operation is executed according to the trigger signal. Different from
AUTO, the trace line does not appear if there is no trigger signal.
FIX : Sweep operation is executed according to the center of the amplitude of a
signal selected with the SOURCE switch, which is used as the trigger point.
In this mode, the trigger level need not be adjusted.
SINGLE : Selects single sweep mode.
RESET : Sets the oscilloscope for triggering in the single sweep mode.
® READY indicator
Shows that the oscilloscope is ready for triggering in the single sweep mode. It lights
by resetting T. MODE and extinguishes when sweep is completed.
® LEVEL control
Controls the trigger level. Specify at which point of the trigger signal slope to
trigger and to start sweep.

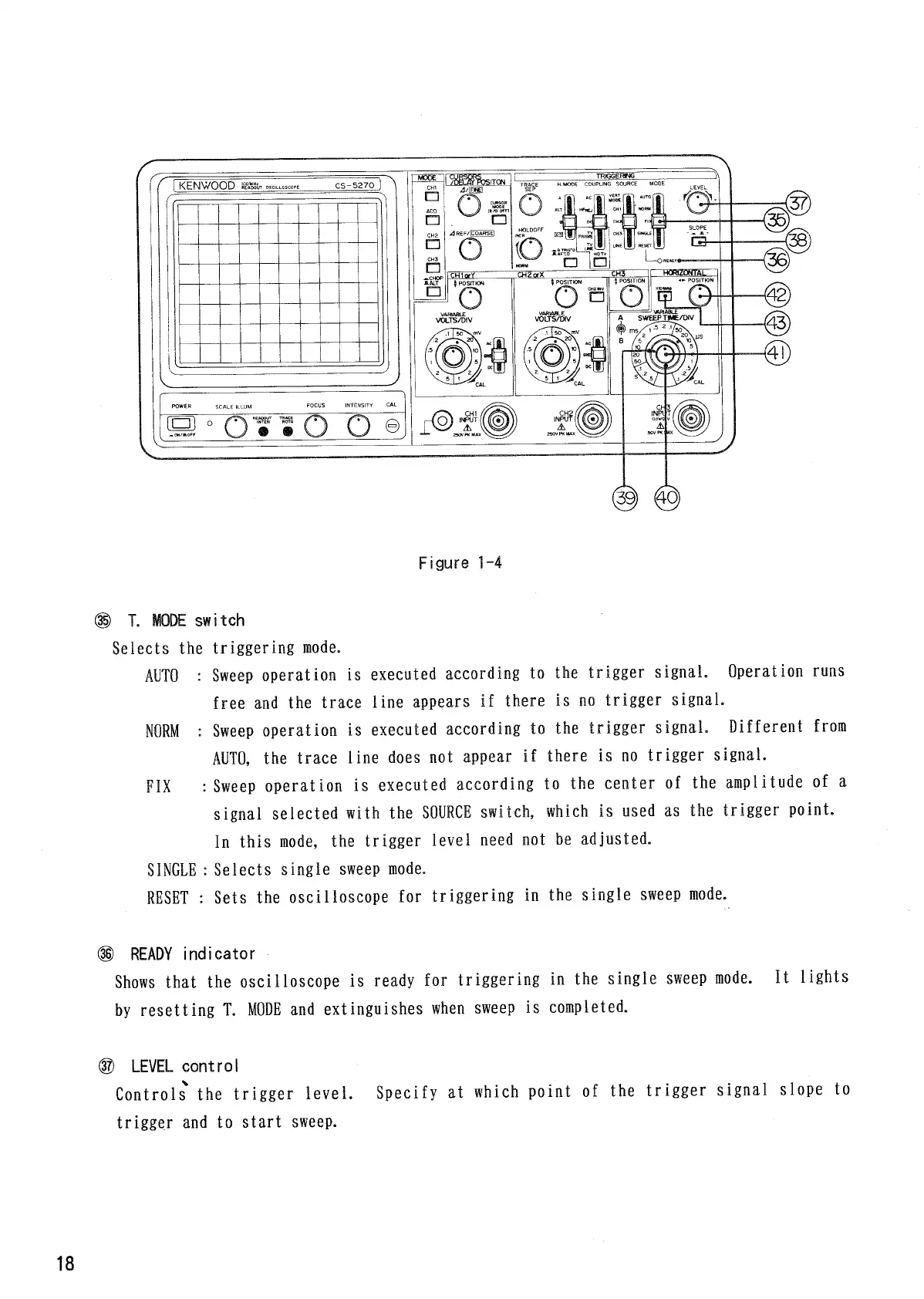

Figure 1-4
18
