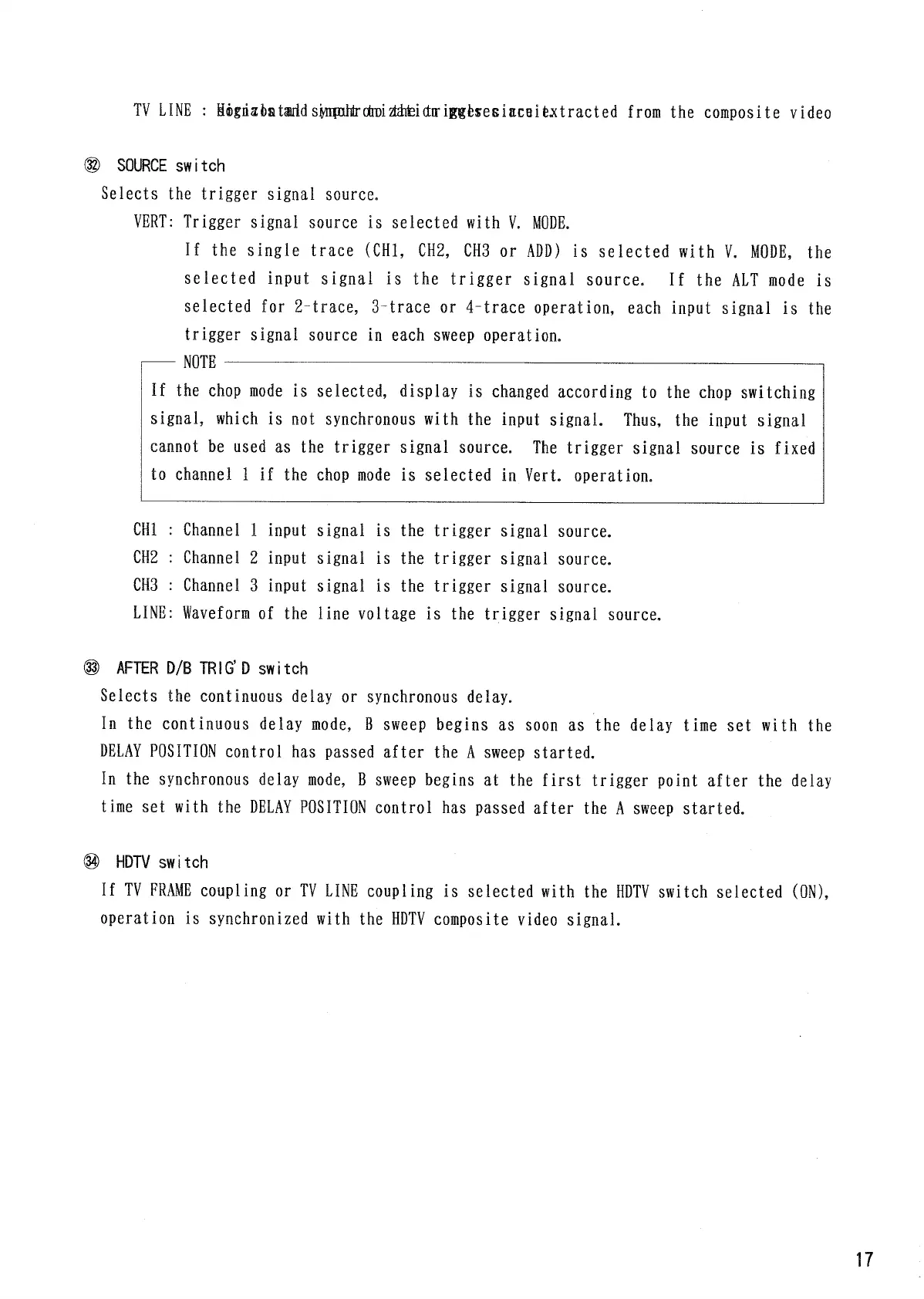

TV LIME : Higriabataiid si^nnfBLHrotroizlditeictnriEgfesresiaceifextracted from the composite video
@ SOURCE switch
Selects the trigger signal source.
VERT: Trigger signal source Is selected with V. MODE.
If the single trace (CHI, CH2, CHS or ADD) Is selected with V. MODE, the
selected Input signal Is the trigger signal source. If the ALT mode Is
selected for 2-trace, 3-trace or 4-trace operation, each Input signal is the
trigger signal source in each sweep operation.
CHI : Channel 1 input signal is the trigger signal source.
CH2 : Channel 2 input signal is the trigger signal source.
CH3 : Channel 3 input signal is the trigger signal source.
LINE: Waveform of the line voltage is the trigger signal source.
® AFTER D/B TRIG'D switch
Selects the continuous delay or synchronous delay.
In the continuous delay mode, B sweep begins as soon as the delay time set with the
DELAY POSITION control has passed after the A sweep started.
In the synchronous delay mode, B sweep begins at the first trigger point after the delay
time set with the DELAY POSITION control has passed after the A sweep started.
@ HDTV switch
If TV FRAME coupling or TV LINE coupling is selected with the HDTV switch selected (ON),
operation is synchronized with the HDTV composite video signal.
NOTE
If the chop mode is selected, display is changed according to the chop switching
signal, which is not synchronous with the input signal. Thus, the input signal
cannot be used as the trigger signal source. The trigger signal source is fixed
to channel 1 if the chop mode is selected in Vert, operation.
17
