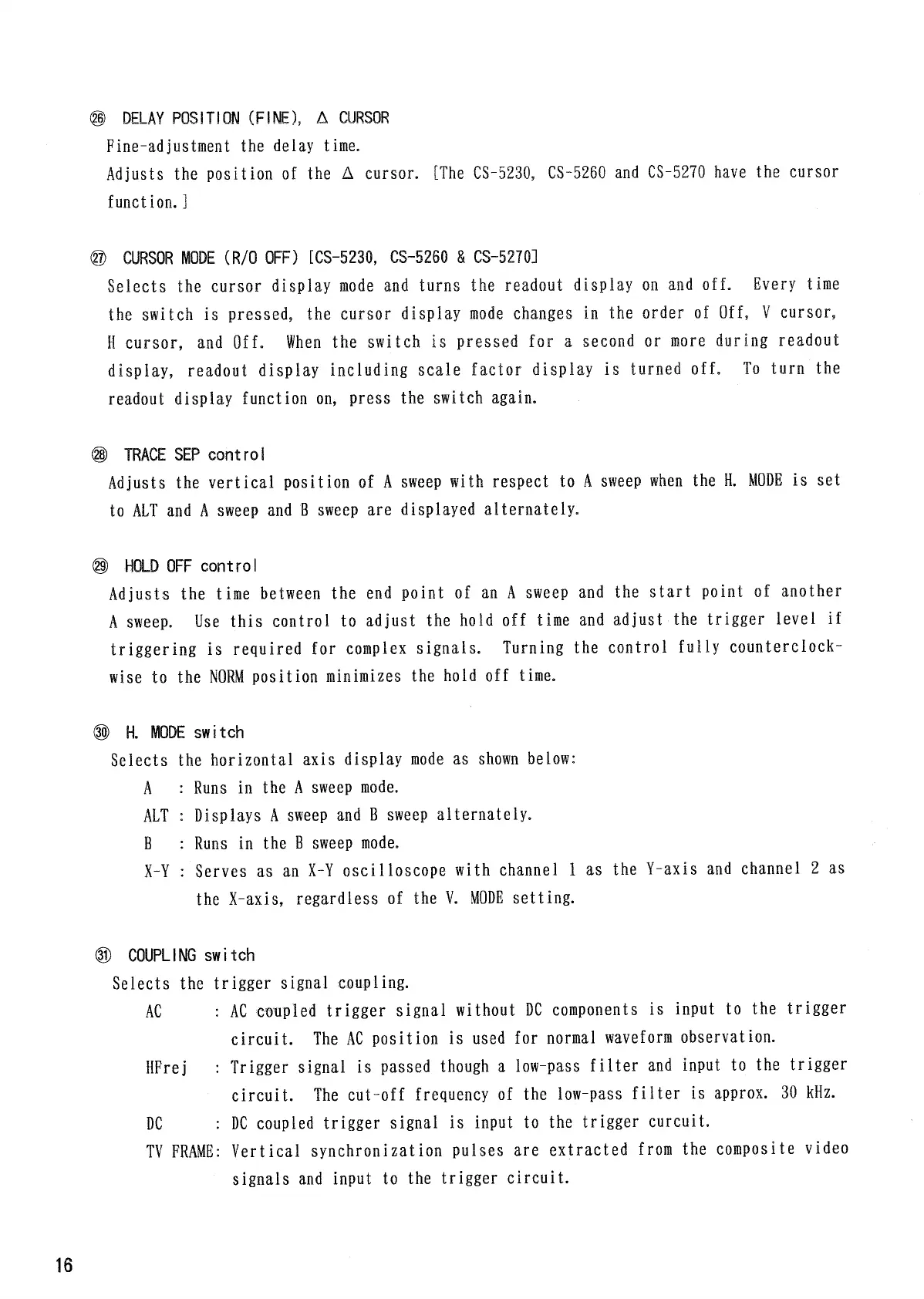

16
®
DELAY
POSITION
(FINE),
A
CURSOR
Fine-adjustment
the
delay time.
Adjusts
the
position
of
the
A
cursor.
[The CS-5230, CS-5260
and
CS-5270 have
the
cursor
function.]
@
CURSOR
MODE
(R/O OFF)
[CS-5230,
CS-5260
&
CS-5270]
Selects
the
cursor display
mode
and
turns
the
readout
display
on
and
off, Every
time
the switch
is
pressed,
the
cursor display
mode
changes
in the
order
of
Off,
¥
cursor,
1
cursor,
and
Off.
When the
switch
is
pressed
for
a
second
or
more
during
readout
display,
readout
display including scale factor display
is
turned off.
To
turn
the
readout
display function
on,
press
the
switch again.
®
TRACE SEP
control
Adjusts
the
vertical
position
of A
sweep
with respect
to
A
sweep
when
the H.
MODE
is set
to
ALT and
A
sweep
and
B
sweep
are
displayed
alternately.
®
HOLD
OFF
control
Adjusts
the
time
between
the
end
point
of an A
sweep
and
the
start
point
of
another
A
sweep.
Use
this
control
to
adjust
the
hold
off
time
and
adjust
the
trigger
level
if
triggering
is
required
for
complex
signals.
Turning
the
control
fully
counterclock-
wise
to
the
NORM
position
minimizes
the
hold
off
time.
©
H. MODE
switch
Selects
the
horizontal
axis
display
mode
as
shown
below:
A
:
Runs
in the
A
sweep
mode.
ALT
:
Displays
A
sweep
and
B
sweep
alternately.
B
:
Runs
in the
B
sweep
mode.
X-Y
:
Serves
as an X-Y
oscilloscope with
channel
1 as
the
Y-axis
and
channel
2 as
the X-axis, regardless
of
the V.
MODE
setting.
©
COUPLING
switch
Selects
the
trigger
signil
c&upiing.
AC
: AC
ctiplei
trigger signal without
DC
components
is
input
to
the
trigger
circuit.
The
AC
position
is
used
for normal waveform
observation.
HFrej
:
Trigger signal
is
passed
though
a
low-pass
filter
and
input
to
the
trigger
circuit.
The
cut-off
frequency
of
the
low-pass
filter
is
approx.
30
kHz.
DC
: DC
coupled
trigger signal
is
input
to
the
trigger
curcuit.
TV
FRAME:
Vertical
synchronization pulses
are
extracted
from
the
composite
video
signals
and
input
to
the
trigger
circuit.
