® AC-GND-DC switch
Selects the CH2 vertical axis input signal coupling mode in the same way as the CHI
AC-GND-DC control.
Serves as an X-axis input selector during X-Y operation.
© CH2 INPUT terminal
CH2 vertical axis input terminal.
Serves as an X-axis input terminal during X-Y operation.
© CH2 INV switch
When the switch is pressed, the polarity of CH2 input signal is inverted.
© $ POSITION control
Adjusts the vertical position of CH3 waveform displayed on the CRT.
® CH3 INPUT terminal
CH3 vertical axis input terminal.
® DELAY POSITION (COARSE), AREF CURSOR
Coarsely adjusts the delay time between A sweep and B sweep when H. MODE is set to ALT
or B. (COARSE)
Adjusts the position of the AREF cursor. [The CS-5230, CS-5260 and CS-5270 have the
cursor functions. ]

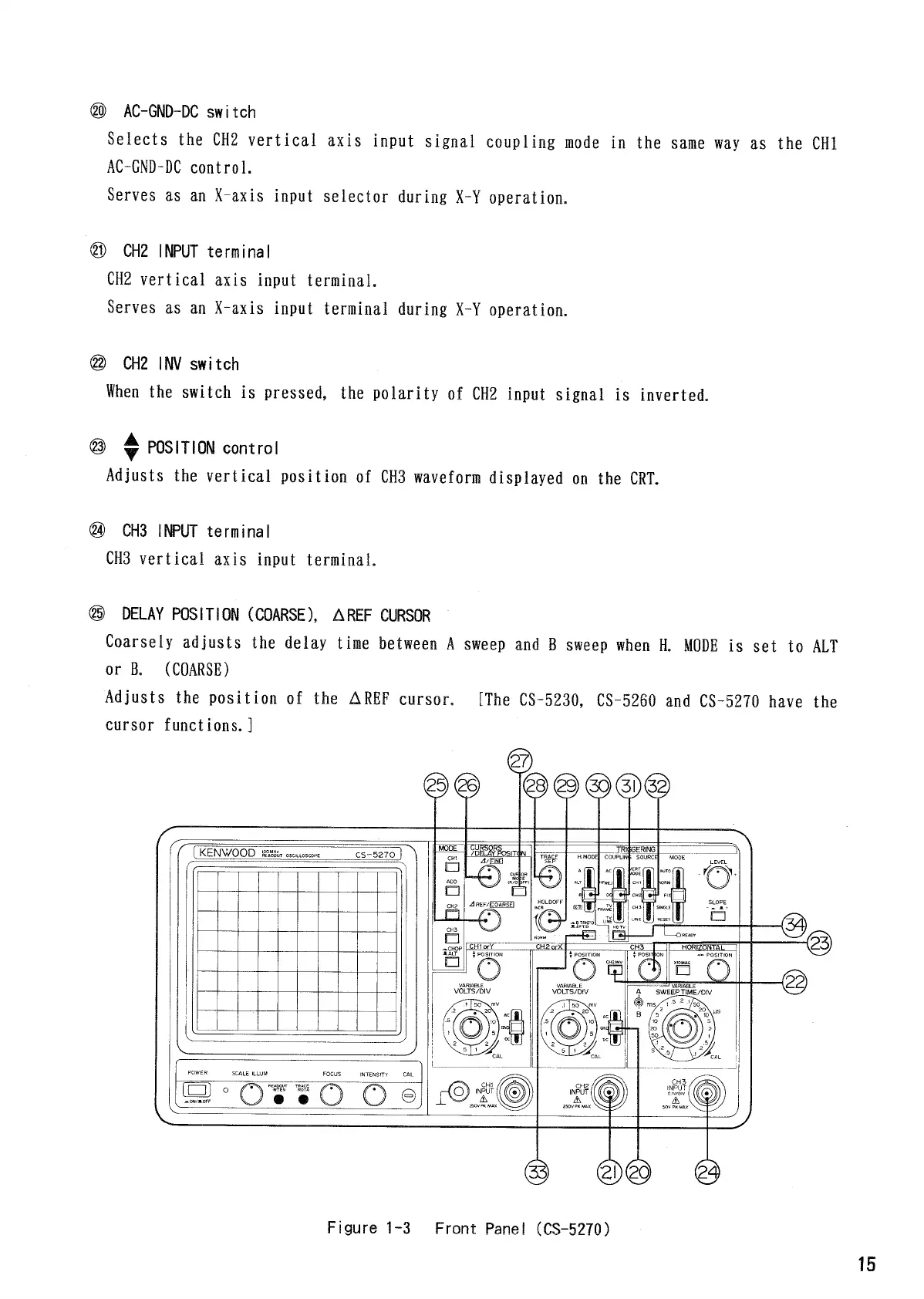

Figure 1-3 Front Panel (CS-5270)
15
