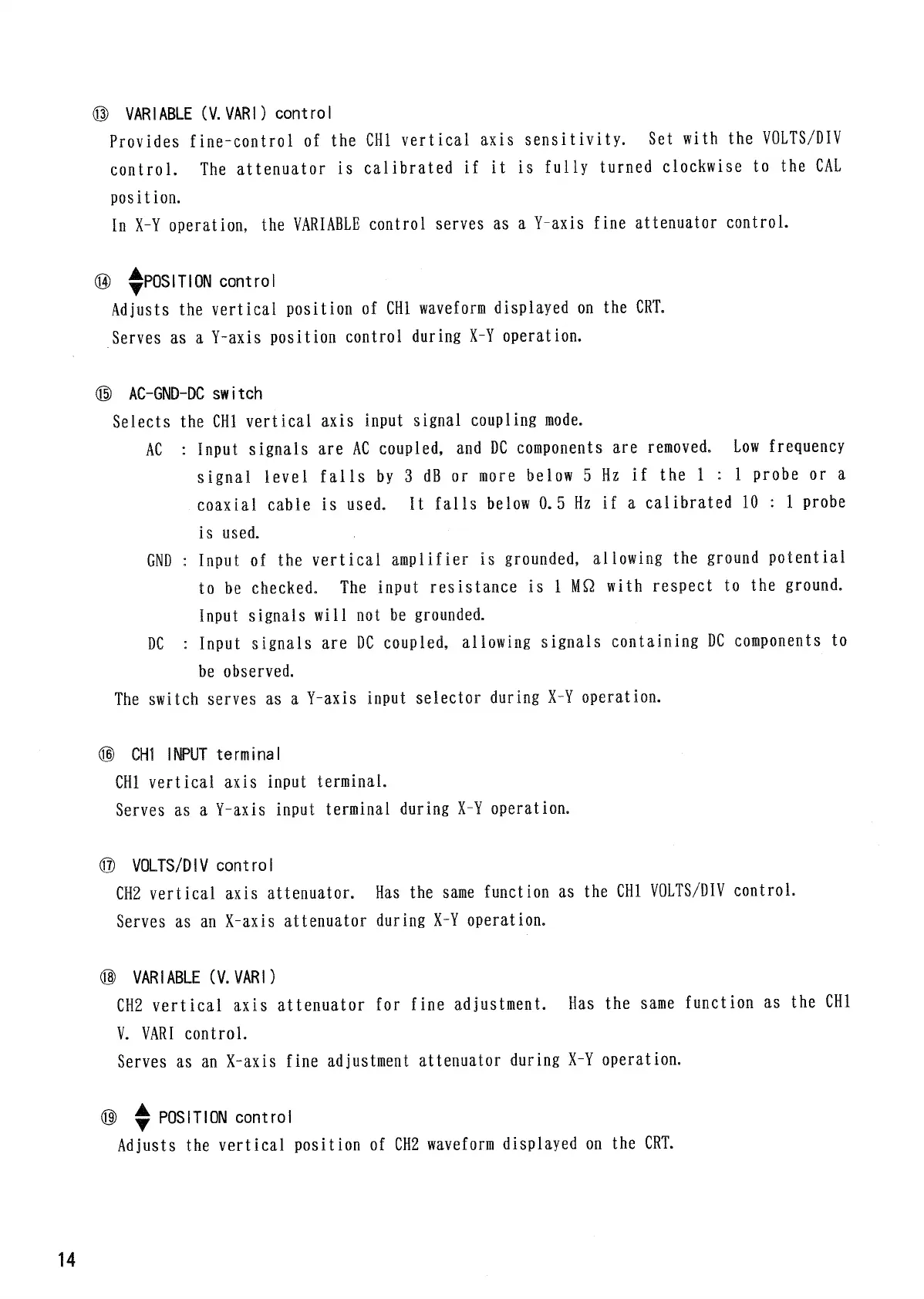

® VARIABLE (V. VARI) control
Provides fine-control of the CHI vertical axis sensitivity. Set with the VOLTS/DIV
control. The attenuator is calibrated If It is fully turned clockwise to the CAL
position.
In X-Y operation, the VARIABLE control serves as a Y-axis fine attenuator control.
® ^POSITION control
Adjusts the vertical position of CHI waveform displayed on the CRT.
Serves as a Y-axis position control during X-Y operation.
® AC-GND-DC switch
Selects the CHI vertical axis input signal coupling mode.
AC : Input signals are AC coupled, and DC components are removed. Low frequency
signal level falls by 3 dB or more below 5 Hz if the 1 : 1 probe or a
coaxial cable is used. It falIs below 0. 5 Hz if a calibrated 10 : 1 probe
is used.
GND : Input of the vertical amplifier is grounded, allowing the ground potential
to be checked. The input resistance is 1 UQ with respect to the ground.
Input signals will not be grounded.
DC : Input signals are DC coupled, allowing signals containing DC components to
be observed.
The switch serves as a Y-axis input selector during X-Y operation.
® CH1 INPUT terminal
CHI vertical axis input terminal.
Serves as a Y-axis input terminal during X-Y operation.
® VOLTS/DIV control
CH2 vertical axis attenuator. Has the same function as the CHI VOLTS/DIV control.
Serves as an X-axis attenuator during X-Y operation.
® VARIABLE (V. VARI)
CH2 vertical axis attenuator for fine adjustment. Has the same function as the CHI
V. VARI control.
Serves as an X-axis fine adjustment attenuator during X-Y operation.
® ^ POSITION control
Adjusts the vertical position of CH2 waveform displayed on the CRT.
14
