REFERENCE =
Alternate (ALT) and Chop (CHOP) Modes
When using these modes during multi-trace operation, the display Is divided up
according to time.
In the chop mode, each channel is subdivided according to time within each sweep.
Normally, this kind of measurement is carried out with signals of either slower
sweep rate from 1 ms/div or low repetition rates where flicker is quite noticeable,
In the alternate mode, each channel is displayed one after another. Therefore,
each channel display appears much clearer. Normally, a faster sweep is employed.
© VOLTS/DIV control
The vertical axis sensitivity is controlled with the CHI vertical axis attenuator.
The VOLTS/DIV control switches it in 1-2-5 steps. Calibrated vert ical axis
sensitivity is obtained by setting V. VARI to the CAL position.
In X-Y operation, the VOLTS/DIV control serves as a Y-axis attenuator.

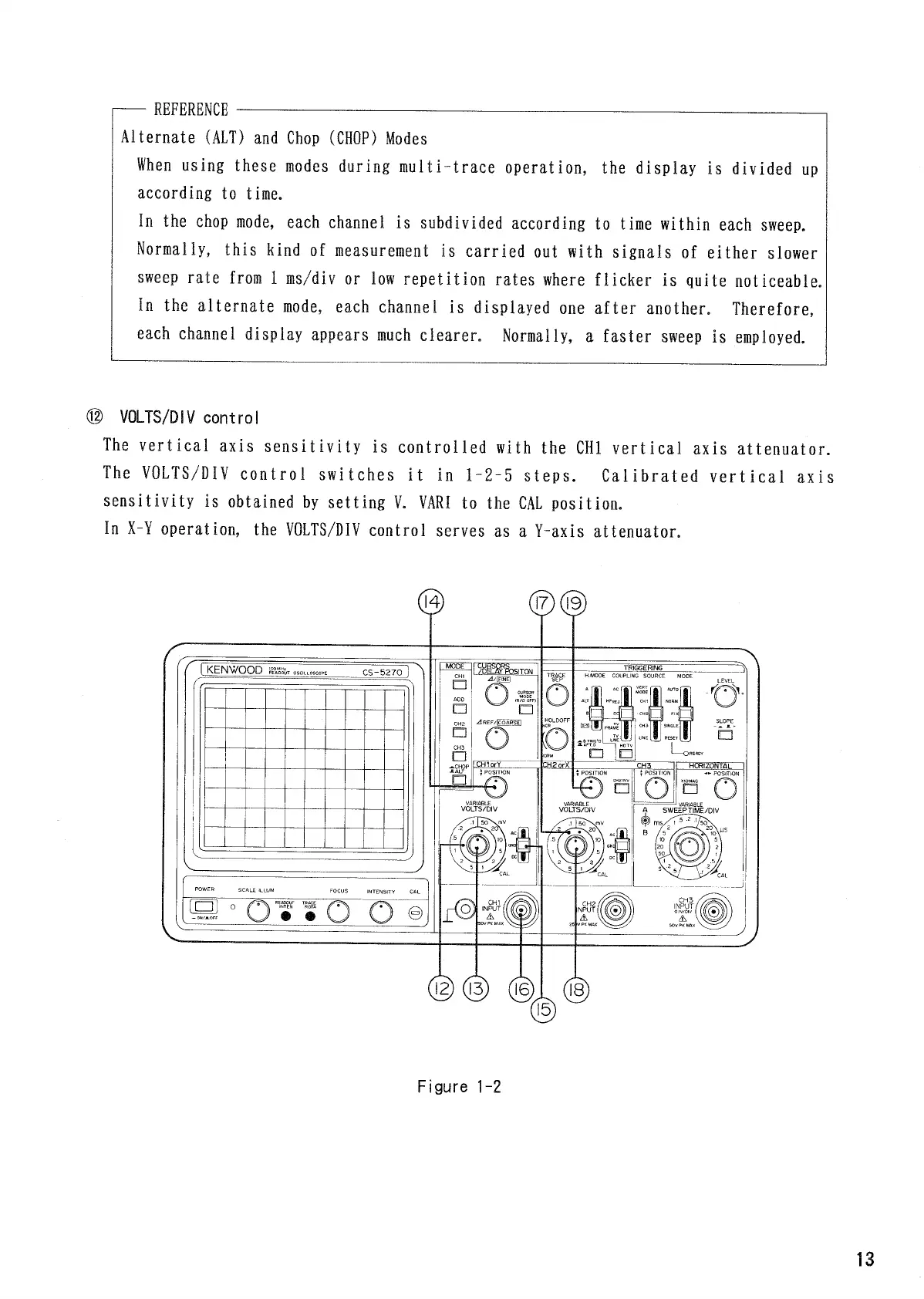

Figure 1-2
13
