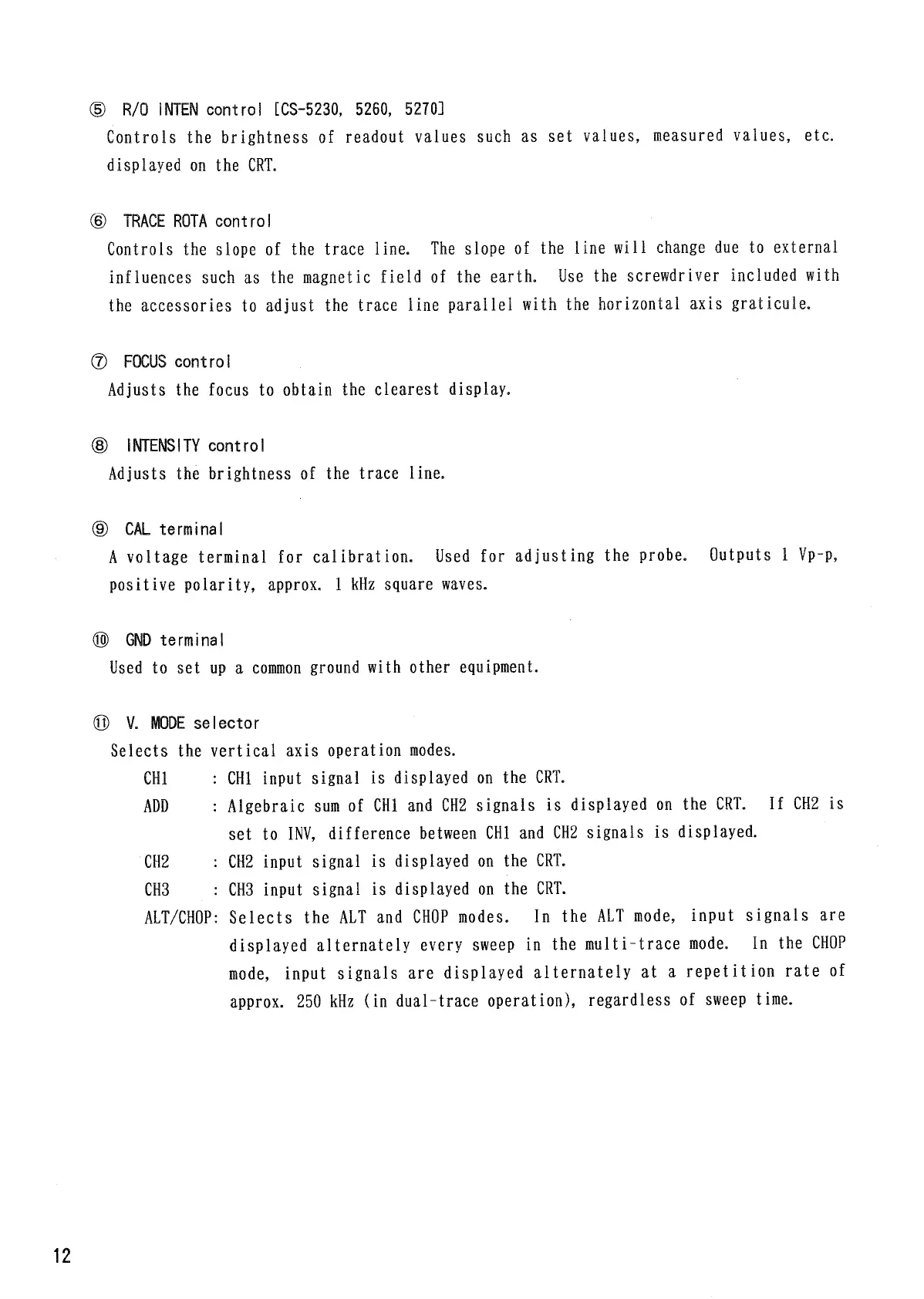

® R/0 INTEN control [CS-5230, 5260, 5270]
Controls the brightness of readout values such as set values, measured values, etc,
displayed on the CRT.
© TRACE ROTA control
Controls the slope of the trace line. The slope of the line will change due to external
influences such as the magnetic field of the earth. Use the screwdriver included with
the accessories to adjust the trace line parallel with the horizontal axis graticule.
® FOCUS control
Adjusts the focus to obtain the clearest display.
® INTENSITY control
Adjusts the brightness of the trace line.
® CAL terminal
A voltage terminal for calibration. Used for ad just ing the probe. Outputs 1 Vp-p,
positive polarity, approx. 1 kHz square waves.
® GND terminal
Used to set up a common ground with other equipment.
© V. MODE selector
Selects the vertical axis operation modes.
CHI : CHI input signal is displayed on the CRT.
ADD : Algebraic sum of CHI and CH2 signals is displayed on the CRT. If CH2 is
set to INV, difference between CHI and CH2 signals is displayed.
CH2 : CH2 input signal is displayed on the CRT.
CH3 : CH3 Input signal is displayed on the CRT.
ALT/CHOP: Selects the ALT and CHOP modes. In the ALT mode, input signals are
displayed alternately every sweep in the multi-trace mode. In the CHOP
mode, input signals are displayed alternately at a repetition rate of
approx. 250 kHz (in dual-trace operation), regardless of sweep time.
12
