2) After warm-up adjust the INTENSITY control so that the trace line Is easy to see,
and adjust the FOCUS control to obtain the clearest display Image. Then, use the
TRACE ROTA control to bring the trace, line parallel with the horizontal graduation
line.
3) Plug the probe into the INPUT terminal of each channel. Set the AC-GND-DC control to
DC. Attach the CHI probe to the CAL terminal. Set the VOLTS/DIV control to 20 mV/div.
[For the CS-5230, CS-5260 or CS-5270, set the VOLTS/DIV control to 0.2 V/div. ]
Adjust the CHI y POSITION control so that the whole waveform can be seen. With the
waveform in this position, carry out probe compensation adjustment according to Figure
5 and the probe instruction manual.
CD Left waveform : Excessive compensation
(D Middle waveform: Insufficient compensation
(3) Right waveform : Correct compensation
Adjust the probe trimmer so that a. correctly
compensated waveform is displayed.
4) Set the VERT MODE control to CH2 and carry out compensation adjustment of the CH2
probe. After compensating both channel probes, use the CHI probe exclusively in
channel 1 and the CH2 probe exclusively in channel 2. This is necessary because there
is a siight capacitance variation between the two channels, and confusing the probes
will cause changes in compensation adjustments.
5) Return the VERT MODE control to CHI, each channel's AC-GND-DC control to the GND
setting, each channel's VOLTS/DIV control to 5 V/div, and the ^ POSITION and
POSITION controls to the center.
This is what we refer to as the "initial setting" condition.
25

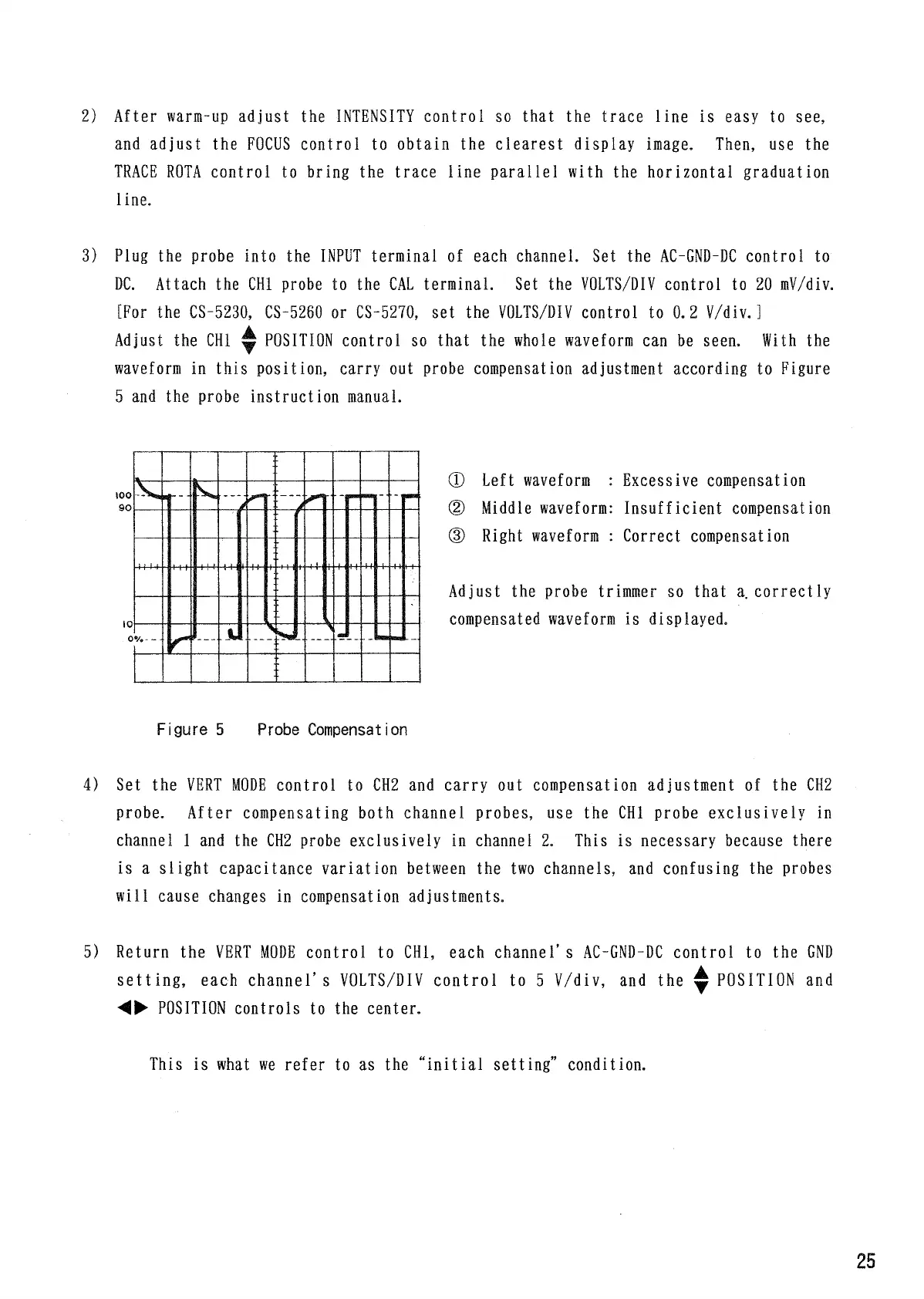

Figure 5 Probe Compensation
