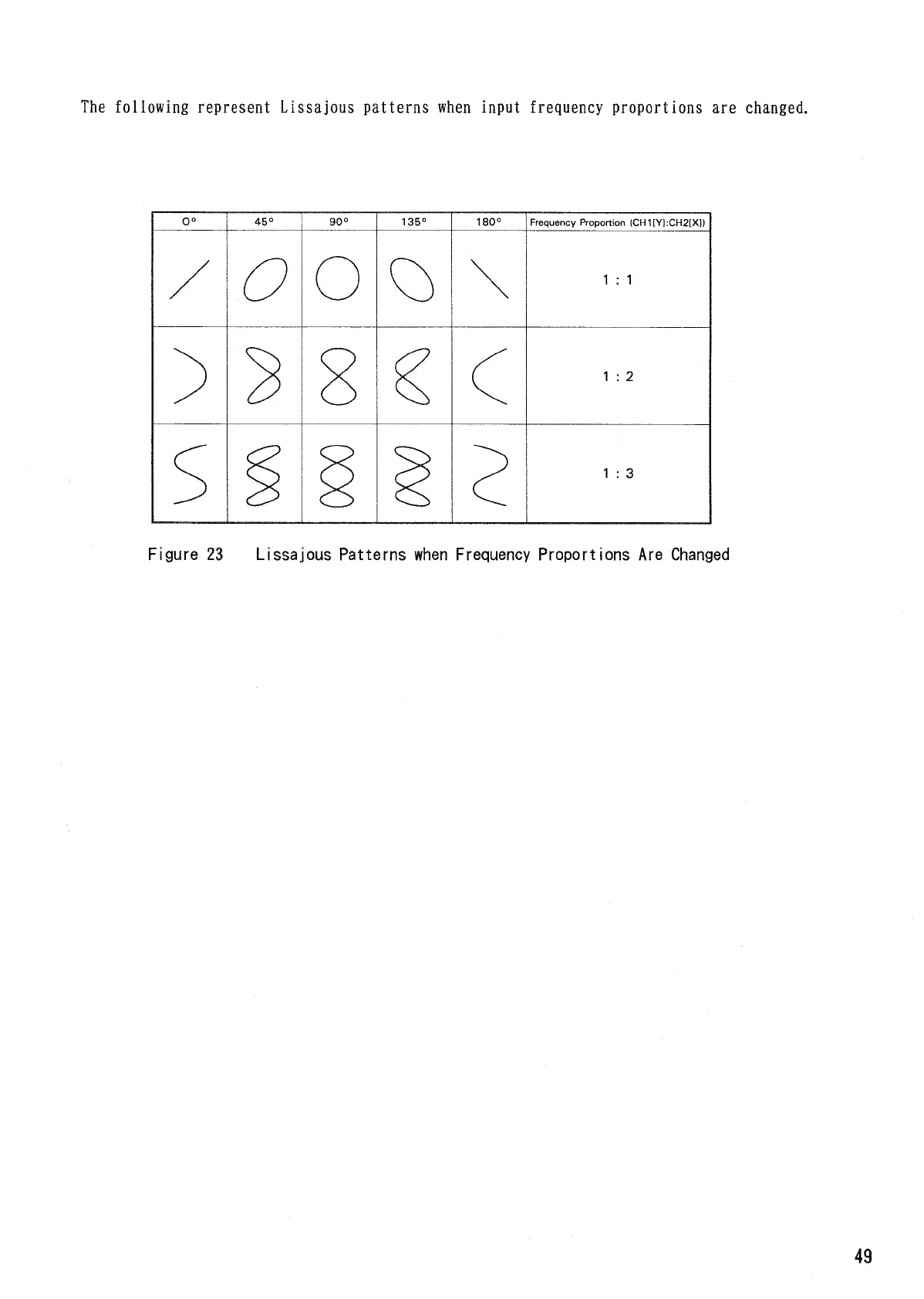

The following represent
Lissajous
patterns
when
input frequency proportions
are
changed
Figure
23
Lissajous
Patterns
when
Frequency
Proportions
Are Changed
49
0°
45° 90° 135°
180°
Frequency
Proportion
(CH1[Y]:CH2[X1)
1
: 1
1
: 2
1
: 3
