Connection/Installation
77English

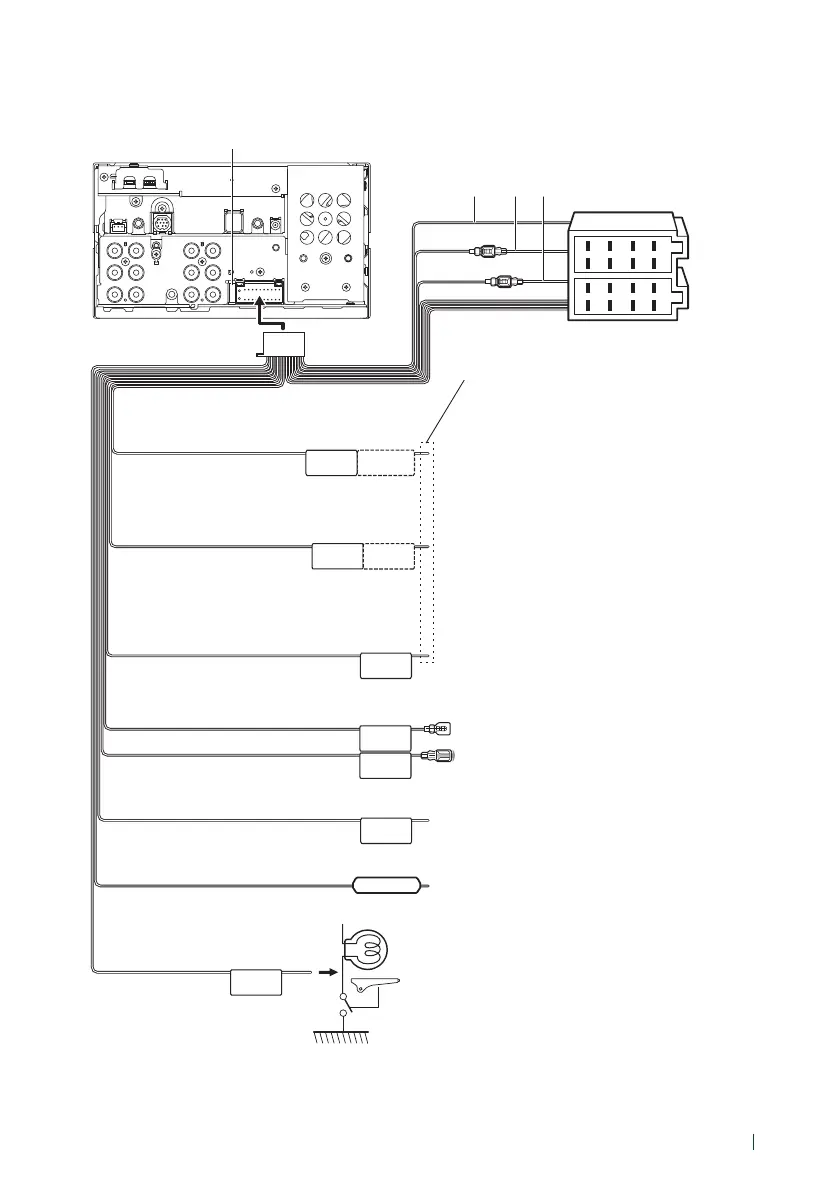

Ñ Connecting wires to terminals
MUTE
P. CONT
ANT CONT
STEERING WHEEL
REMOTE INPUT
REMOTE CONT
REVERSE
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PRK SW
CAM+
CAM–
S SENS
Fuse (15A)
Connect either to the power control terminal when
using the optional power amplifier, or to the power
terminal for the booster amplifier of the film-type or
short pole type antenna.
Blue/White
[1]
(Power control/Antenna control wire)
Green/White
Green/Red
To CMOS-3xx series (optional accessory) camera
control terminal
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
Brown
(Mute control wire)
Purple/White
(Reverse sensor wire) (2 m)
Pink
(Speed Pulse Input) (2m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when using
the optional rear view camera.
Connect to the vehicle’s speed pulse harness.
Do not cut the "S SENS" tag or failure may result.
To steering remote
To use the steering wheel remote control feature,
you need an exclusive remote adapter (not supplied)
matched to your car.
If no connections are made, do not let the cable
come out from the tab.
Accessory 1
Connect to the vehicle’s parking brake detection switch
harness.
Light Green
(Parking sensor wire) (2 m)
For best safety, be sure to connect
the parking sensor.
A B C
A: Black (Ground wire)
B: Yellow (Battery wire)
C: Red (Ignition wire)
[1] [2]: Blue/White wire is provided two wires, [1] and [2]. Blue/White wire total output ([1] + [2]): 12 V = 350 mA
Connector B
Connector A
Other cable : Not used.
