1-10 (No.RA018<Rev.002>)
procedure, “CLONE MODE” is displayed if entered pass-
word is correct. If the password is incorrect, “Input Pass-
word” is redisplayed.
(4) Power ON the target transceiver.
(5) Connecting the cloning cable (part No.E30-3325-05) to the
universal connectors on the source and target.
(6) Press [ ] key on the source while the source displays
“CLONE MODE”. The data of the source is sent to the tar-
get. While the target is receiving the data, “PROGRAM” is
displayed. When cloning of the data is completed, the
source displays “END”, and the target automatically oper-
ates in the User mode. The target can then be operated by
the same program as the source.
(7) The other target can be continuously cloned. When the
[ ] key on the source is pressed while the source displays
“END”, the source displays “CLONE MODE”. Carry out the
operation in step (4) to (6).
Note:
• Cannot be cloned if the password (overwrite password) is
programmed to the target.
• “Model name” must be same to clone the transceiver.

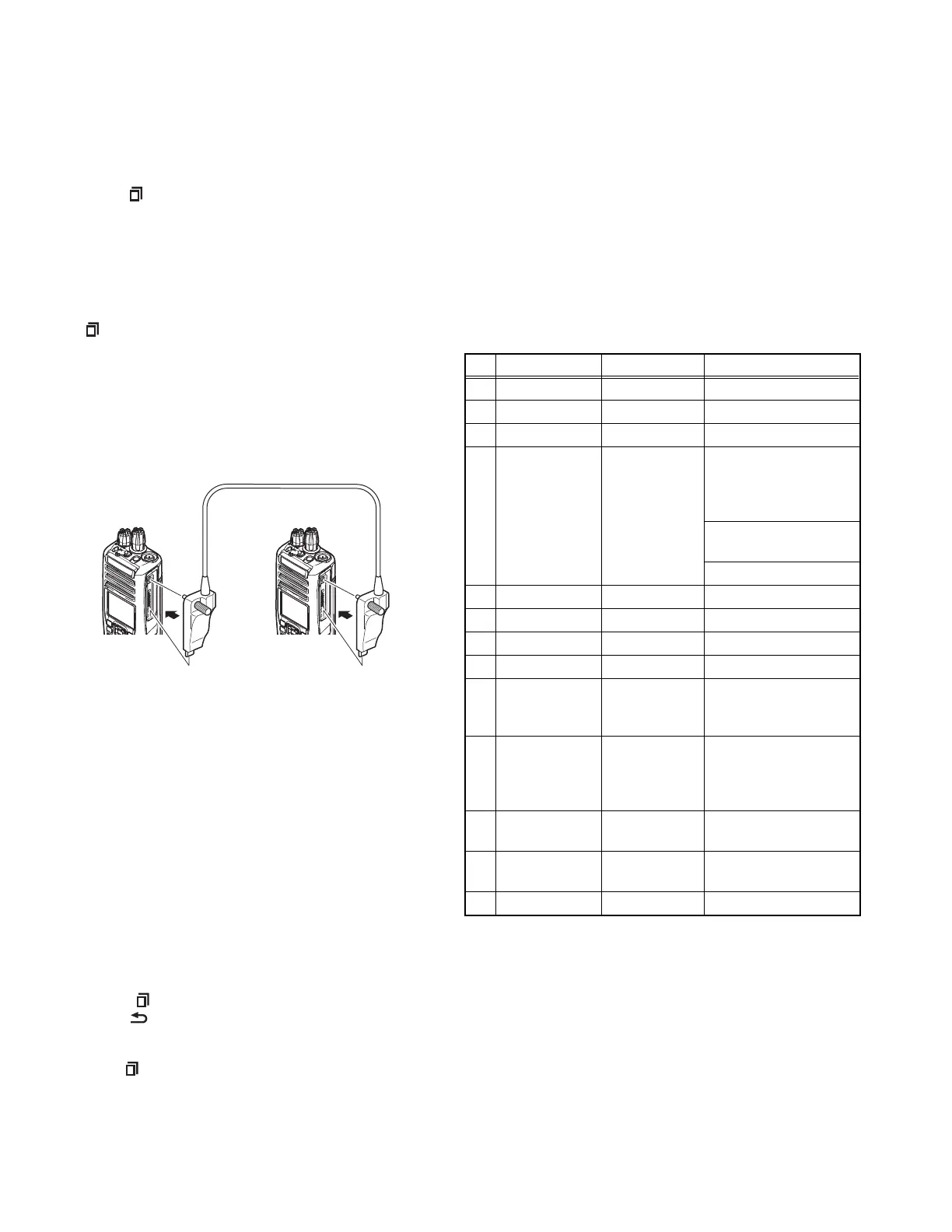

Fig.2
2.2.8 Front Panel Programming Mode
If the Front Panel Programming Mode is used, the frequency or
other data of the conventional channel is rewritable only by the
transceiver.
Moreover, the conventional channel can be added.
The following setup items can be changed or added by us-
ing the Front panel programming mode.
• RX/TX Frequency
• Channel Type
• Channel Spacing
• Decode QT/DQT/RAN/NAC, Encode QT/DQT/RAN/NAC
• Talkgroup ID List No.
• Transmit Power
• Channel Name
Key guide on the Clone/ Front Panel Programming Pass-
word input screen.
• Confirm ([ ] key): The password confirmation
• Delete ([ ] key): Delete the latest digit from the current
password number (Press and hold to delete all password
numbers)
• Select ([ ] key): Determine the latest digit of the password
number.
2.2.8.1 Enter to the Front panel programming mode.
Enter to the Menu Mode by pressing [Front Panel Mode] PF key
or [Menu] key. When the Front Panel Mode is selected, it can en-
ter to the Front panel programming mode.
If the Clone/Front panel programming Password is not set to the
transceiver, "Panel Program" is displayed on the LCD.
If the Clone/Front panel programming Password is set to the
transceiver, "Panel Program" is displayed on the LCD when you
enter the correct password while “Input Password” is displayed.
2.2.8.2 Data Writing
Before moving to next Zone/Channel, “Keep This Change?” ap-
pears on the LCD, if you select “OK”, the new data is written to
memory. If you select “Cancel”, the new data not be written; the
new data will be erased.
• The setup items for Front panel programming mode are as
follows.
Cloning cable
(E30-3325-05)
Source
transceiver
Target
transceiver
No. Setup item Display Remarks
1 RX Frequency RX Frequency Receive Frequency
2 TX Frequency TX Frequency Transmit Frequency
3 Channel Type Channel Type Analog/NXDN/P25
4 Channel
Spacing
Channel Space Analog:
12.5kHz/20kHz/25kHz
Note: 20kHz is applied
for E and E2 types only.
NXDN:
6.25kHz/12.5kHz
P25: 12.5kHz
5 RX Signaling RX QT/DQT Receive QT/DQT
6 TX Signaling TX QT/DQT Transmit QT/DQT
7 RX RAN RX RAN None, 1~63
8 TX RAN TX RAN None, 1~63
9 RX NAC RX NAC 000~FFF
(Hexadecimal)
Note: “F7F” cannot set.
10 TX NAC TX NAC 000~FFF
(Hexadecimal)
Note: “F7E” and “F7F”
cannot set.
11 Talkgroup ID
List Number
Talkgroup None, 1~1500
12 Transmit Power Transmit
Power
Low/Medium/High
13 Channel Name Channel Name
