1-14 (No.RA018<Rev.002>)

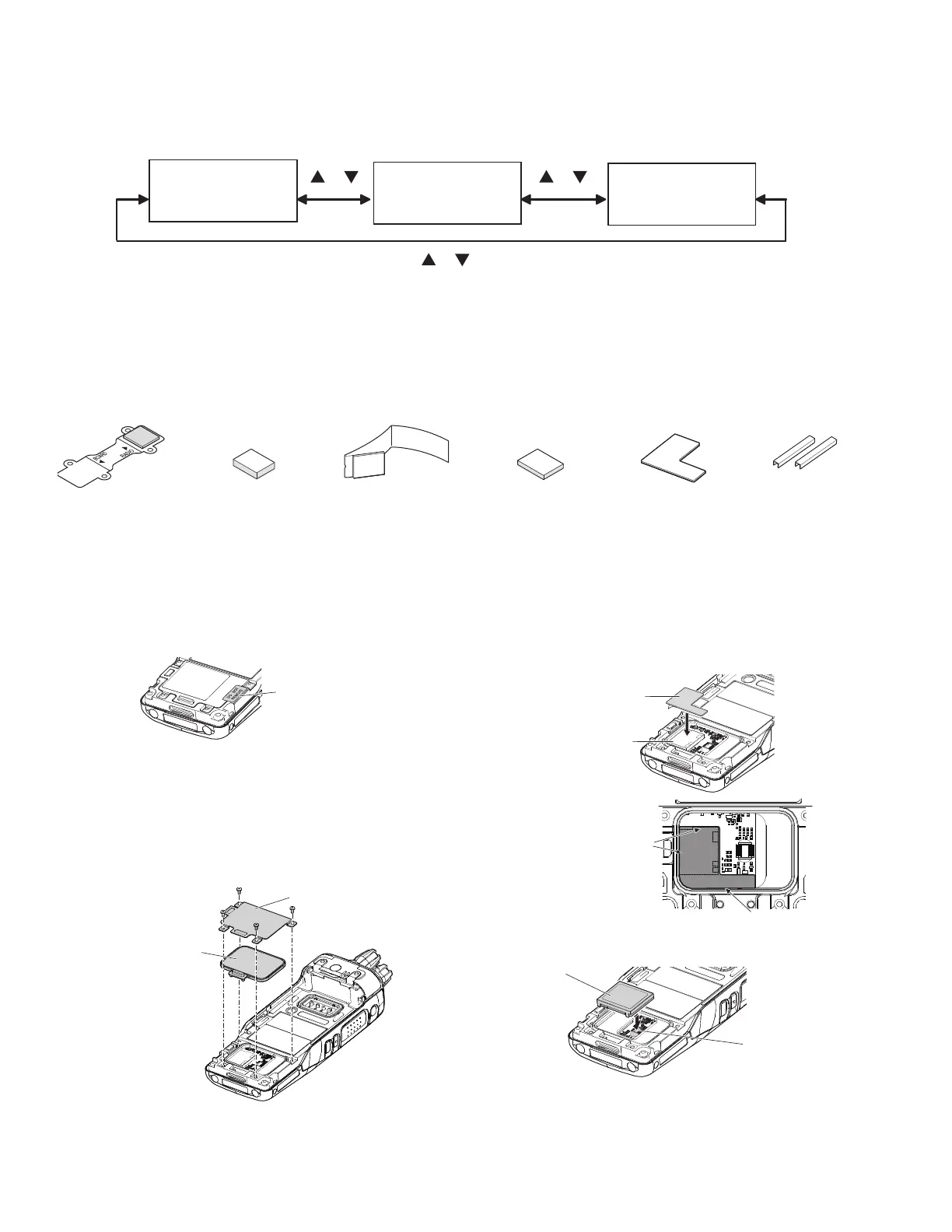

2.2.9 Transceiver Information Mode
Use this function to confirm the transceiver firmware version, SCM Firmware version and SCM Hardware version.
(1) Enter the Transceiver Information mode by using section "2.2.2 How to Enter Each Mode".
(2) The transceiver fi rmware version appears on the LCD.
(3) Use the [] and [] keys to select the confirmation items.
(4) To exit the transceiver information mode, turn the transceiver power OFF.
Note:
When the SCM board is not equipped to the transceiver, SCM Firmware Version and SCM Hardware Version are displayed
as "-.-.-.".
2.3 INSTALLATION
2.3.1 SECURE CRYPTOGRAPHIC MODULE (KWD-AE30/KWD-AE31:Option)
2.3.2 SUPPLIED ACCESSORIES
Note:
Supplied accessories with * mark are not used for the NX-5200.
2.3.3 INSTALLING THE MODULE IN THE TRANSCEIVER
ATTENTION:
When installing the module, please take measures to prevent static electricity.
(1) Remove the VOID sheet.
CAUTION:
Regarding VOID, confirm the service policy of the NX-
5200 to KENWOOD (or authorized distributor). In addi-
tion, when installing the module, remove VOID sheet af-
ter understanding the service policy.
(2) Remove the 4 screws from the cover.
(3) Remove the cover and orange rubber seal from the trans-
ceiver.
(4) Remove the release paper from one side of cushion D,
then attach the cushion to the shielding case of the module.
(5) Insert the module to the connector of the PCB.
㪫㫉㪸㫅㫊㪺㪼㫀㫍㪼㫉㩷
㪽㫀㫉㫄㫎㪸㫉㪼㩷㫍㪼㫉㫊㫀㫆㫅
㪪㪚㪤㩷㪝㫀㫉㫄㫎㪸㫉㪼㩷
㫍㪼㫉㫊㫀㫆㫅
㪪㪚㪤㩷㪟㪸㫉㪻㫎㪸㫉㪼㩷
㫍㪼㫉㫊㫀㫆㫅
[ ]/[ ] [ ]/[ ]
[ ]/[ ]
Connecting cable *
(X42-3330-XX)
Cushion A *
(G13-2179-XX)
Cushion B *
(G13-2178-XX)
Cushion C *
(G1D-0006-XX)
Cushion D
(G1D-0055-XX)
Spacer
(F3K-0004-XX)
VOID sheet
Cushion D
Shielding case
Insert the cushion under the chassis.
ttach the cushion
correctly to the position of
the chassis and shielding
case (end-face).
Module
Connecto
To Next Page
