Kenwood NX-5200 Service Manual

(No.RA018<Rev.002>)3-15

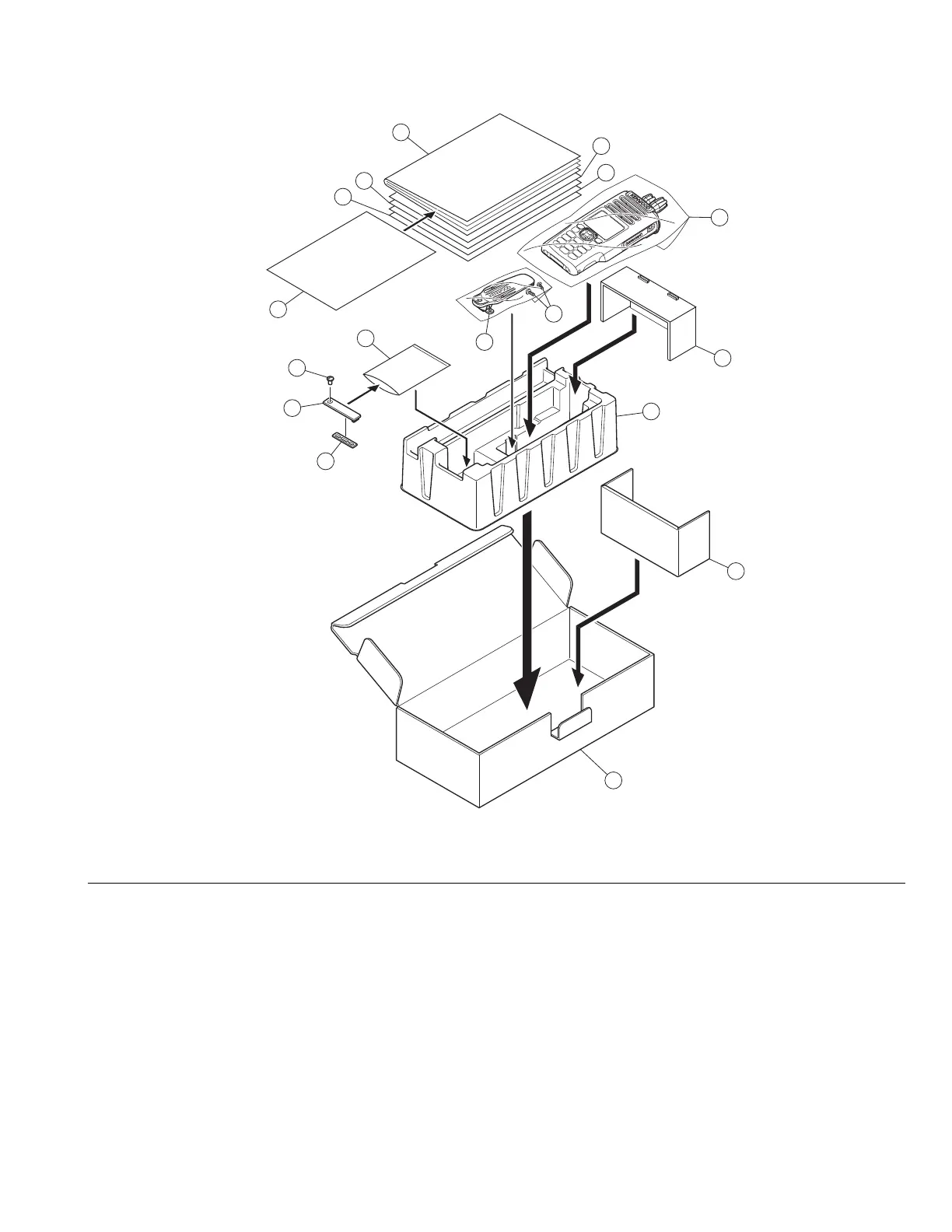

Packing materials and accessories parts list
Packing and accessories
Block No. [M][2][M][M]
 Symbol No. Part No. Part Name Description Local
1 B0K-0002-00 CAP ACC
2 B5A-0049-10 INSTRUCTION MANUAL ACC F2,F3,K2,K3
2 B5A-0940-00 INSTRUCTION MANUAL ACC/9 LANG E,E2
3 ------------ PAMPHLET SAR(E,F) F2,F3,K2,K3
3 ------------ PAMPHLET ROHS2 E,E2
4 G5D-0027-00 PACKING ACC/CAP
5 ------------ PROTECTION BAG ACC/CAP
6 ------------ PROTECTION BAG RADIO
7 H5A-0012-00 ITEM CARTON CASE *Produced in Japan F2,F3,K2,K3
7 H5A-0203-00 ITEM CARTON CASE *Produced in Malaysia K2,K3,E,E2
8 J29-0730-05 HOOK ACC/KBH-11
9 N08-0571-04 DRESSED SCREW ACC/CAP
10 N09-6585-15 SPECIAL SCREW ACC/KBH-11(x2)
11 H1C-0036-00 PACKING FIXTURE *Produced in Japan(x2) F2,F3,K2,K3
11 H1C-0037-00 PACKING FIXTURE *Produced in Malaysia(x2) K2,K3,E,E2
12 H1C-0011-00 PACKING FIXTURE
13 B5A-0327-30 INSTRUCTION MANUAL WEB/EN
14 B5A-0328-30 INSTRUCTION MANUAL WEB/FR
15 B5A-0329-30 INSTRUCTION MANUAL WEB/ES
16 B5A-0330-30 INSTRUCTION MANUAL QUICK GUIDE
1
2
3
4
6
7
8
10
9
5
12
11
11
Block No.M2MM
14
13
16
15
