1-20 (No.RA018<Rev.002>)

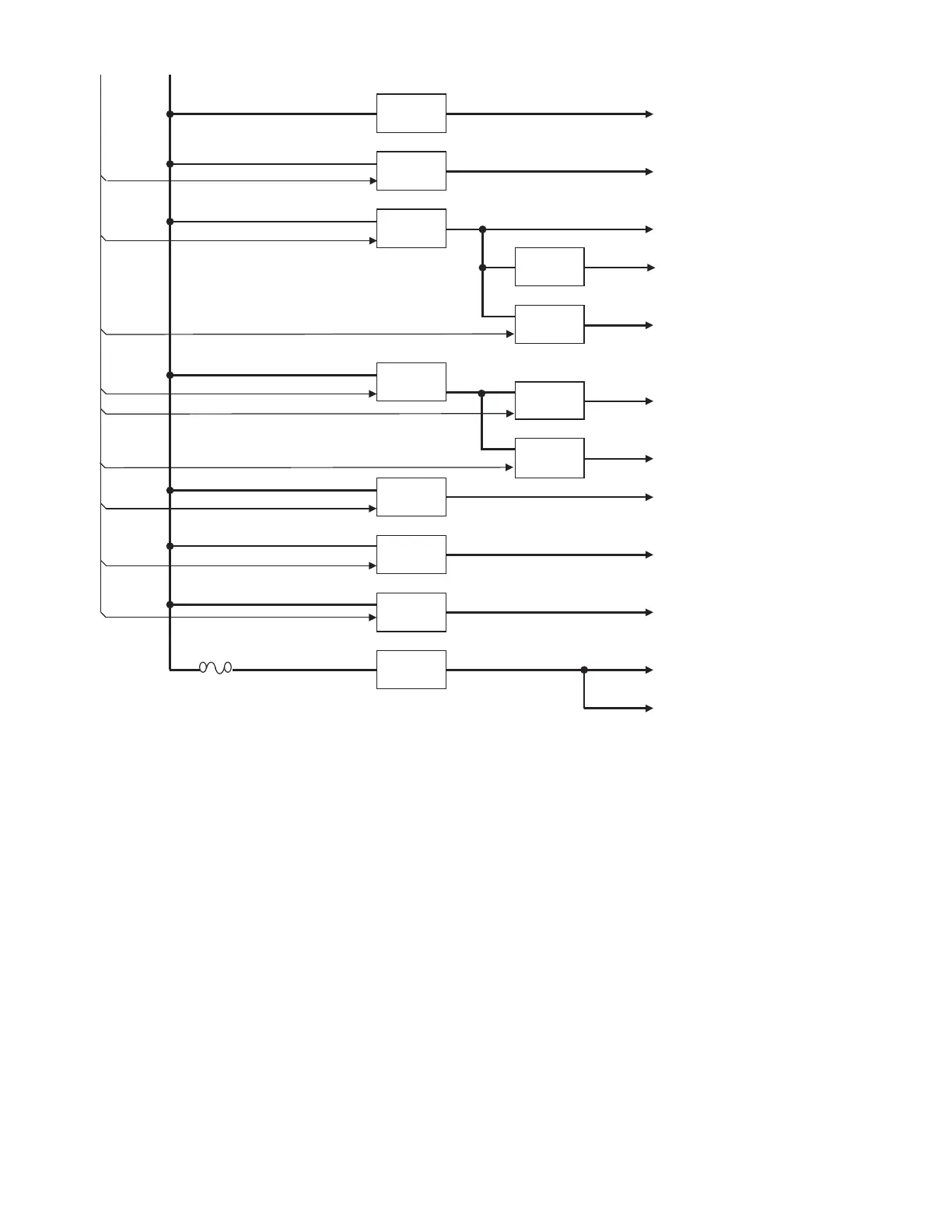

Fig.4 Power supply circuit
2.4.8 Signaling Circuit
2.4.8.1 Encode (QT/DQT/DTMF/2-tone/MSK)
Each signaling data signal of QT, DQT, DTMF, 2-tone and MSK is generated by IC702, superposed on a modulation signal and is sent
to TX VCO and TX PLL IC.
2.4.8.2 Decode (QT/DQT/DTMF/2-tone/MSK)
The audio signal is removed from the FM detection signal sent to the IC702 and the resulting signal is decoded by IC702.
Q71
53AF
F2
(1A)
IC82
50A
KEY Back Light, 3Color LED,
8bit/16ch ADC, Universal I/F
IC801
50U
Universal Option
IC36
50C
PLL, IF, VCO
IC60
130C
ASSIST
IC360
SW
ANTSW
IC63
50VCO
Q110
SW
TX VCO
Q210
SW
RX VCO
IC65
50T
TX circuit
IC64
50R
RX circuit
Int AF Amp
Ext AF Amp
Q32
SB2
8bit ADC
SBC
SBC
SBC
5UC
TXC
RXC
ANTSW
TX
RX
