Kenwood NX-5200 User Guide

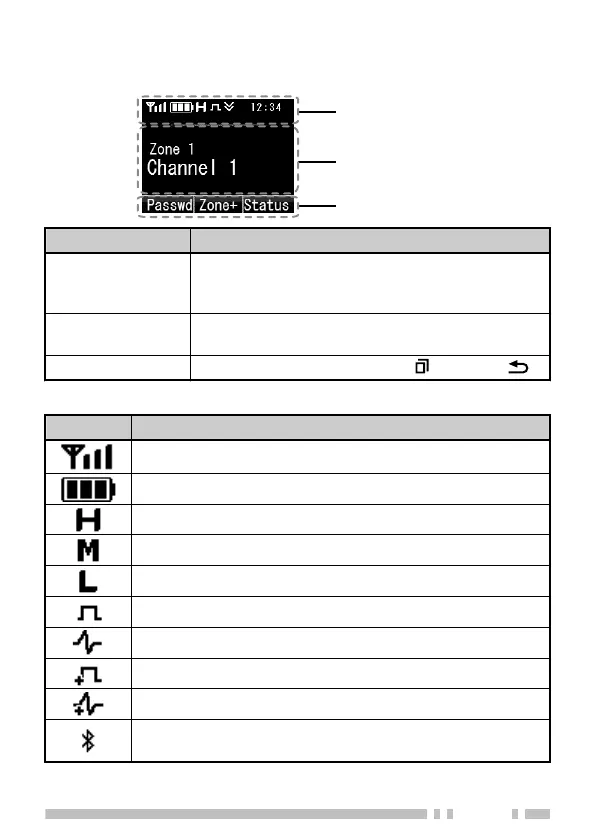

DISPLAY
Basic Frame
Function Icon Area
Main Area
Key Guide Area
Display Area Description
Function Icon
Area
Displays the various function icons, signal
strength indicator, battery power indicator and
clock.
Main Area
Displays the information of the transceiver such
as Channel number and Zone number.
Key Guide Area
Displays the key functions for [ ], [J] and [ ].
Function Icon
Indicator Description
Displays the signal strength.
Displays the battery power.
The channel is using high transmit power.
The channel is using medium transmit power.
The channel is using low transmit power.
In Digital mode (Digital Channel)
In Analog mode (Analog Channel)
In Digital mode (Mixed Channel)
In Analog mode (Mixed Channel)
The Bluetooth function is activated. Blinks in the process
of turning on Bluetooth.
21

Kenwood NX-5200 Specifications

General

IP Rating	IP67
Zones	128
GPS	Yes
Bluetooth	Yes
Voltage Range	7.5V DC ±20%
Operating Temperature	-30°C to +60°C
Frequency Range	136-174 MHz
Battery Life	14 hours (Digital mode)
Digital Protocol	NXDN, DMR
Display	LCD
