7.3 Installation, setting and leveling
Whenever required, remove the transport protection.

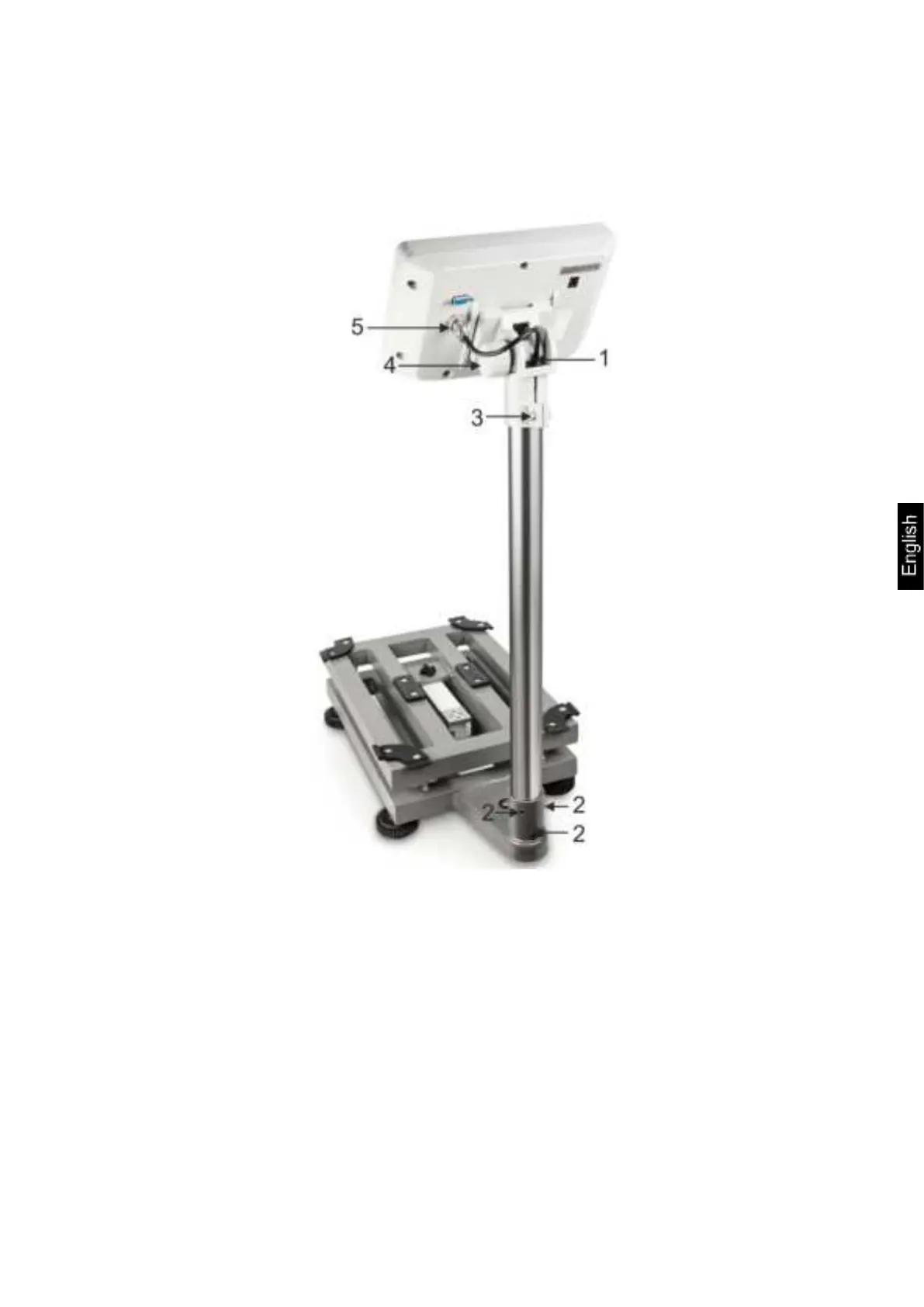

Install the support and display as shown in the figure.
1. The connection cable led through the support
Do not crush or damage the cable.
2. The holder fixed with three bolts
3. Bolt for display fixing
4. Knob for display positioning
5. Connection cable connected to the terminal
Place the scale on smooth surface.
