24 KFB/KFN-TM-BA_IA-e-1624

KFN-TM:

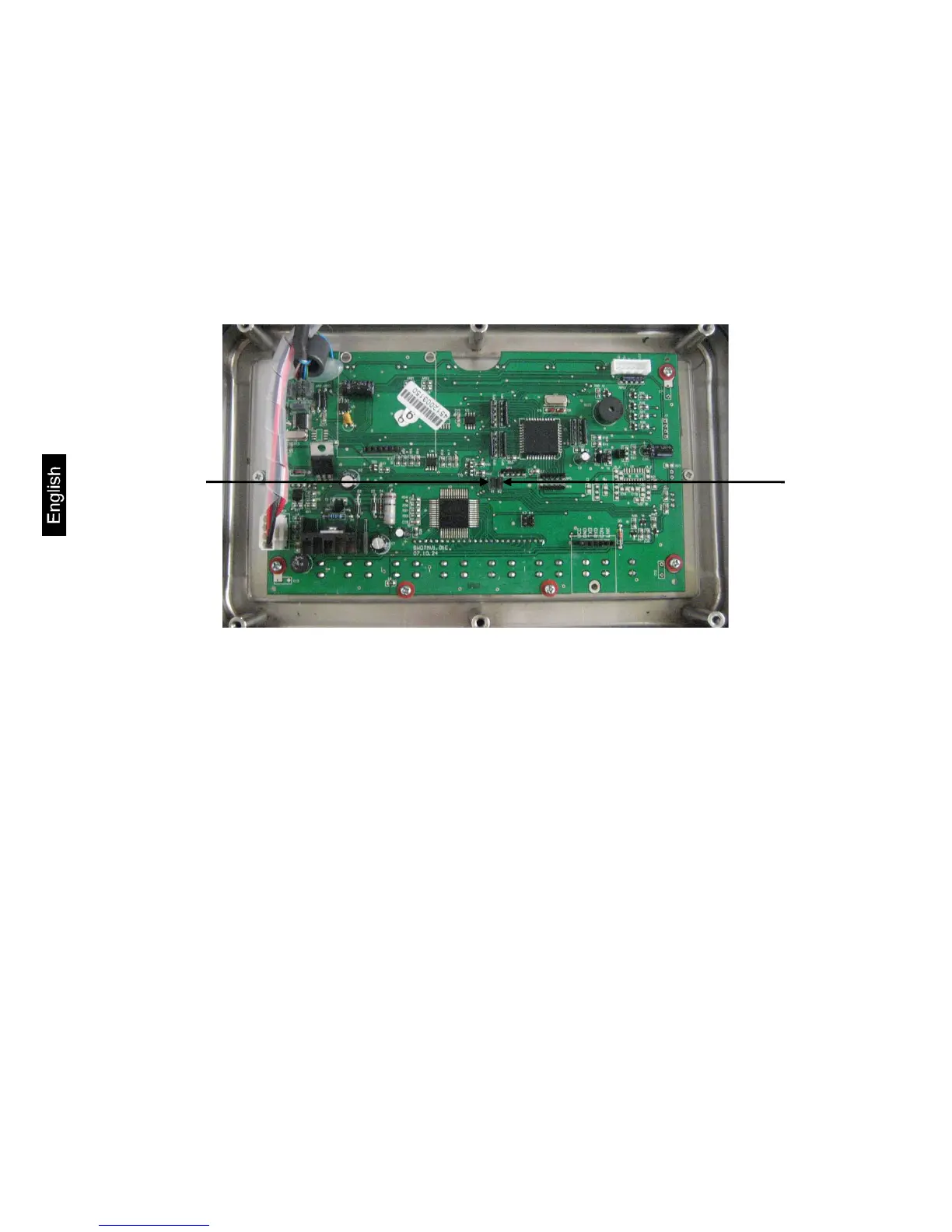

Access to conductor plate:

• Remove seal

• Open display unit

• The application of the display unit as a weighing system able to be verified

requires that the contacts of the circuit board are short-circuited with the help

of a jumper [K1]. For non verifiable weighing systems remove the jumper.

• To adjust, short-circuit the contacts of the circuit board, using a jumper [K2].

[K1]

[K2]
