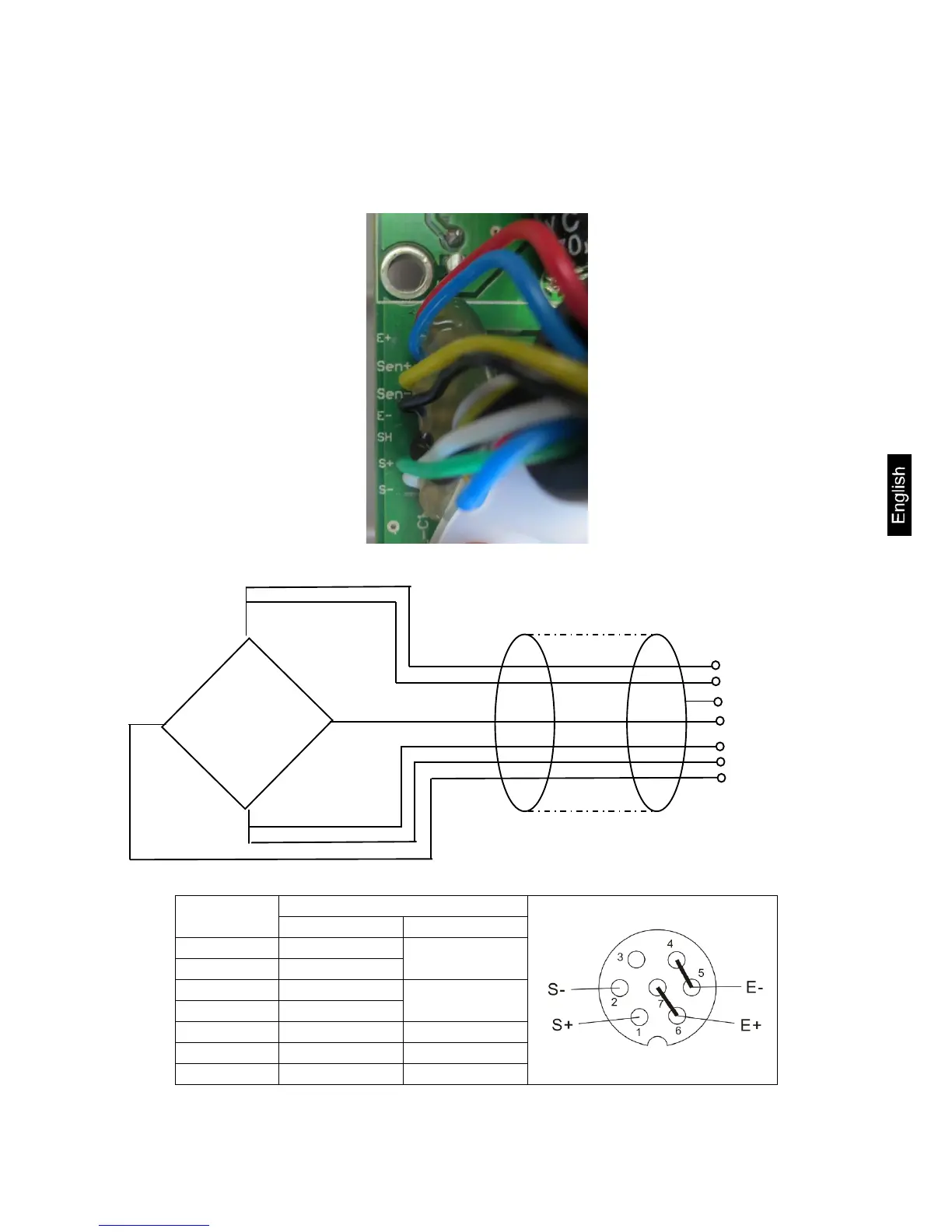

12.3 How to connect the platform
 Disconnect the display unit from the power supply.
 Solder the individual leads of the load cell cable onto the circuit board. See
diagrams below.
PIN
Loadcell
6- conductor
4- conductor
7
EXC+
EXC+
6
SEN+
5
EXC-
EXC-
4
SEN-
3
SHIELD
SHIELD
2
SIG-
SIG-
1
SIG+
SIG+
EXC+
SEN+
SEN-
EXC-
SIG+
SIG-
SHIELD
7
6
3
2
5
4
1
LOAD
CELL
