12 Data output RS 232C
12.1 Technical Data
• 8-bit ASCII Code
• 8 data bits, 1 stop bit, no parity bit
• Baud rate optional from 1200 - 9600 Baud
• For operation with interface faultless operation is only ensured with the correct
KERN – interface cable (max. 2m)

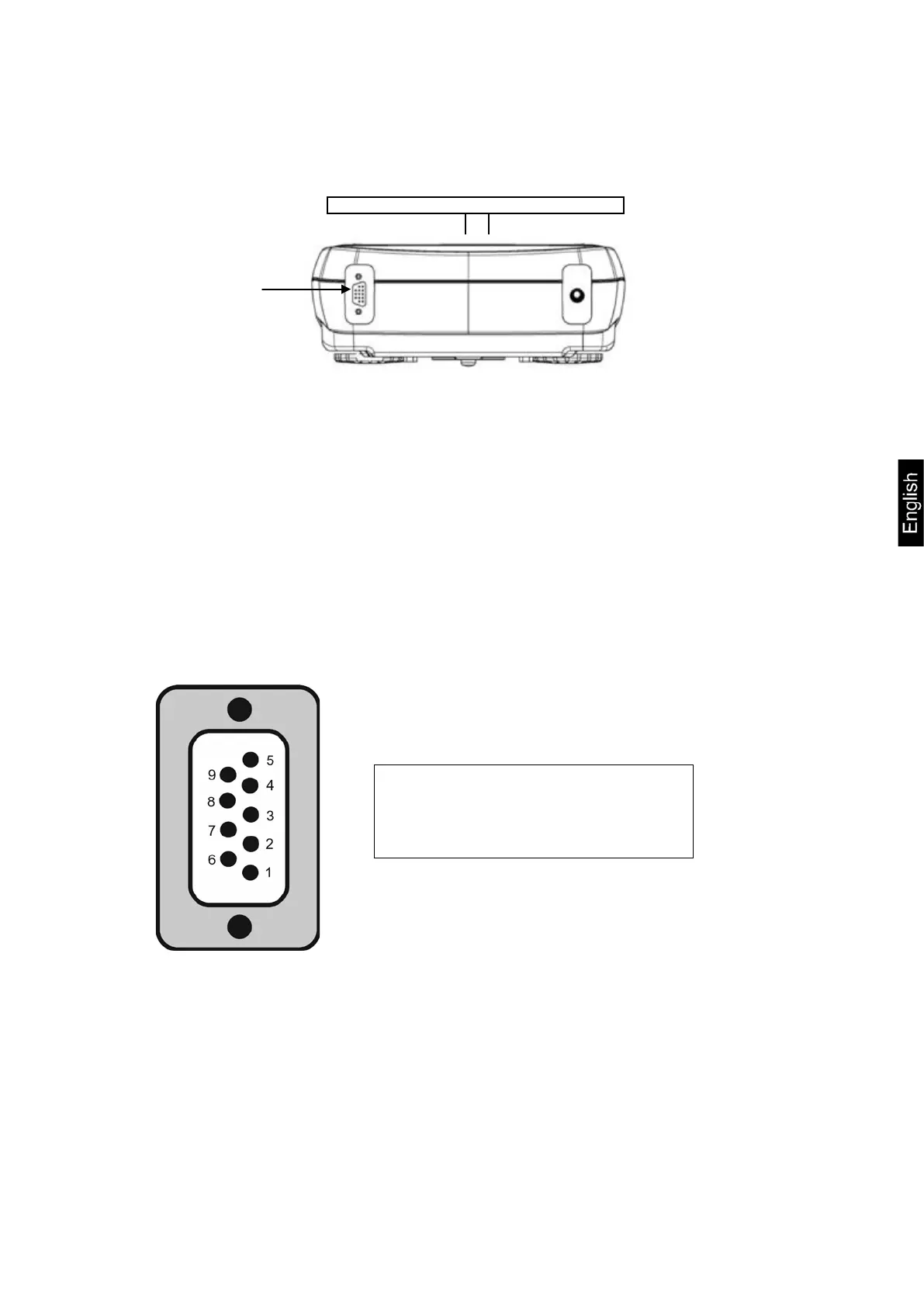

12.2 Pin allocation of balance output plug
Pin 2 Tx Signal
Pin 3 Rx Signal
Pin 5 GND
