116 PRS/PRJ/ARS/ARJ-BA-def-0622

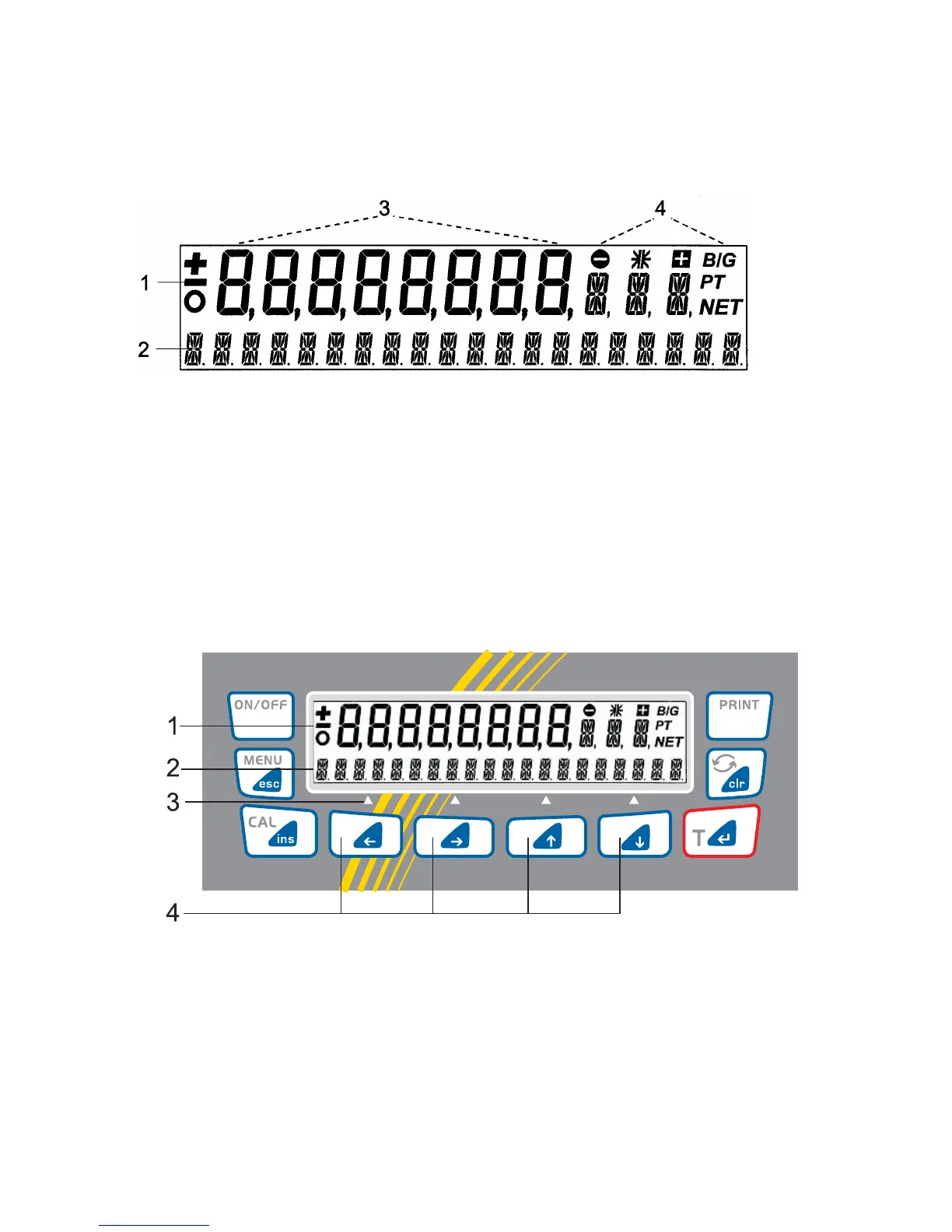

7.5.4 Display
The balance display has two lines (1 and 2).
The upper display-line (1) includes the 8-digit measurement display (3) as well as various
symbols (4).
The lower line (2) serves as a 20-character info-line and is used in conjunction with the
cursor keys to control the working programs.
7.5.5 Info-line and function keys
If an application (working program) is used, then as well as the measurement display (1),
the four column info-line also appears at the bottom edge of the display.
Any function displayed in the info-line corresponds to the function key which is directly
below it (marked by G (3)).
The cursor keys (4) “Õ”, “Ö”, “×” and “Ø” serve as function keys in the applications.
These initiate the functions displayed in the info-line (2).
