FIXING GEAR - MOTOR
Take the lid off unscrewing the
screws (fig.5).
Put the gear-motor on the plate (fig.8).
(fig.6).
Screw bolts to the 2 screws
It is important to lock the two screwsi
M12
forcefully, making sure, that the
gear-motor is steady on the ground,
during the whole gate running.
If the regulating allowed by the rack
is not sufficent, it is possible to
counterbalance the gear-motor high
working on the four screws (fig.7).
Mark Well: We suggest a further fixing of the screws, after some motor handlings.

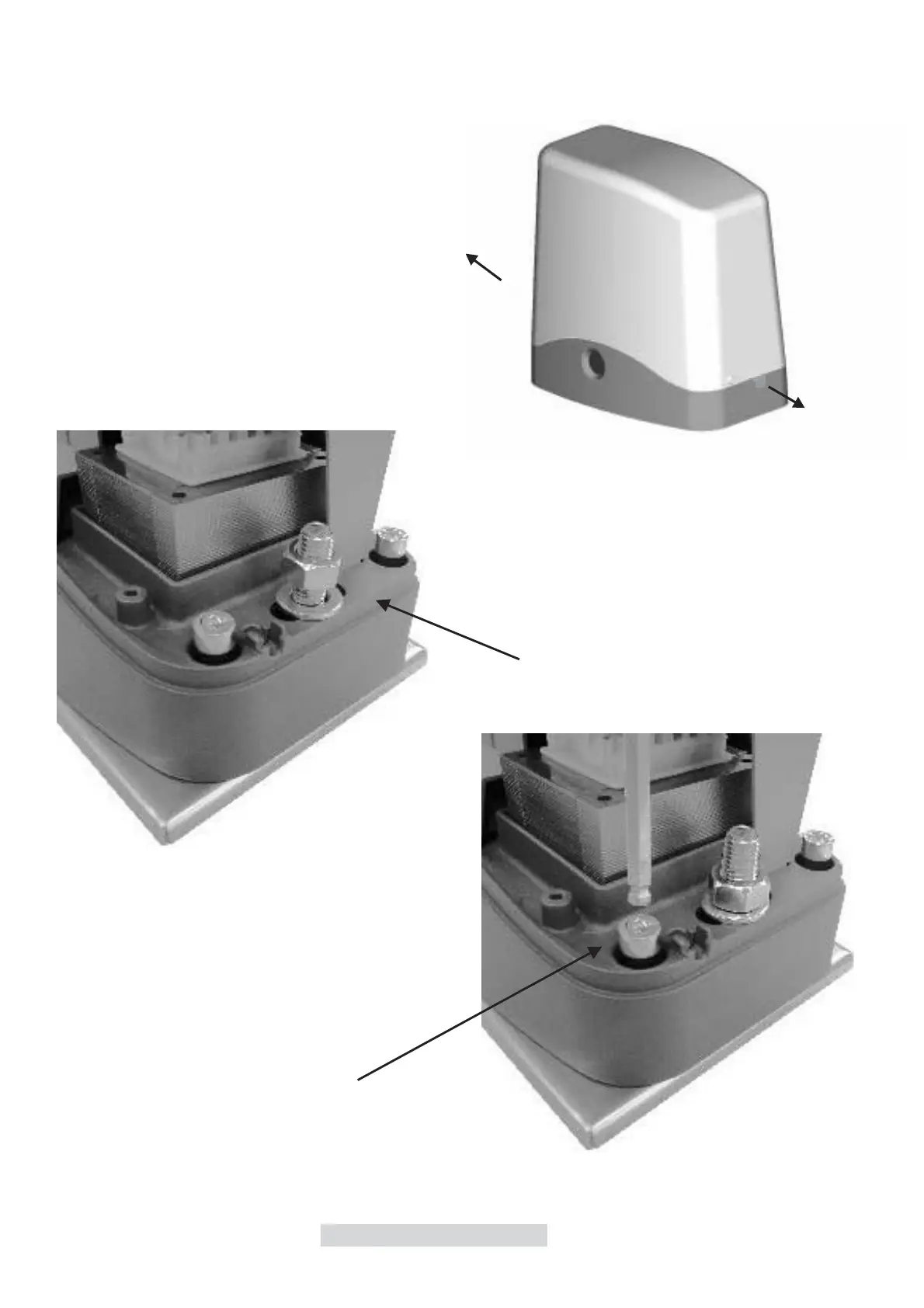

fig.5
