Key-Disp KD986 - Specifications; Appearance and Size; Display Appearance and Dimensions

1
Product name and model
Name: Intelligent TFT display for E-bike
Model: KD986
Specifications
●36V/48V Power Supply
●Rated working current: 10mA
●The maximum working current: 30mA
●Off-state leakage current: <1μA
●Operating temperature: -20℃~ 60℃
●Storage temperature: -30℃~ 70℃
Appearance and Size

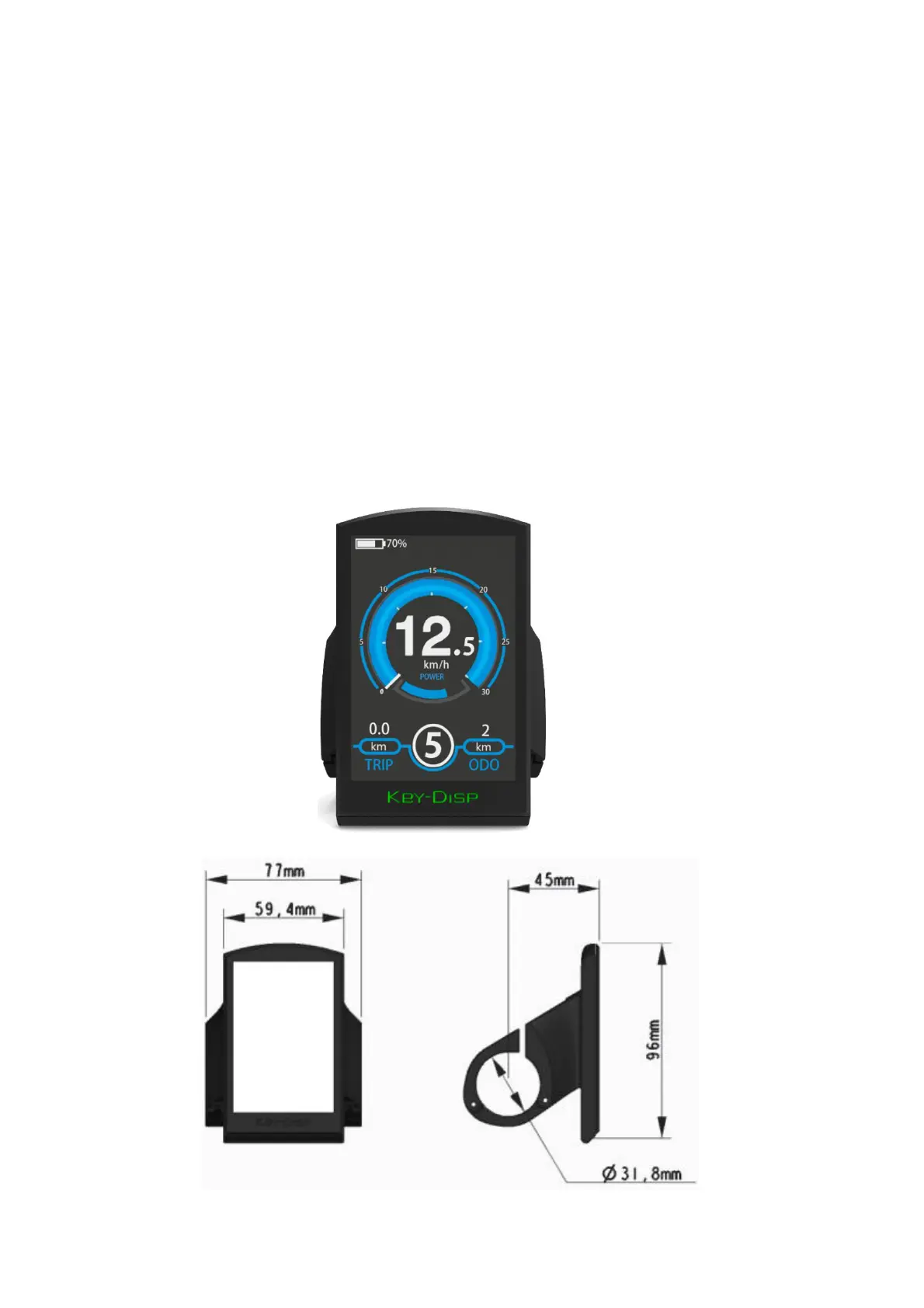

◆Display appearance and dimensional drawing (unit: mm)
