Keyscan CA8WL-AL - Figure 19 - LAN with no Public Exposure

Keyscan Inc. A Member of the Kaba Group – CA8WL-AL Rev. B Installation Guide (07.15)
40

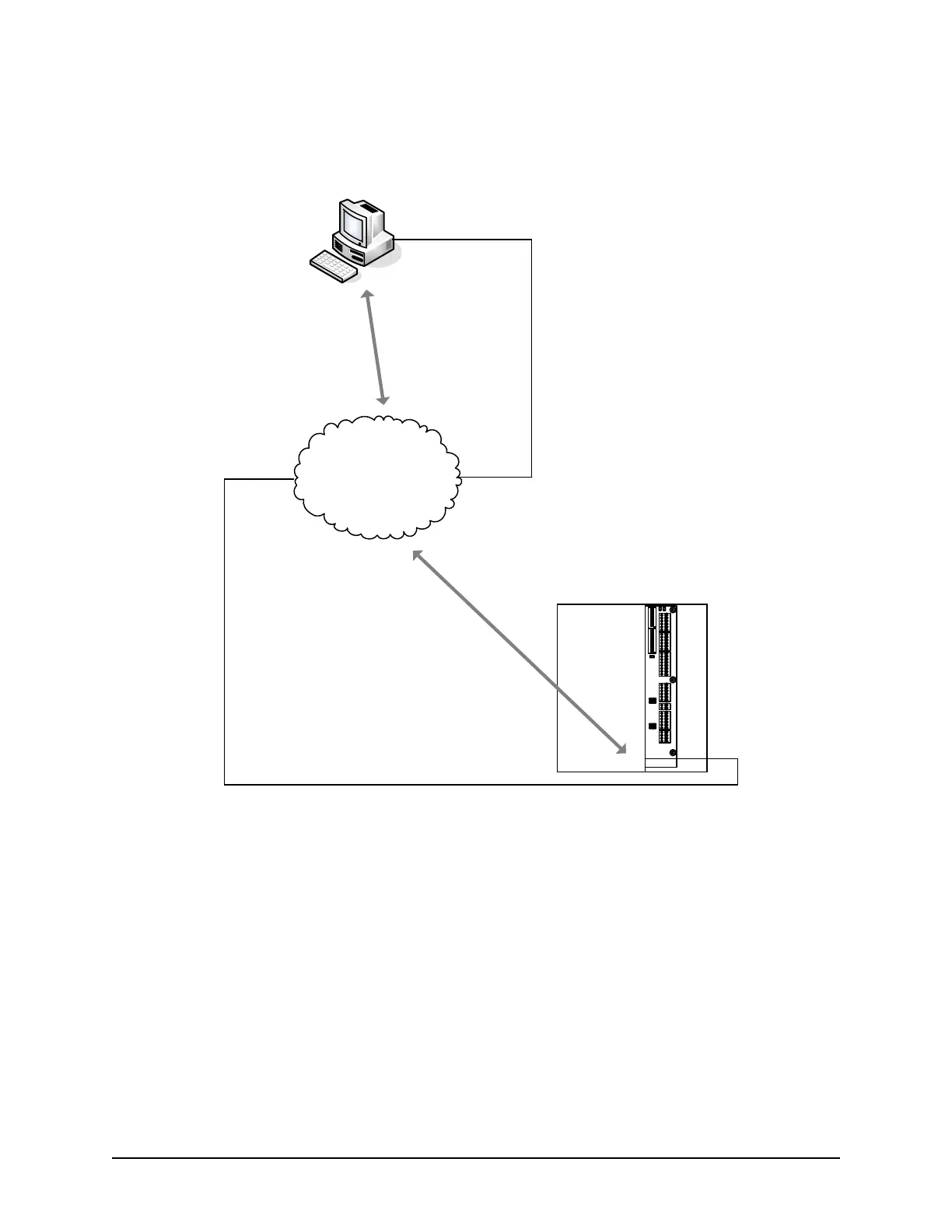

Figure 19 - LAN with no public exposure
Host
Location
Remote Access
Control Location
LAN
CA8WL-AL Encrypted
Ethernet Module
Internal Static IP: 192.168.0.4
Encryption Key: 12345678
12345678 12345678 12345678
RN Port: 3001
CA8WL-AL Control Board
Reverse Network Programming:
- PC/Server internal IP:
192.168.0.2
RN Port: 3001
PC/Server with RN Encrypted Communication Manager
- Communication manager runs as a service
- Internal IP 192.168.0.2
- Port 3001
- Encryption key: 12345678 12345678 12345678 12345678
IP Addresses
The IP addresses in this illustration
are merely shown as examples.
