Keyscan CA8WL-AL - Figure 5 - System Configuration DIP Switches S1.1 - S1.12

Keyscan Inc. A Member of the Kaba Group – CA8WL-AL Rev. B Installation Guide (07.15)
16

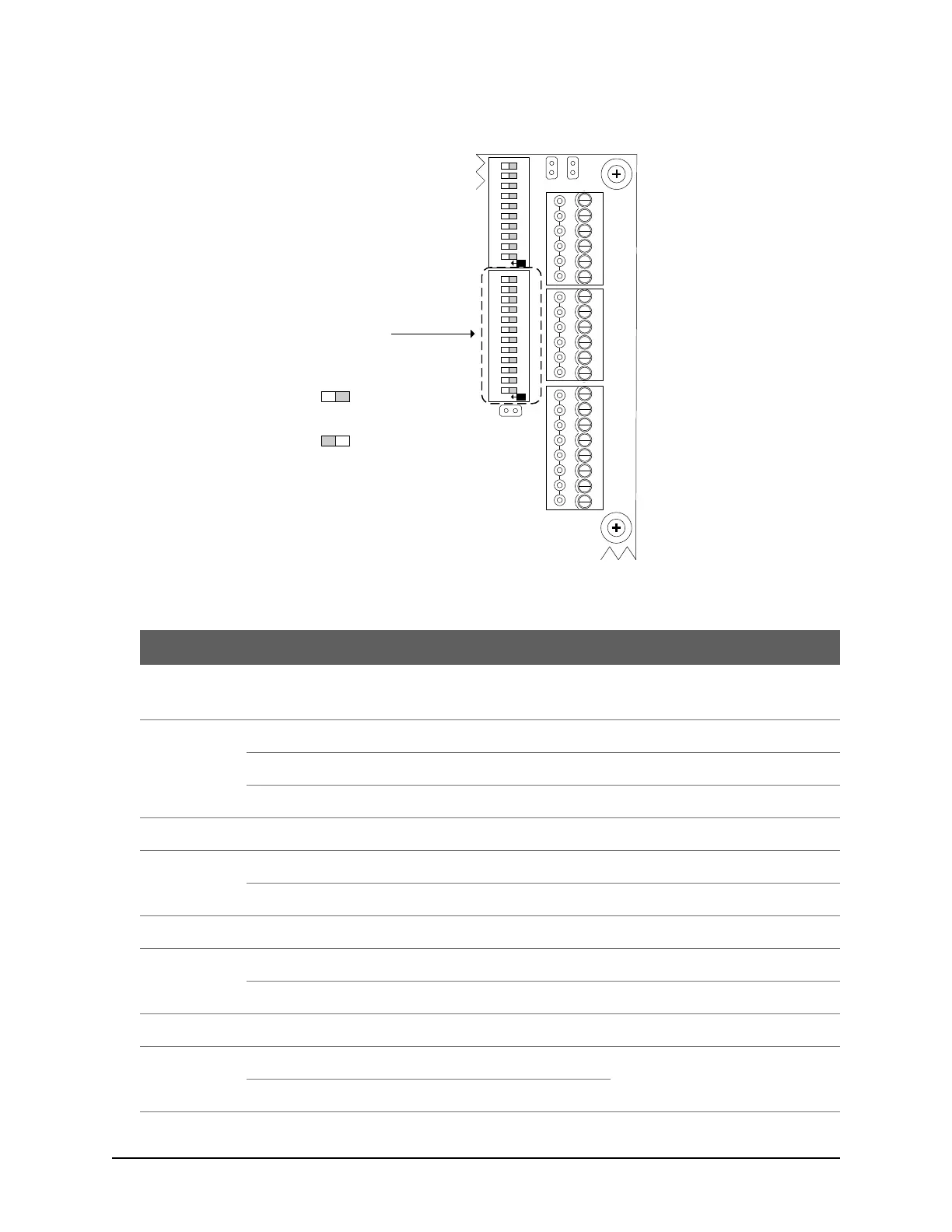

Figure 5 – System Configuration DIP Switches S1.1 – S1.12
Table 1 – System Configuration DIP Switch S1 Settings
S1 Switch #
Setting
Function
Notes
S1.1
0 = Off
1 = On
Communication Mode
0
Serial Communication – standard polling
Also see S1.10 & S1.11 in the table.
0
Network Communication – standard polling
As above.
1
Reverse Network Communication
Requires a license from Keyscan.
S1.2
Communication Bit Rate
0
115,200 bit/s
1
57,600 bit/s
S1.3
P3 Card Lockout
0
Enabled
1
Disabled
S1.4
Alternate Panel Serial # Selection
0
Factory-assigned serial #
Only set DIP switch for alternate serial
number if prompted in the Client
software when adding a panel.
1
Adds 1000 to factory-assigned serial #
