1 Getting Started
44 Keysight E364xA User’s and Service Guide
Voltage and current limit settings
You can set the voltage and current limit values from the front panel using the
following method.

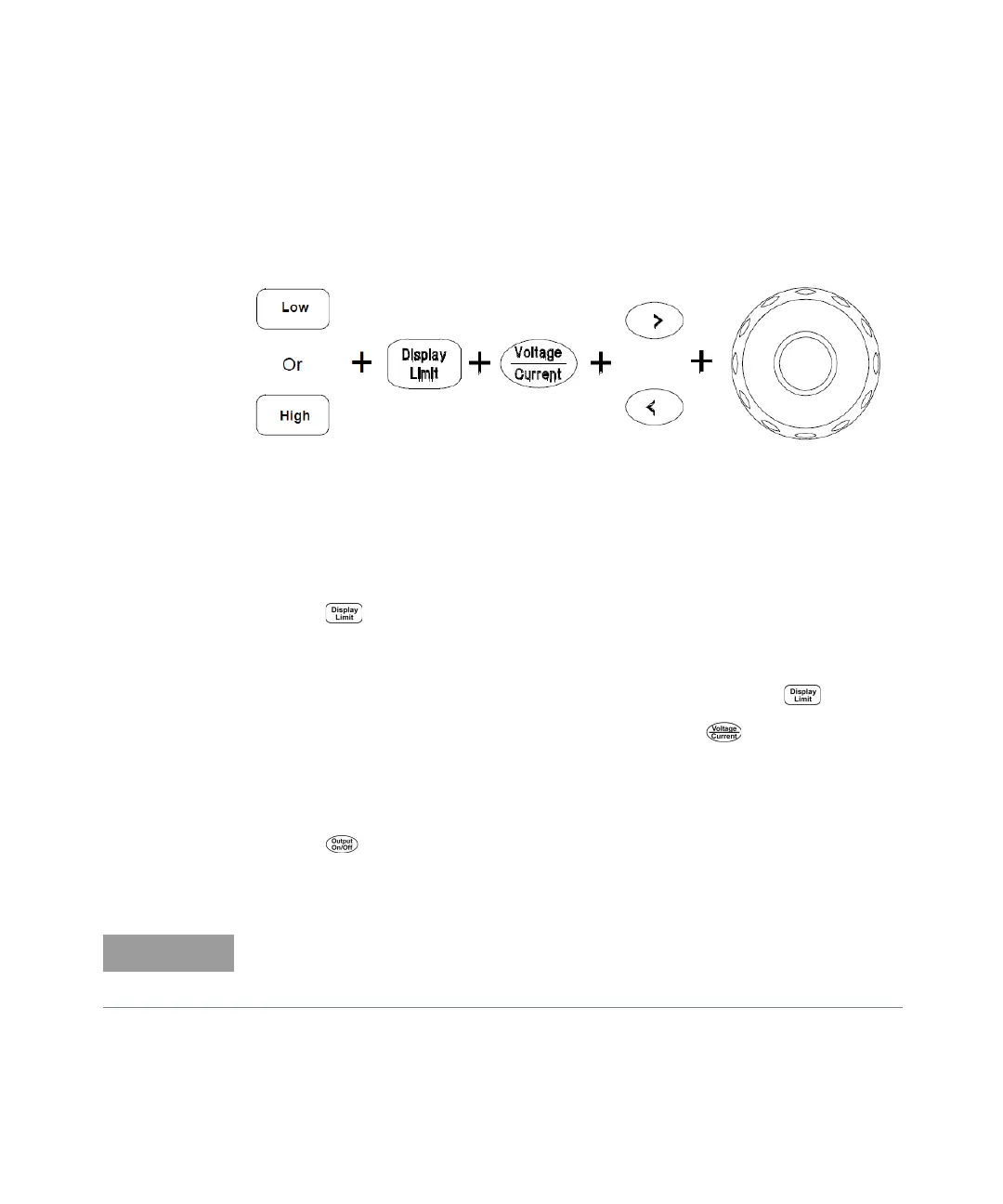

Figure 1-4 Voltage and current limit settings
1 Select the desired voltage range using the voltage range selection keys after
turning on the power supply.
2 Press to show the limit values on the display.
3 Move the blinking digit to the appropriate position using the resolution
selection keys and change the blinking digit value to the desired voltage limit
by turning the control knob. If the display limit times out, press again.
4 Set the knob to the current control mode by pressing
5 Move the blinking digit to the appropriate position using the resolution
selection keys and change the blinking digit value to the desired current limit
by turning the control knob.
6 Press to enable the output. After about 5 seconds, the display will go to
the output monitoring mode automatically to display the voltage and current
at the output.
All the front panel keys and controls can be disabled with the remote interface
commands. The power supply must be in the Local mode for the front panel keys
and controls to function.
