Keysight N9927-90001 User’s Guide 397
On–the–Box Mapping – Option 352 (Requires Spectrum Analyzer Mode (Option 233 on
N991xB), GPS (Option 307) and GPS Receiver (Option 307))
How to Set Up Mapping Settings

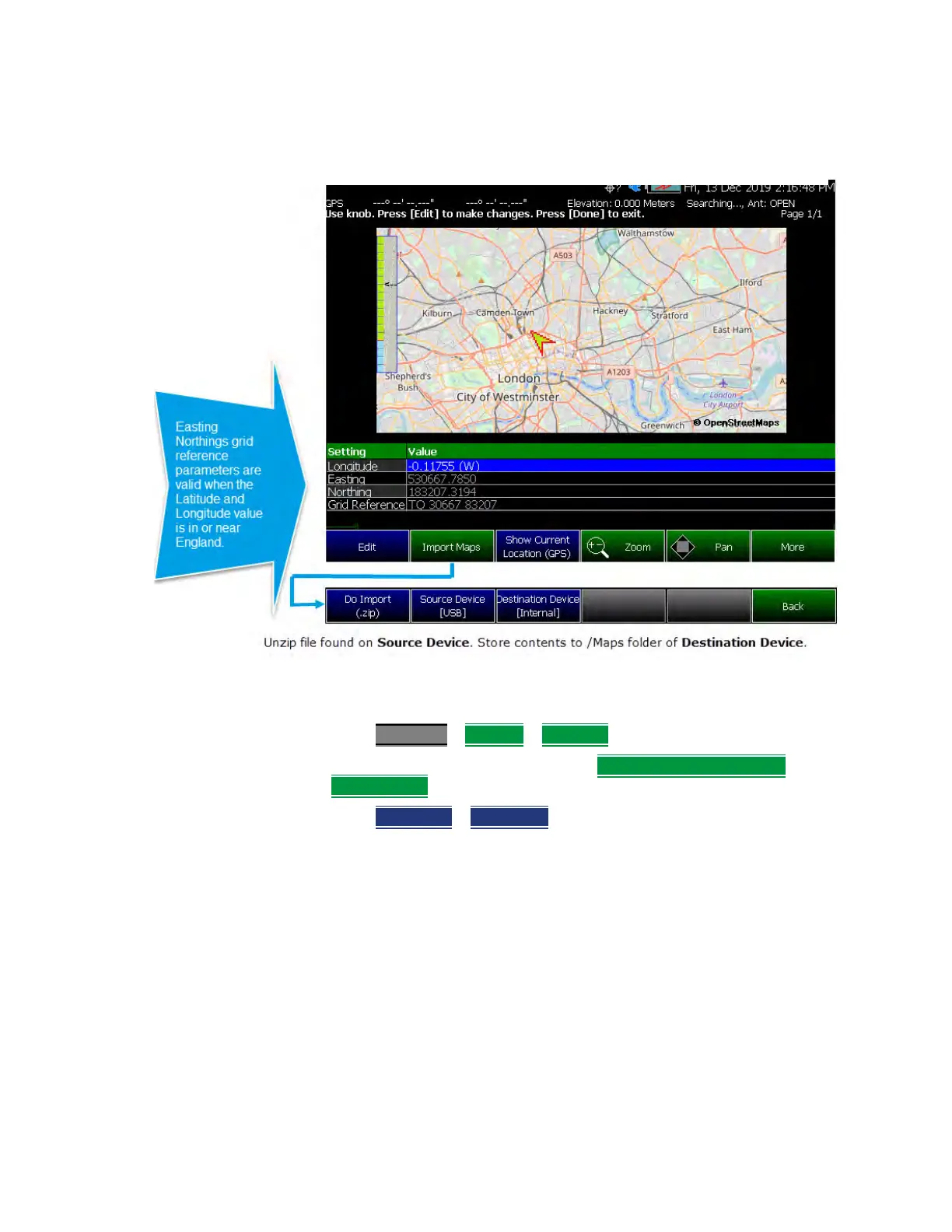

Figure 15-16 Example of England Displayed Text
3. Else, to import a *zip file (i.e., you can come back and do this later after
the mapping route is defined).
a. Press System 7
> Utilities > Mapping
b. Then to import map pictures, press Map Explorer (Get Maps)
>
Import Maps
c. Press Do Import > Recall File and change latitude and longitude
values to view site maps from pictures (KML).
4. If not done, connect your equipment similar to Chapter 13, “5G Rapid
Prototype Phased Array Antenna – Option 360”, Chapter 14, “USB
Antennas – (Full Capability Requires EMF Option 358, and SA mode
(Option 233 Mixed Analyzers))”, and to Figure 1 on page 333
See also,
— For setting up GPS Option 307, refer to Chapter 29, “System
Settings,” and then “GNSS (GPS+) and GPS” on page 650.
— For setting up a phased array antenna, refer to Chapter 13, “5G
Rapid Prototype Phased Array Antenna – Option 360.”
Import ZIP file using FieldFox Map Support Tool with Do Import softkey
