136 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

9 Labels

2 To turn the labels off, press the [Label] key again.

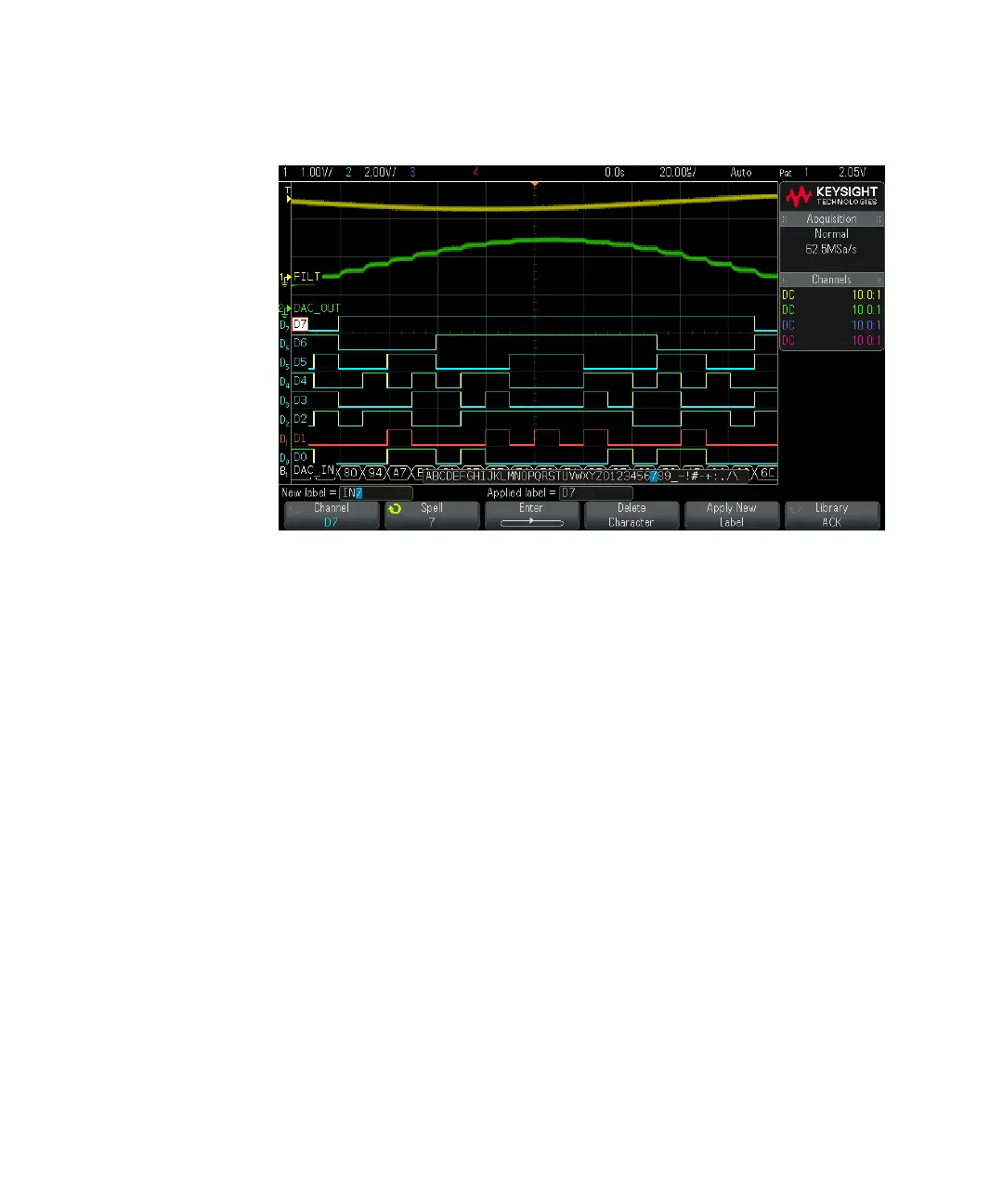

To assign a predefined label to a channel

1 Press the [Label] key.

2 Press the Channel softkey, then turn the Entry knob or successively press the

Channel softkey to select a channel for label assignment.
