4 Math Waveforms
information on leakage, see Keysight Application Note 243, The Fundamentals of
Signal Analysis at
http://literature.cdn.keysight.com/litweb/pdf/5952-8898E.pdf.
Square Root
Square root (√) calculates the square root of the selected source.
Where the transform is undefined for a particular input, holes (zero values) appear
in the function output.
See Also • "To perform transforms or filters on an arithmetic operation" on page 75
• "Units for Math Waveforms" on page 75
Ax + B
The Ax + B function (available with the advanced math measurements license) lets
you apply a gain and offset to an existing input source.

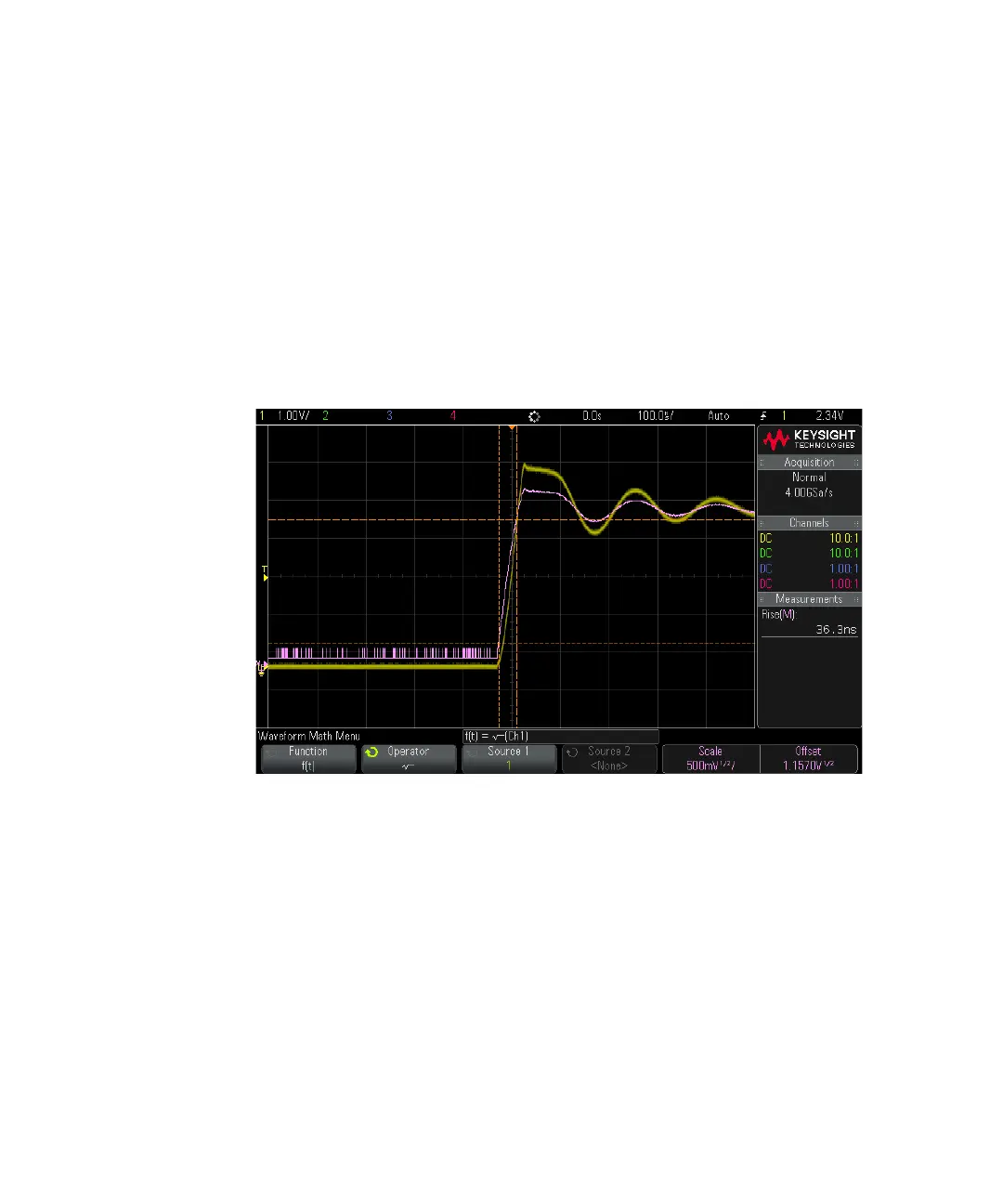

Figure 10 Example of √ (Square Root)
