320 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

21 Web Interface

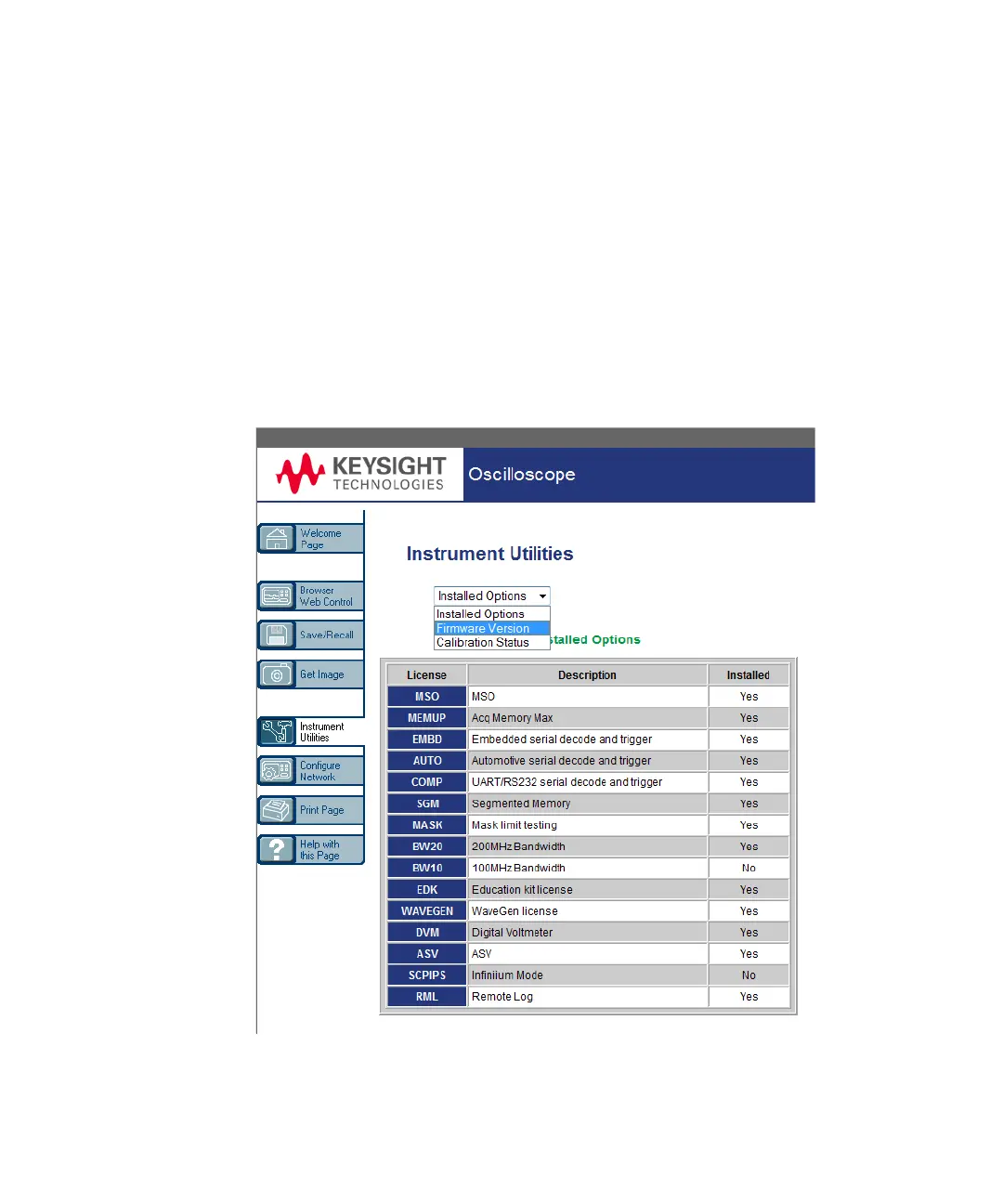

Instrument Utilities

The Instrument Utilities page of the web interface lets you:

• View installed options.

• View firmware versions.

• Install firmware upgrade files.

• View calibration status.

You can select these cababilities via a drop-down menu.
