154 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide
10 Triggers

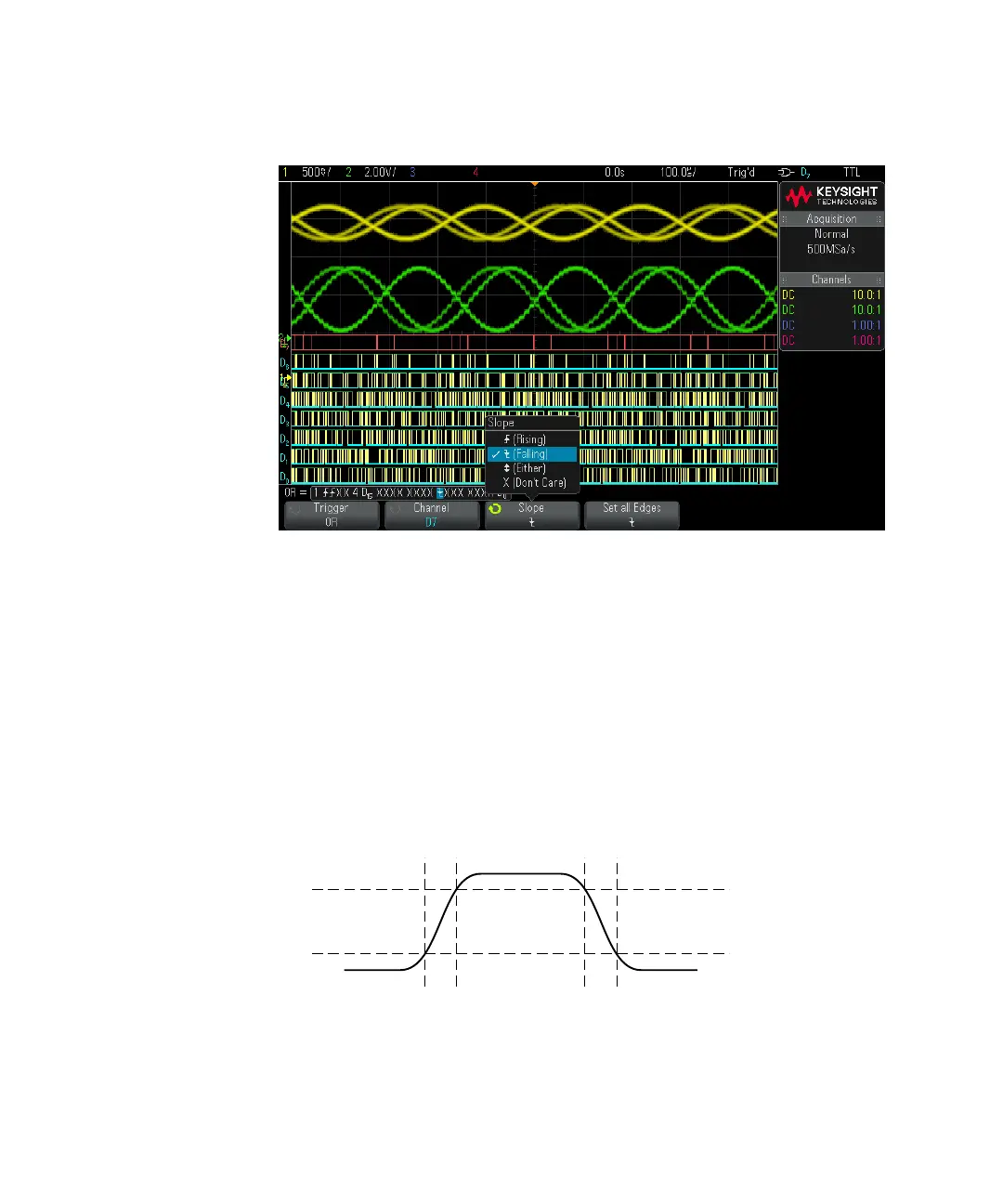

If all channels in the OR trigger are set to don't care, the oscilloscope will not
trigger.
6 To set all analog and digital channels to the edge selected by the Slope softkey,
press the Set all Edges softkey.
Rise/Fall Time Trigger
The Rise/Fall Time trigger looks for a rising or falling transition from one level to
another level in greater than or less than a certain amount of time.
1 Press the [Trigger] key.
High level
Low level
Rising edge time Falling edge time
