Math Waveforms 4

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 91

Use the Gain (A) softkey to specify the gain.

Use the Offset (B) softkey to specify the offset.

The Ax + B function differs from the Magnify math visualization function in that the

output is likey different than the input.

See Also • "Square Root" on page 90

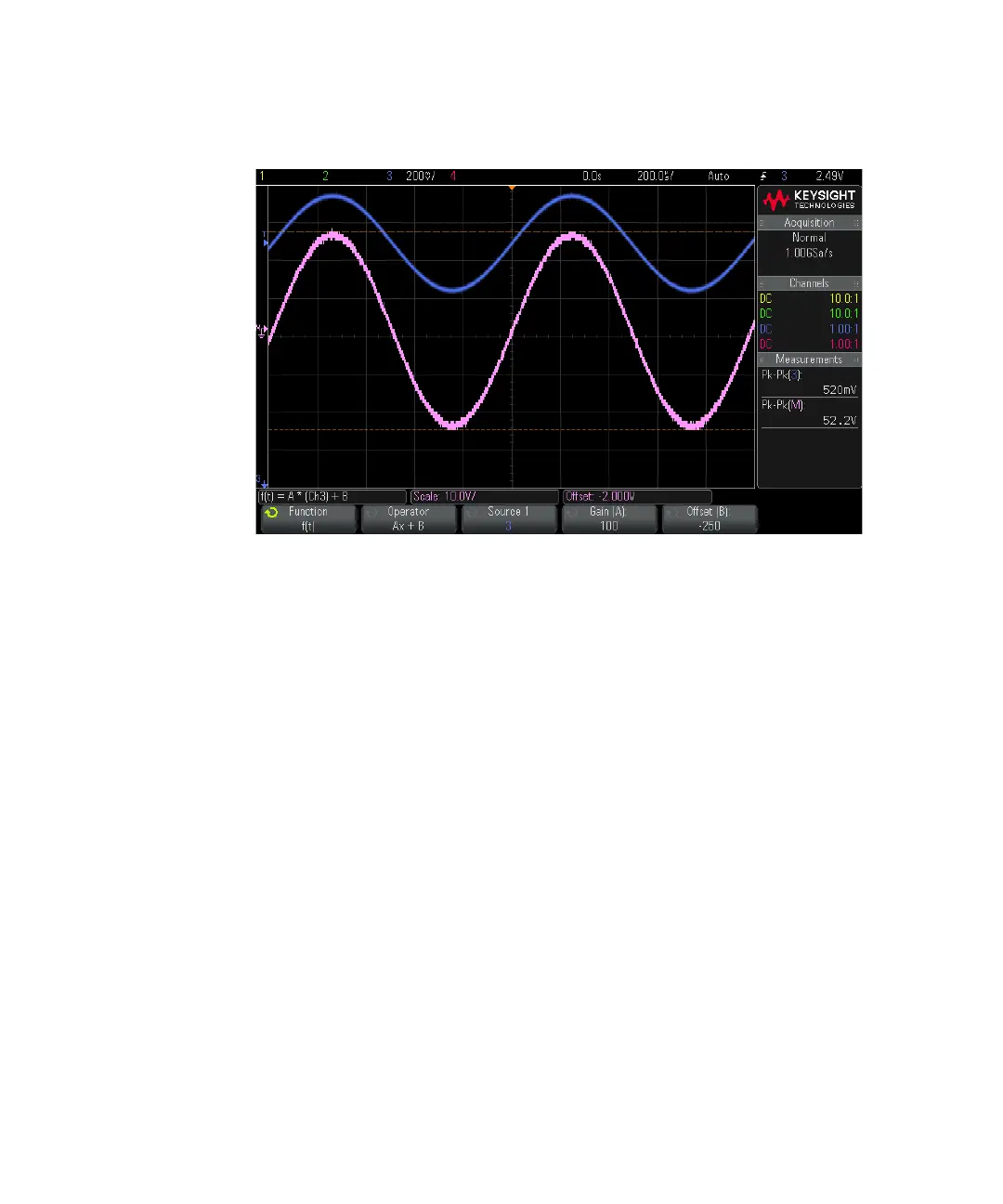

Figure 11 Example of Ax + B
