78 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide
4 Math Waveforms
See Also • "Units for Math Waveforms" on page 75
Math Transforms
Math transforms perform a transform function (like differentiate, integrate, FFT, or
square root) on an analog input channel or on the result of an arithmetic
operation.
• "Differentiate" on page 79
• "Integrate" on page 80
• "FFT Measurement" on page 83
• "Square Root" on page 90
With the advanced math measurements license, these additional transforms are
available:
• "Ax + B" on page 90
• "Square" on page 91

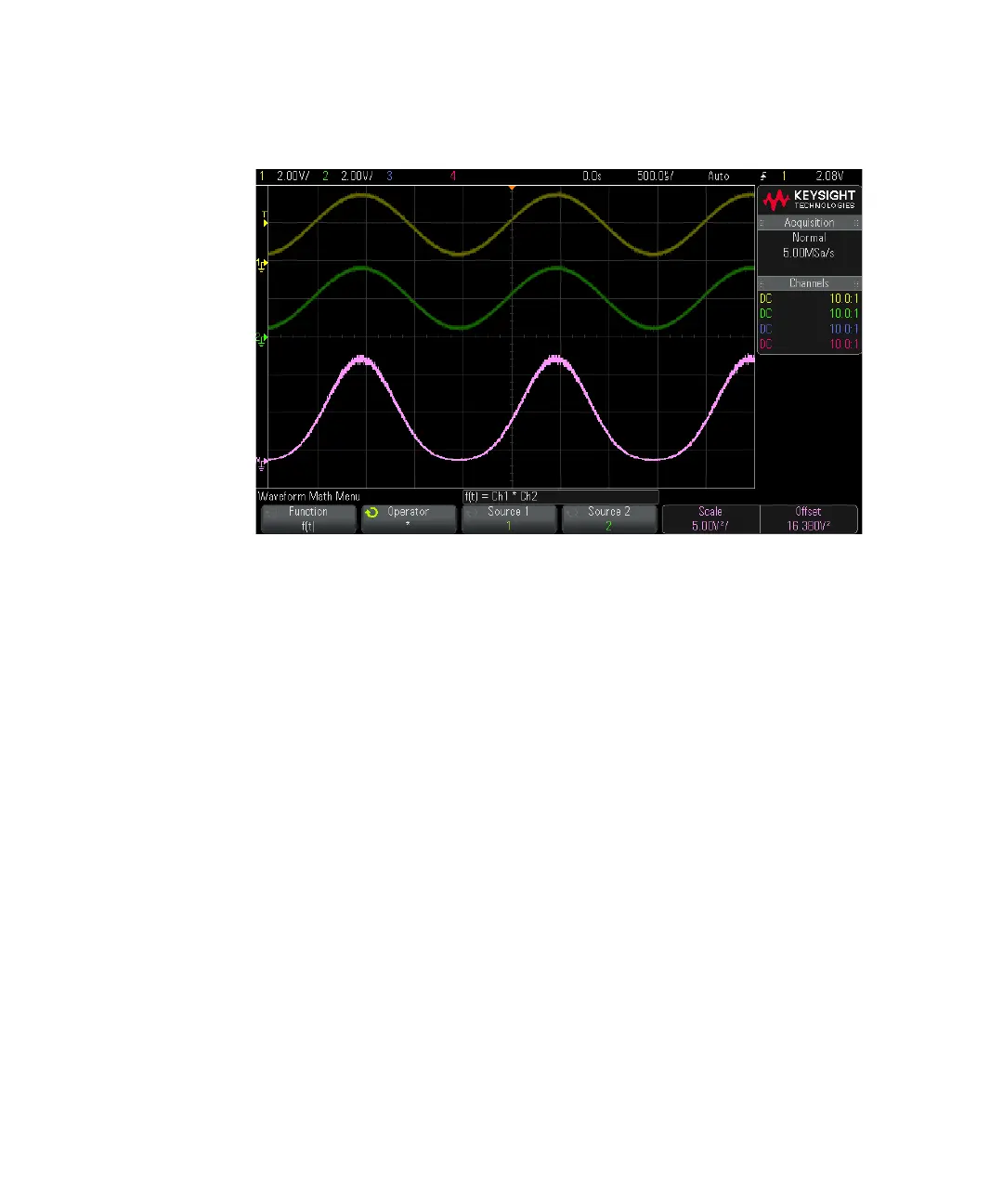

Figure 6 Example of Multiply Channel 1 by Channel 2
