206 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

13 Cursors

Expand the display with Zoom mode, then characterize the event of interest with

the cursors.

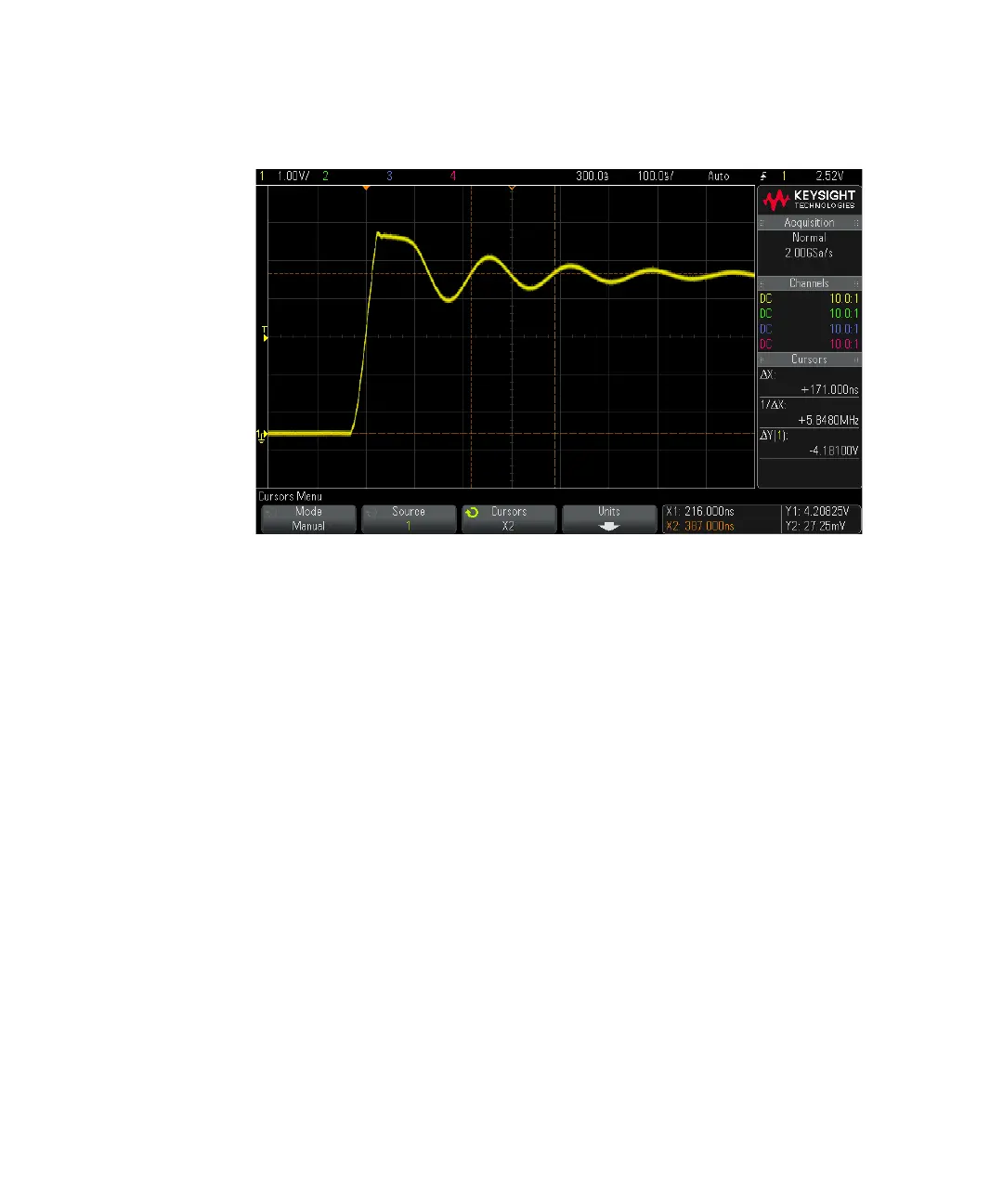

Figure 41 Cursors measure frequency of pulse ringing

Default Chapter4
- Infiniivision 3000 X-Series Oscilloscopes-At a Glance4
- In this Guide6
- Table of Contents9
