1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey; then turn the Entry knob to select the first analog
channel source.
3 Press the Type: softkey; then, turn the Entry knob to select Delay.
4 Press the Settings softkey to select the second analog channel source for the
phase measurement.
The default Phase settings measure from channel 1 to channel 2.
5 Press the Back/Up key to return to the Measurement Menu.
6 Press the Add Measurement softkey to make the measurement.

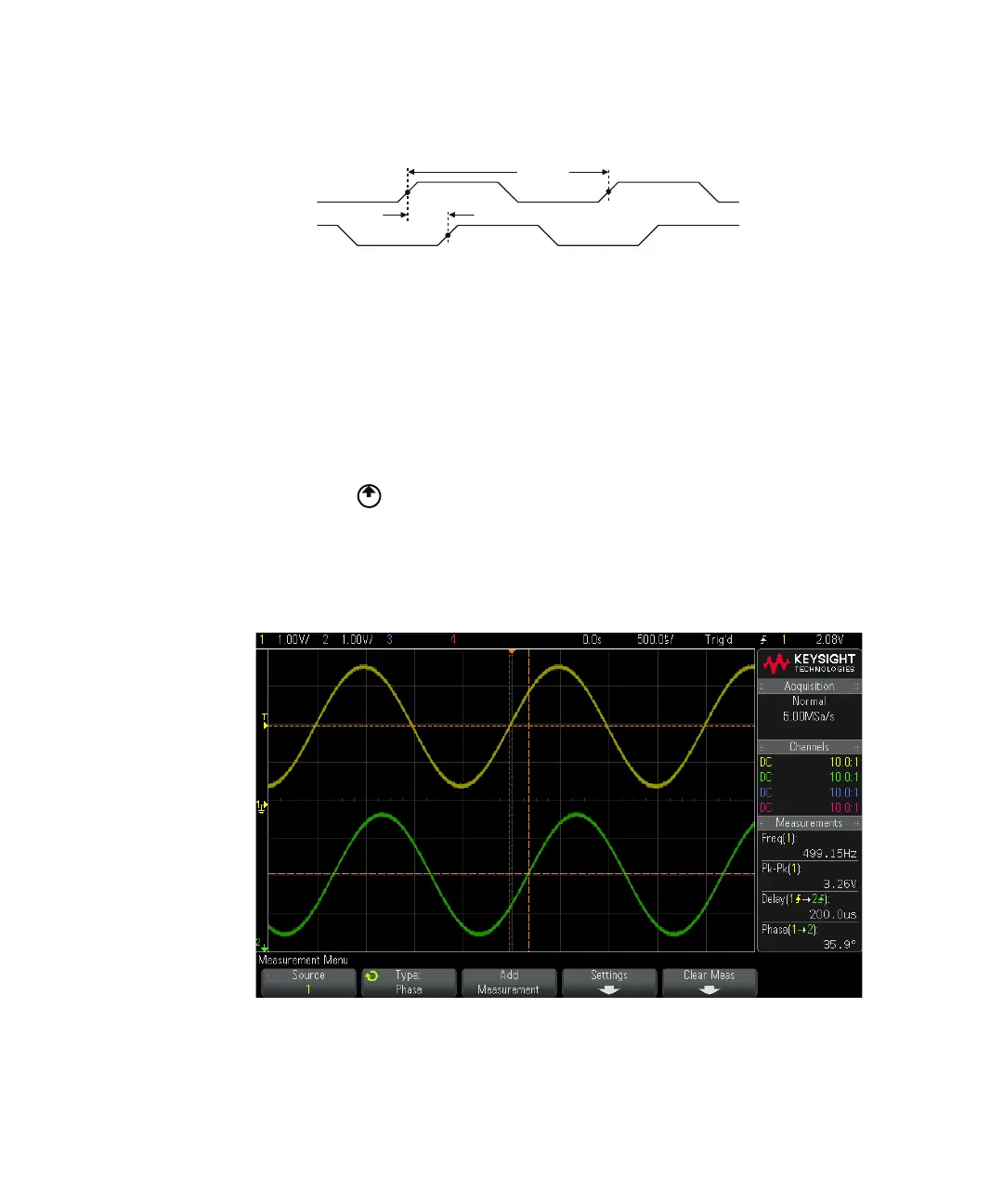

The example below shows a phase measurement between the channel 1 and the
math d/dt function on channel 1.
Source 2
Source 1
Delay
Period
