Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 47

Quick Help remains on the screen until another key is pressed or a knob is turned.

To select the user

interface and

Quick Help

language

To select the user interface and Quick Help language:

1 Press [Help], then press the Language softkey.

2 Repeatedly press and release the Language softkey or rotate the Entry knob until

the desired language is selected.

The following languages are available: English, French, German, Italian, Japanese,

Korean, Portuguese, Russian, Simplified Chinese, Spanish, and Traditional

Chinese.

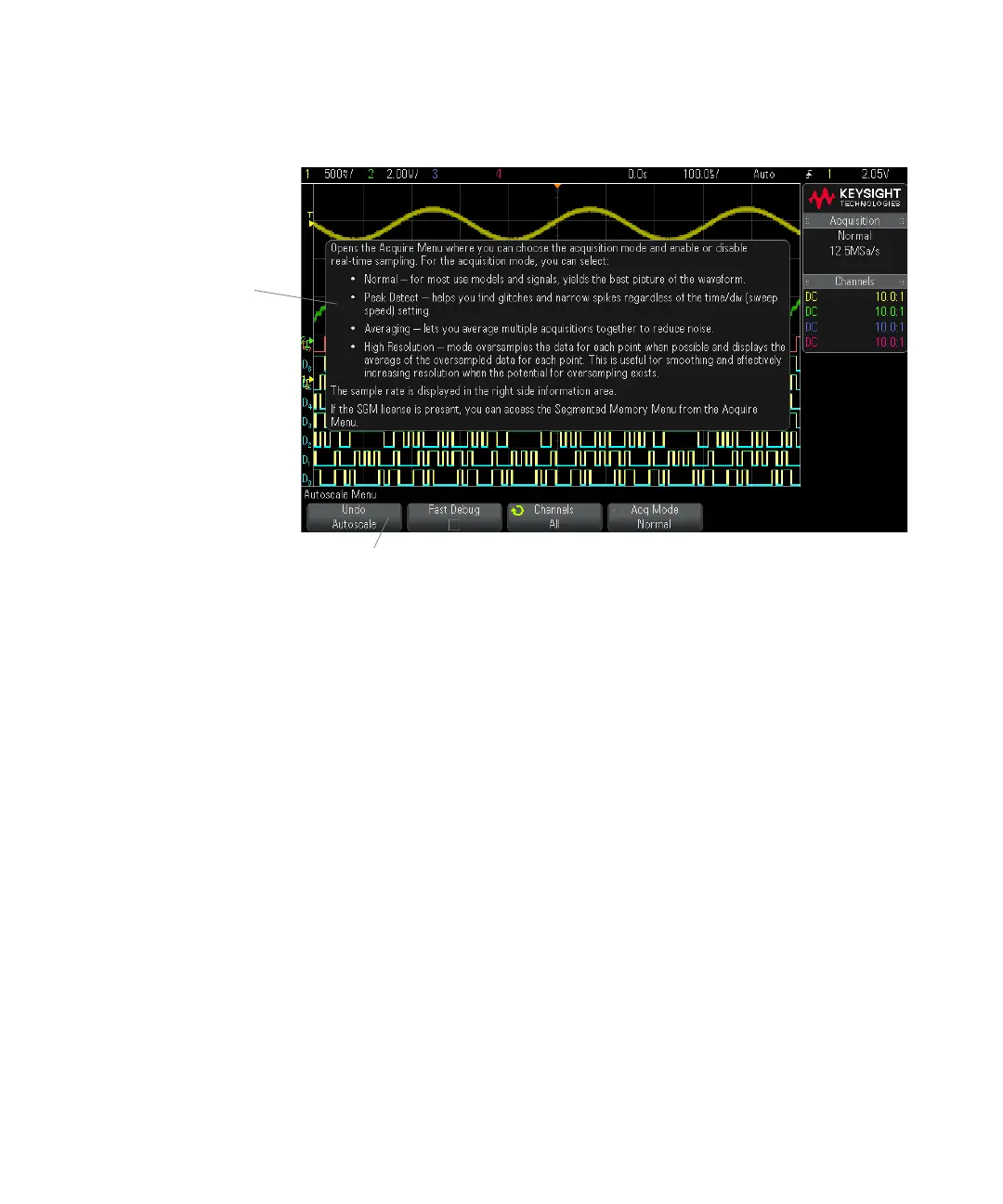

Quick Help

message

Press and hold front panel key or softkey

(or right-click softkey when using web browser remote front panel).
