Math Waveforms 4

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 97

Use the Type: softkey to select the measurement whose trend you want to look at.

You can display trend values for these measurements:

•Average

•RMS - AC

•Ratio

• Period

•Frequency

•+Width

•-Width

• Duty Cycle

•Rise Time

•Fall Time

Use the Thresholds softkey to access the Measurement Threshold Menu. See

"Measurement Thresholds" on page 234.

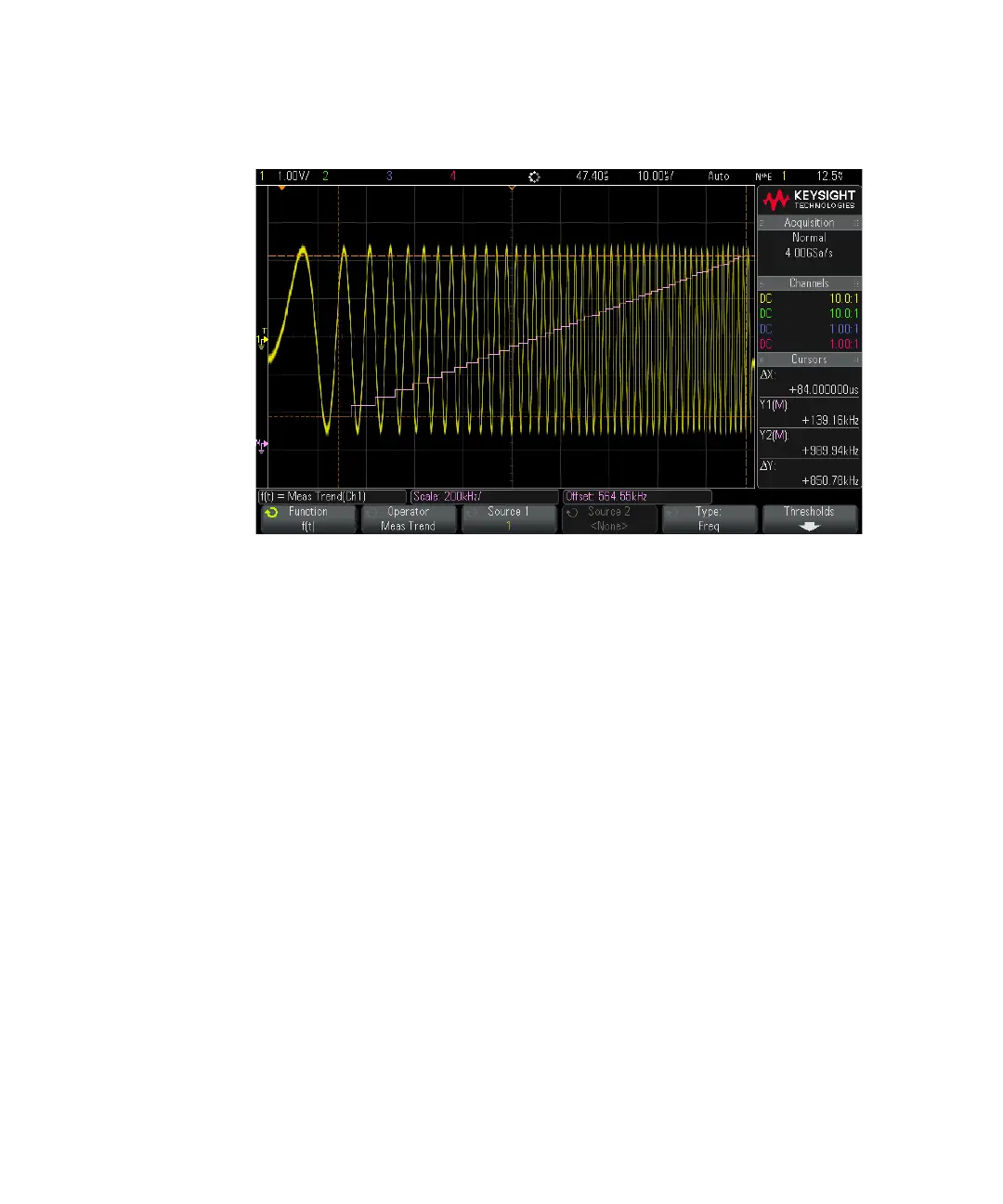

Figure 17 Example of Measurement Trend
