260 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Using ARB Custom Modulation Softkeys

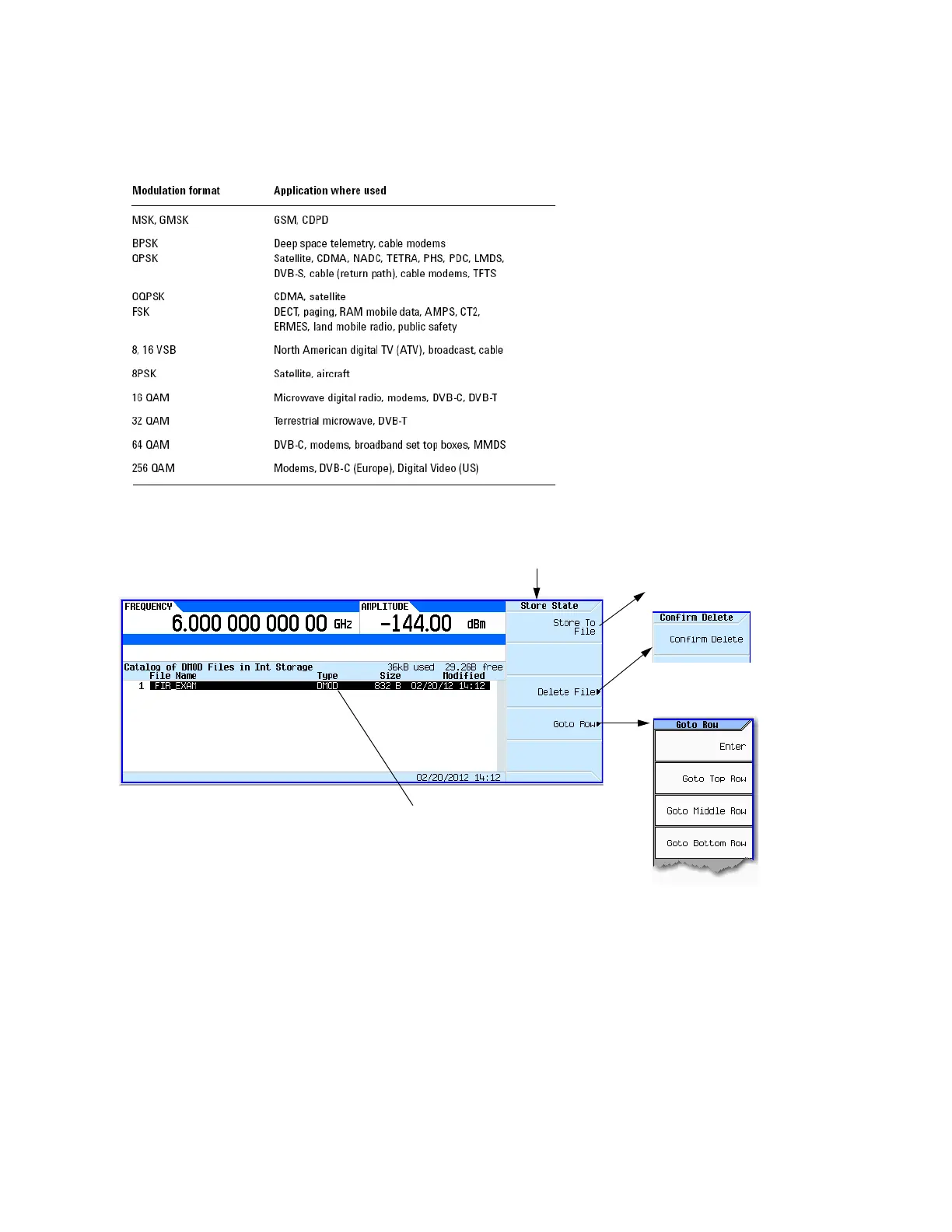

Figure 9-4 Custom Modulation Formats and Applications

Figure 9-5 Store Custom Dig Mod State Softkeys

Catalog displays digital modulation

(DMOD) files that have been previously

saved.

page280

Mode > ARB Custom Modulation > Single Carrier Setup > Store Custom Dig Mod State

For details on each key, use key help as described on page56.

Default Chapter5
