380 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Avionics VOR/ILS Softkeys for N5171B/72B and N5181B/82B with Option 302

Using ILS Glide Slope Softkeys

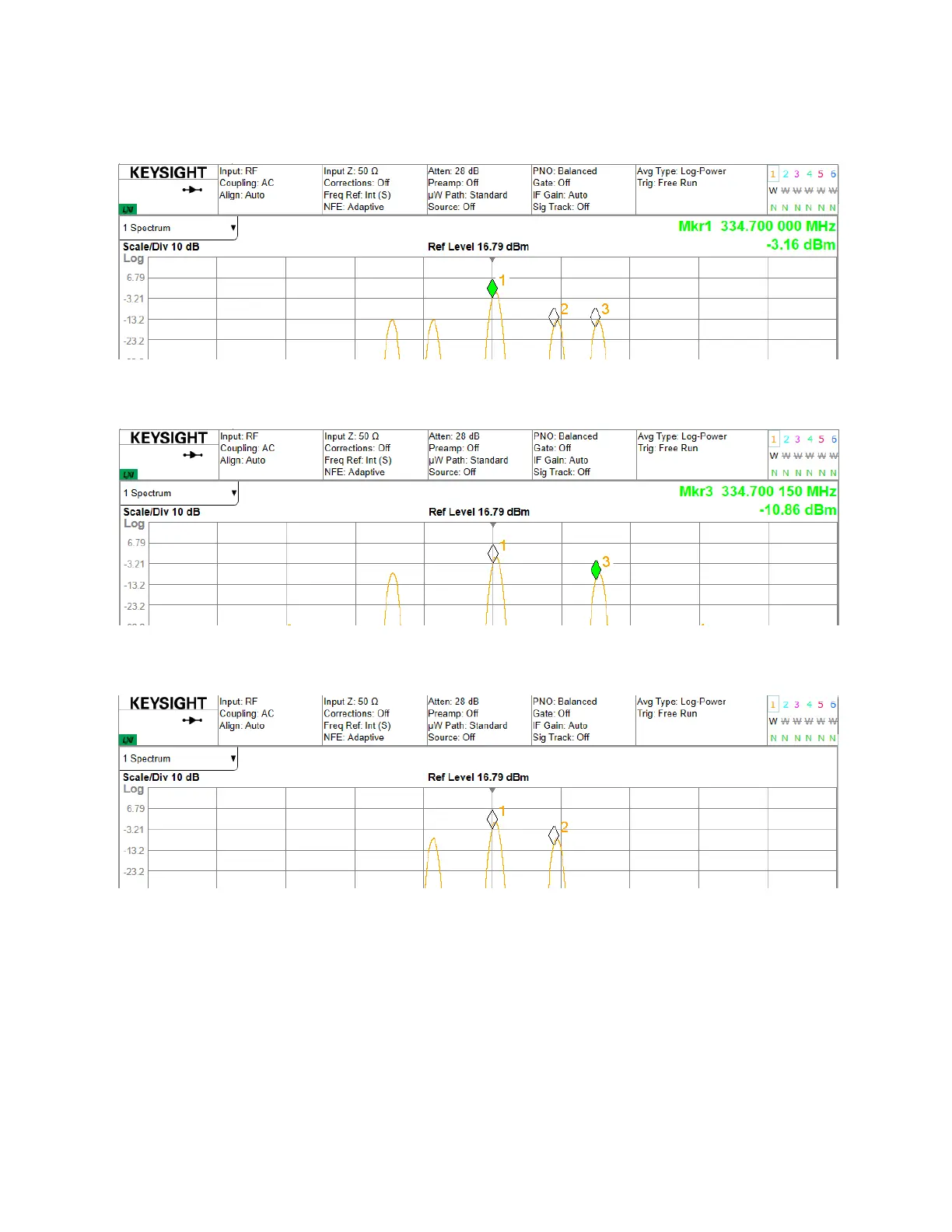

Figure 14-23 ILS Glide Slope 334.7 MHz (1) w/ AM 80% SDM Applied: 90 Hz (2), 150 Hz (3)

Figure 14-24 ILS Glide Slope 334.7 MHz (1) with Suppress Up and AM 150 Hz On (3)

Figure 14-25 ILS Glide Slope 334.7 MHz (1) with AM 90 Hz On (2) and Suppress Down
