Keysight EXG and MXG X-Series Signal Generators User’s Guide 273

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Using Customized Burst Shape Curves

Entering Sample Values

Use the sample values in the following table.

1. Highlight the value (1.000000) for sample 1.

2. Press .4 > Enter.

3. Press .6 > Enter.

4. Enter the remaining values for samples 3 through 6 from the table above.

5. Press Return > Edit Fall Shape > Load Mirror Image of Rise Shape >

Confirm Load Mirror Image Of Rise Shape.

This changes the fall shape values to a mirror image of the rise shape values, as shown in

Figure 9-15 on page 273.

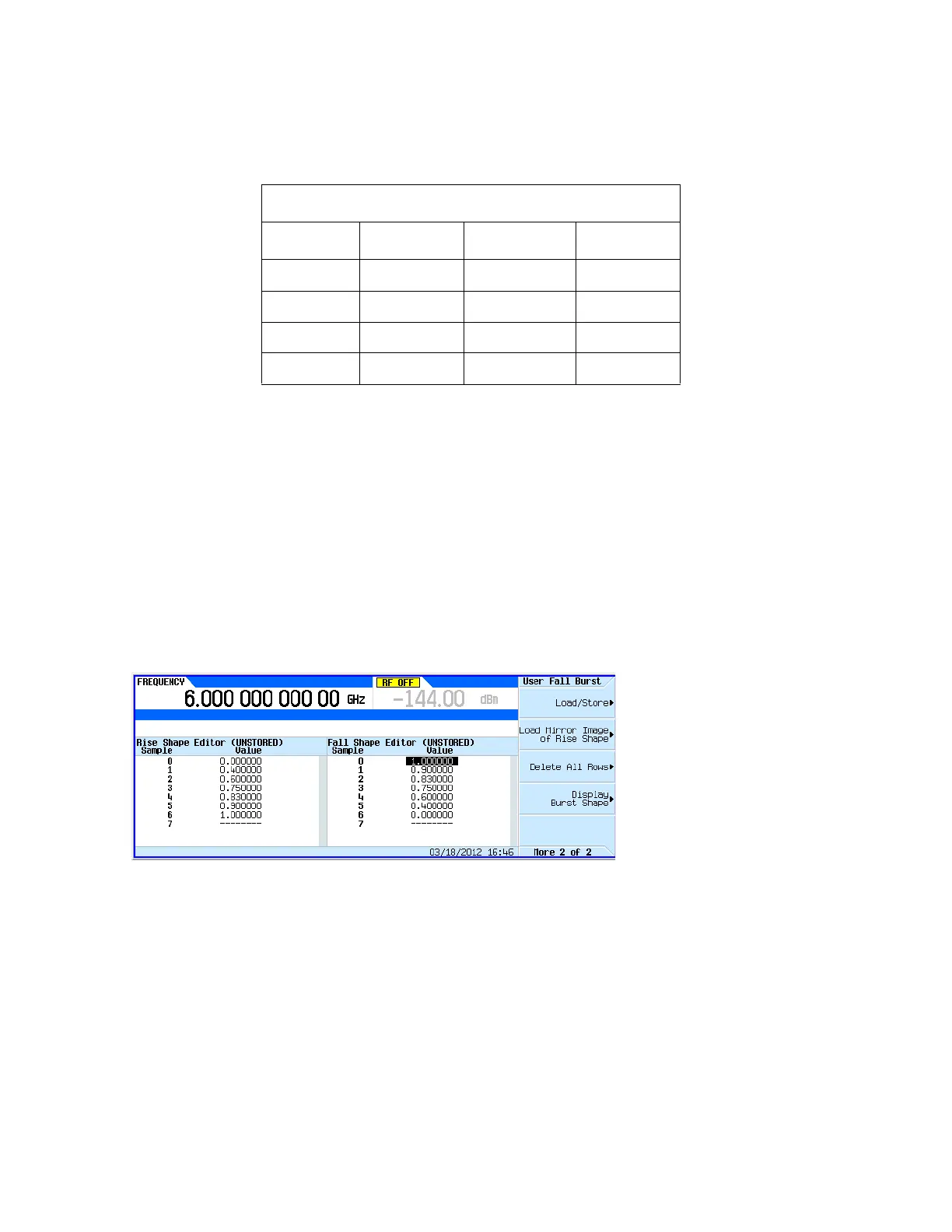

Figure 9-15 Mirror Image of Rise Shape

Rise Shape Editor

Sample Value Sample Value

0 0.000000 4 0.830000

1 0.400000 5 0.900000

2 0.600000 6 1.000000

3 0.750000
