Keysight EXG and MXG X-Series Signal Generators User’s Guide 199
Basic Digital Operation for N5172B/82B with Options 653/655/656/657
Clipping a Waveform
Configuring Circular Clipping
Use this example to configure circular clipping and observe its affect on the peak–to–average
power ratio of a waveform. Circular clipping clips the composite I/Q data (I and Q data are clipped
equally). For more information about circular clipping, refer to “How Clipping Reduces Peak–to–
Average Power and Spectral Regrowth” on page 196.
Copy a Waveform File
1. Display the signal generator’s files: Press File > Catalog Type > More > Volatile Segments.
2. Highlight the waveform RAMP_TEST_WFM.
3. Press Copy File.
4. Name the copy (in this example, the name is MY_TEST_CIRC) and press Enter.
Apply Circular Clipping to the Copied Waveform File
1. Open the DUAL ARB Waveform Utilities menu: Press Mode > Dual ARB > More > Waveform
Utilities.
2. In the list of files, highlight the copied file (in this example, MY_TEST_CIRC).

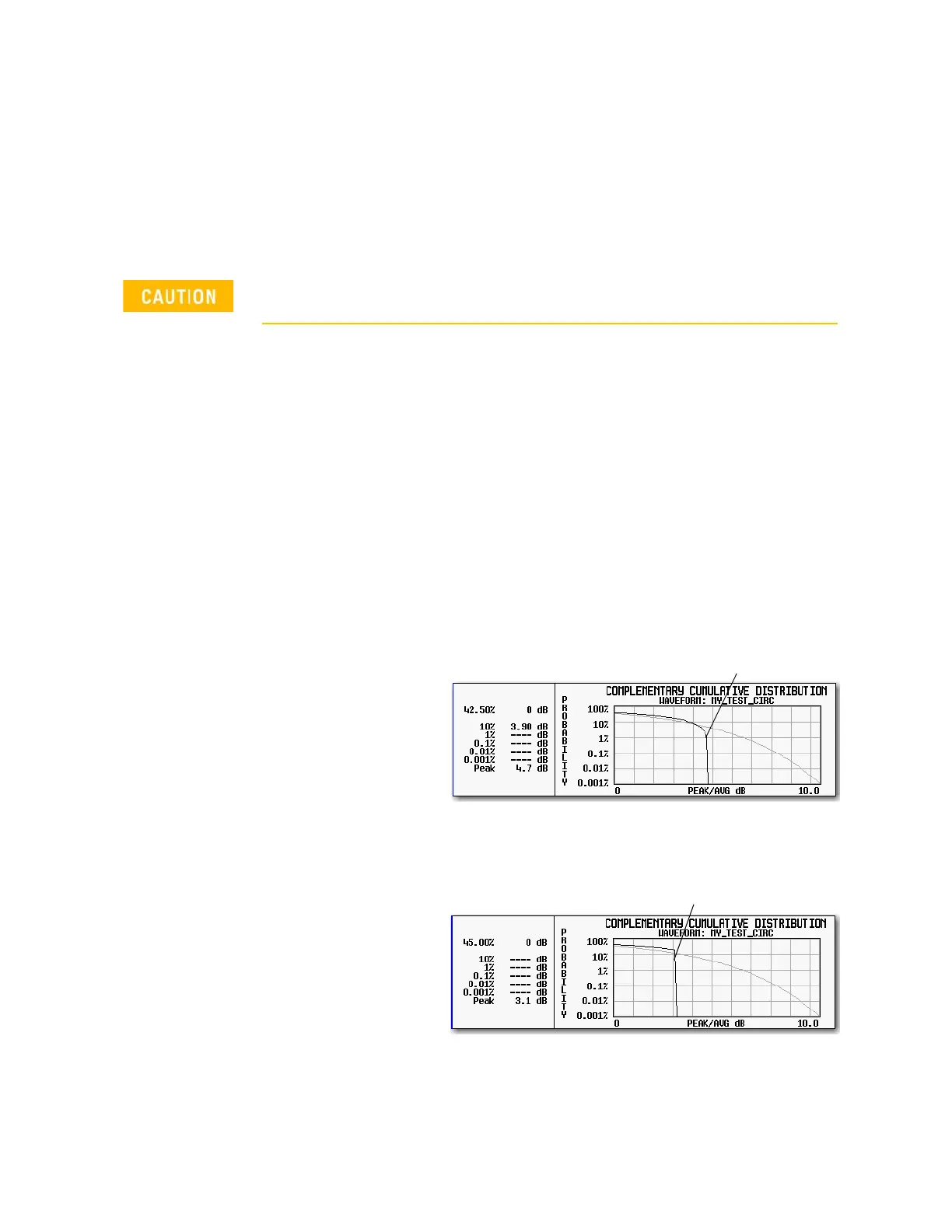

3. Create the CCDF plot: Press Plot CCDF.
4. Observe the shape and position of the
waveform’s curve (the dark line in the
example at right).
5. Activate circular clipping: Press Return >
Clipping > Clipping Type until |I+jQ|
highlights.
6. Set circular clipping to 80%:
Press Clip |I+jQ| To > 80 > %.
7. Apply 80% clipping to the I and Q data: Press Apply to Waveform.
8. Create the CCDF plot (see the example
at right): Press Plot CCDF.
9. Observe the waveform’s curve after
clipping.
Note the reduction in peak–to–average
power relative to the previous plot.
Clipping is non–reversible and cumulative. Save a copy of the waveform
file before you apply clipping.
Example waveform curve before clipping
Example waveform curve after circular clipping
