Keysight EXG and MXG X-Series Signal Generators User’s Guide 245

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Using Real-Time Applications Softkeys

The Keysight X-Series signal generators provide access to several real-time applications for

signal creation.

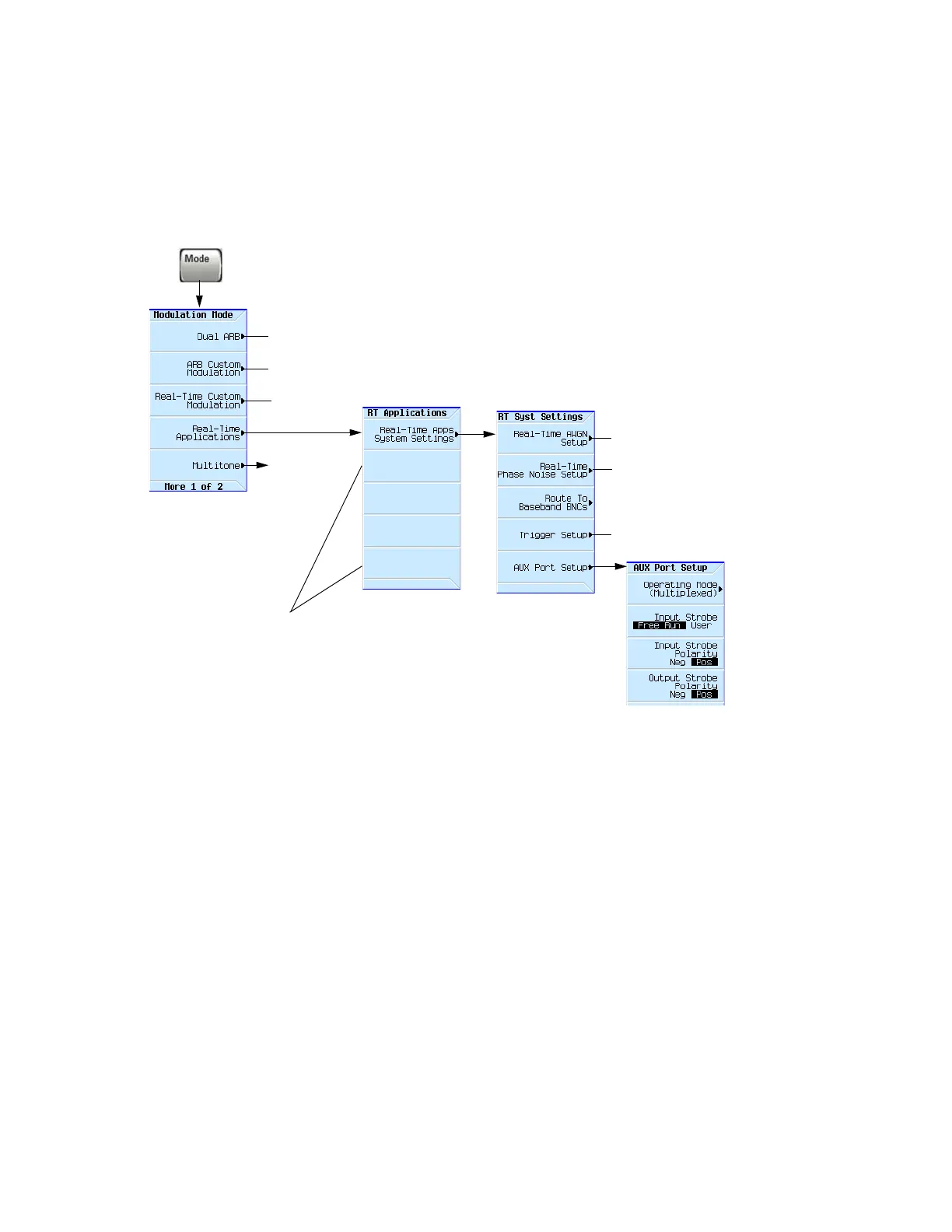

Figure 8-32 Real-Time Applications Softkeys

page154

For details on each key, use key help as described on page56.

page311

page256

Licensed Signal Studio applications are displayed here.

Refer to www.keysight.com/find/signalstudio.

page330

page332

page185
