256 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Using ARB Custom Modulation Softkeys
Using ARB Custom Modulation Softkeys
When creating custom modulation, the signal generator offers two modes of operation:
— ARB Custom Modulation mode
—Real-Time Custom Modulation mode
Both modes of operation are used to build complex, digitally modulated signals that simulate
communication standards with the flexibility to modify existing digital formats, define or create
digitally modulated signals, and add signal impairments.

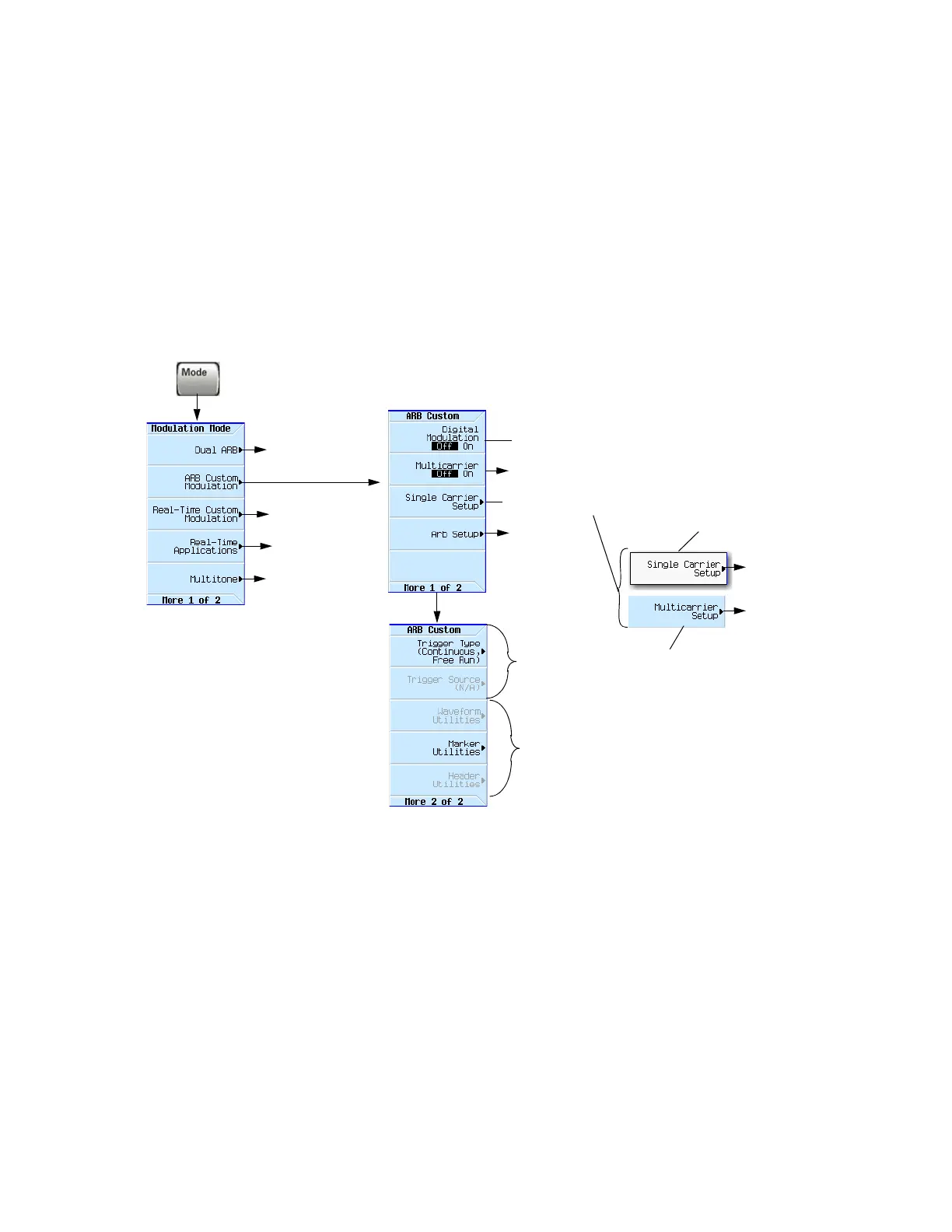

Figure 9-1 ARB Custom Modulation Softkeys
page258
page207
page154
page288
This softkey changes,
depending on the selected
mode of modulation.
Available only when
Multicarrier is On.
Available only when
Multicarrier is Off.
page288
Enables the current ARB custom
modulation settings.
For details on each key, use key help as described on page56.
page185
page154
page311
page262
page245
