226 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Modifying a FIR Filter Using the FIR Table Editor

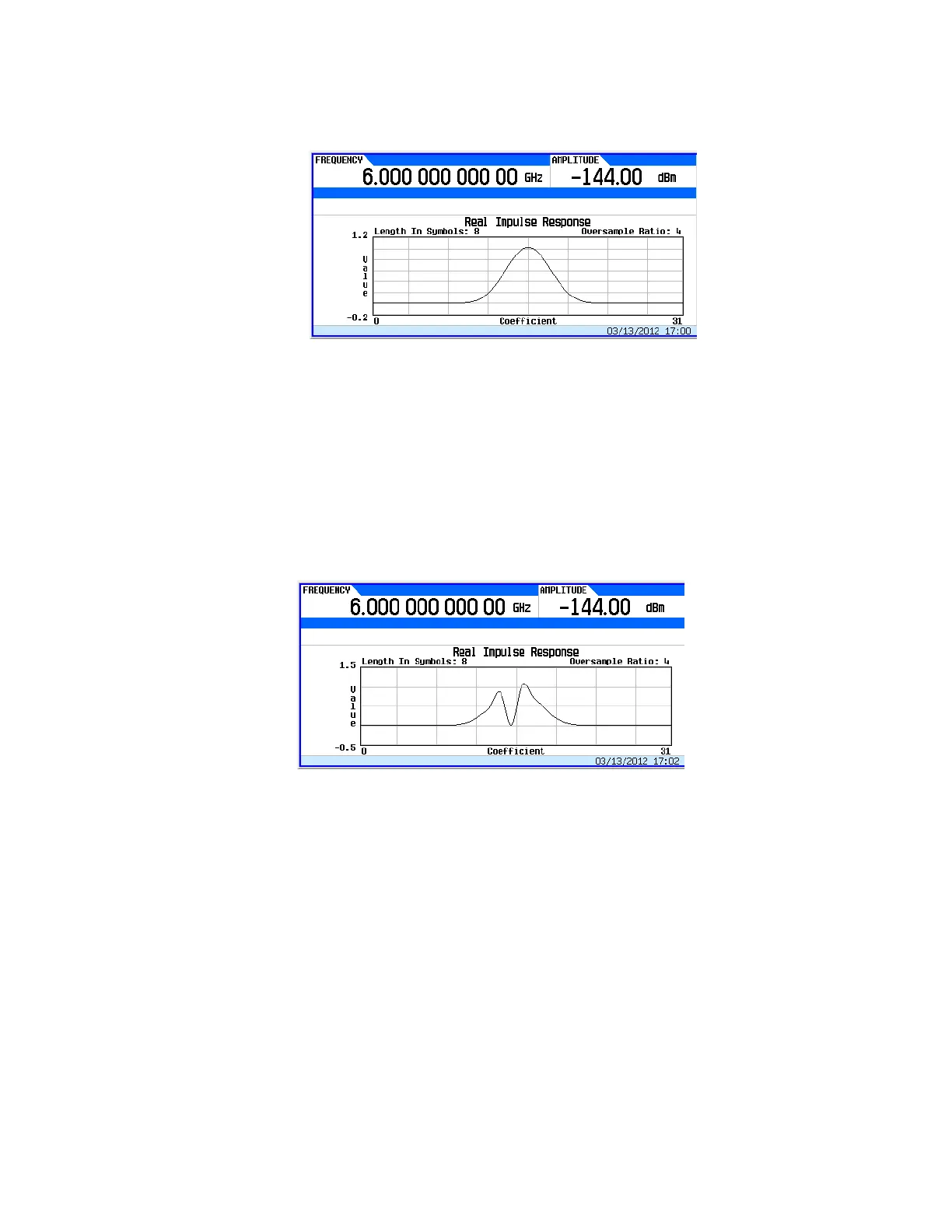

Figure 8-24

7. Press Return.

Modifying the Coefficients

1. Using the front panel arrow keys, highlight coefficient 15.

2. Press 0 > Enter.

3. Press Display Impulse Response.

Figure 8-25

Refer to Figure 8-25. The graphic display can provide a useful troubleshooting tool (in this

case, it indicates that a coefficient value is missing, resulting in an improper Gaussian

response).

4. Press Return.

5. Highlight coefficient 15.

6. Press 1 > Enter.

For details on each key, use key

help as described on page56.

For details on each key, use key

help as described on page56.
