Keysight EXG and MXG X-Series Signal Generators User’s Guide 463

Troubleshooting

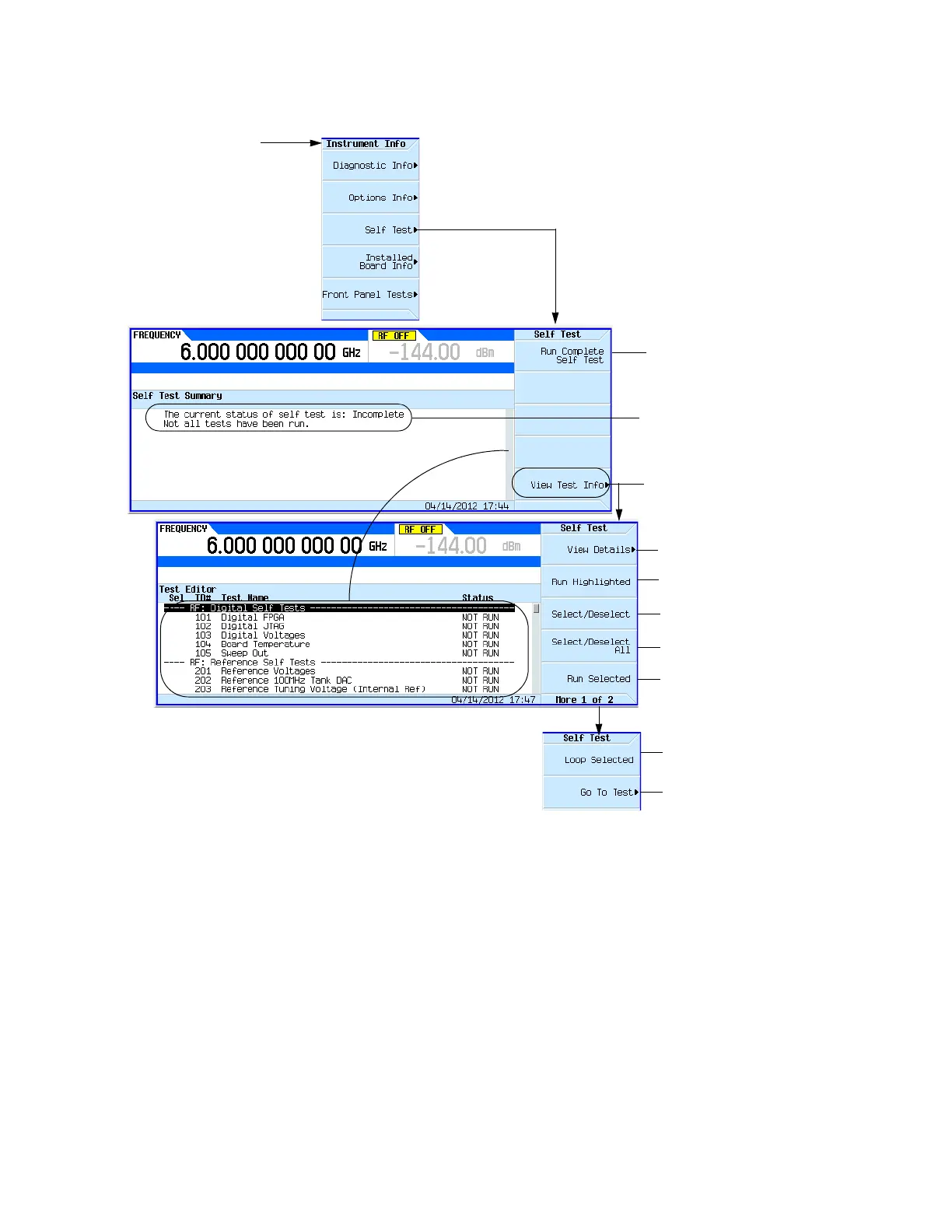

Self Test Overview

For details on each key, use key help

as described on page56.

Automatically runs diagnostic

self test.

Self Test Summary displays

current status.

Opens a table in which user

selects specific tests and view

details in Test Editor display.

Utility > Instrument Info

Displays detailed

information of highlighted

test. Refer to page56

Executes highlighted

operation.

Executes all selected

operations.

Selects or deselects

highlighted operation.

Selects or deselects all

operations.

Runs a loop of selected

tests until a failure occurs.

Opens the Go To Menu.

Adds navigation keys to

the self test menu.

Main Page

Default Chapter5
