48 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options for All Models

How to Set Remote Operation Preferences

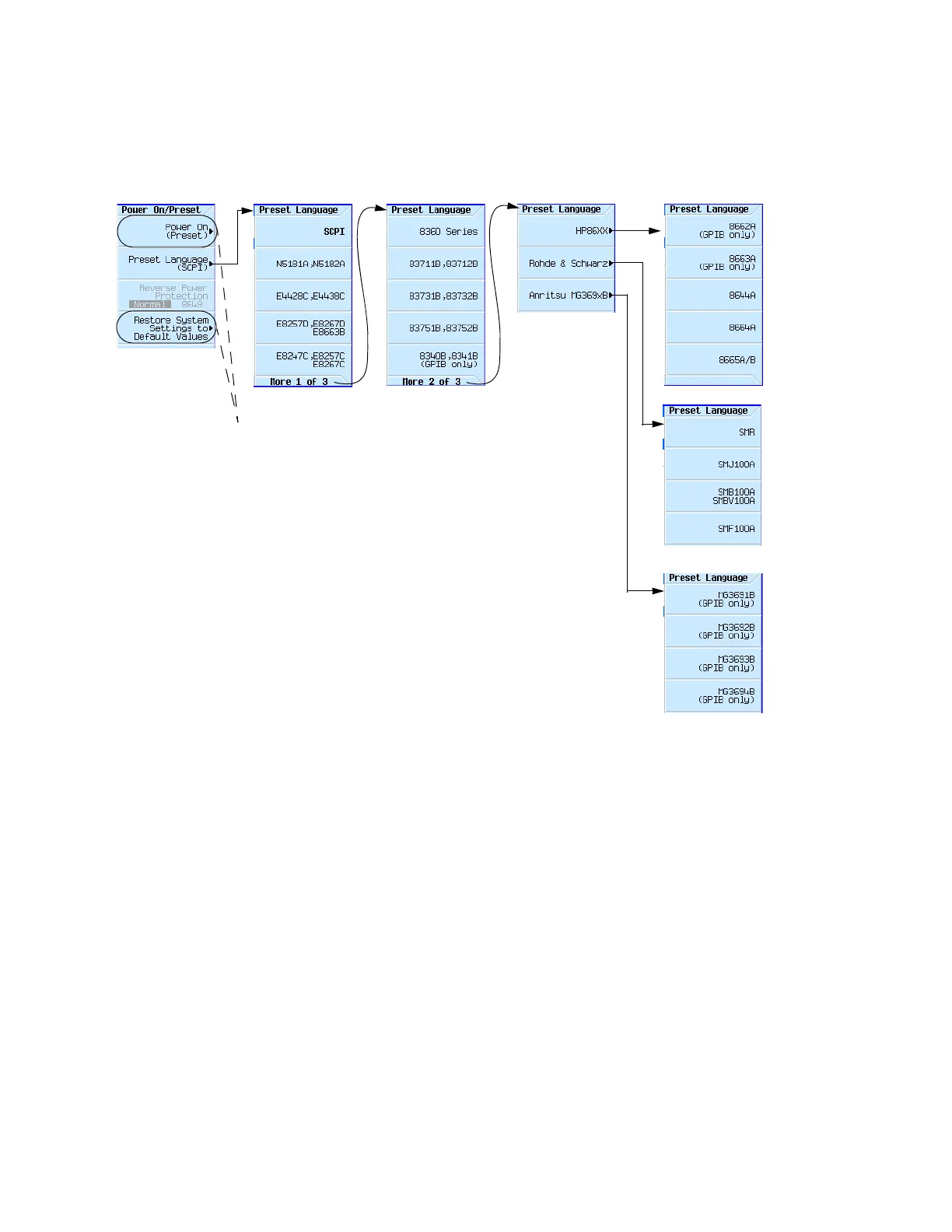

Figure 2-5 N5173B/83B Microwave Analog Models

Utility > Power On/Preset

For details on each key, use key help as described on page56.

Select the desired Preset Language.

page40

Refer to the SCPI Command Reference.
