Keysight Technologies N5991

38 Keysight N5991 HDMI Frame Generator User Guide
3 Using the Software
Tools
The options in the Tools menu are:
•Color Coding
• SCDC Controller
• FRL Link Training
Color Coding
This menu provides a tool for converting color code data and is shown in
Figure 22.

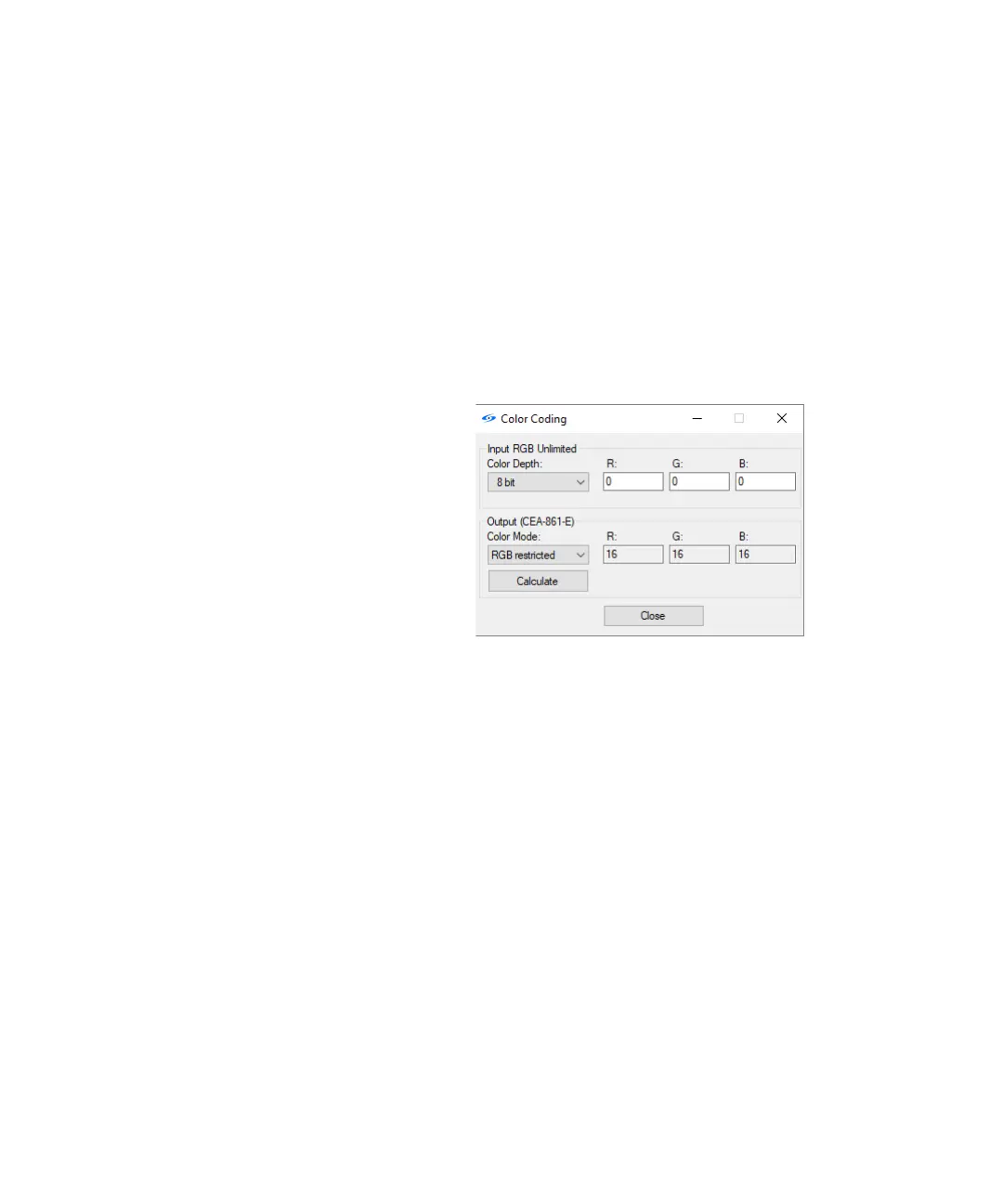

Figure 22 Color Coding Conversion tool
This tool enables the RGB Unlimited color mode with different color
depths to be converted to several output color modes, such as RGB
restricted and YCbCr ITU-R 601.
