1Getting Started
16 U2000 Series Operating and Service Guide
Verifying Your Connected Power Sensor
1 To verify your connected power sensor, go to Start > All Programs >
Keysight IO Libraries Suite > Keysight Connection Expert to launch Keysight
Connection Expert.
2 Your connected power sensor will be detected and shown on the
Instrument I/O on this PC panel as shown in the following figure.

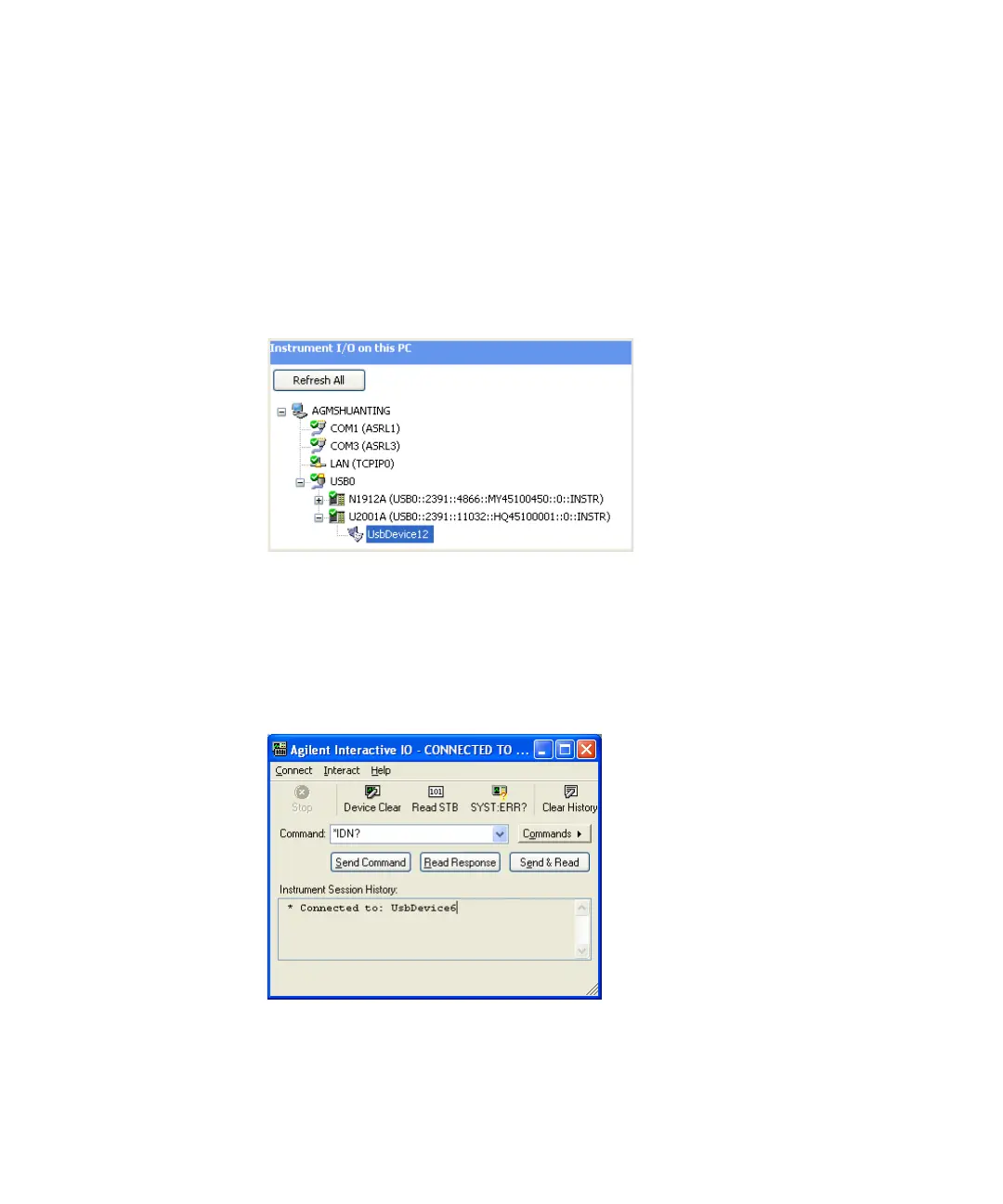

Figure 1-9 Keysight Connection Expert with a list of instrument I/O on the PC
3 Select the U2000 USB sensor on the list of USB device connected to the
PC and right- click. A context menu will appear and select Send Command
To T h is I n str u men t and the Keysight Interactive IO dialog box will appear
as shown below.
Figure 1-10 Keysight Interactive IO dialog box
